Trailer lights are an essential safety feature for any vehicle towing a trailer. Properly functioning lights allow other drivers to see your vehicle in low light conditions and signal your intentions on the road. Understanding how to wire trailer lights correctly is crucial to ensure safe towing. In this article, we will discuss the wiring diagram of trailer lights and how to properly connect them to your vehicle.

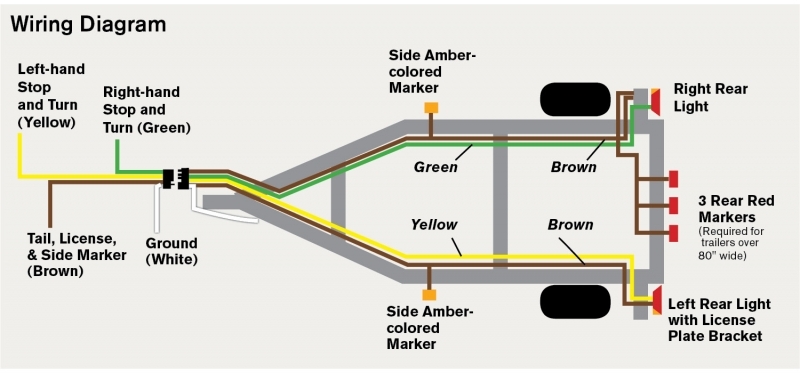

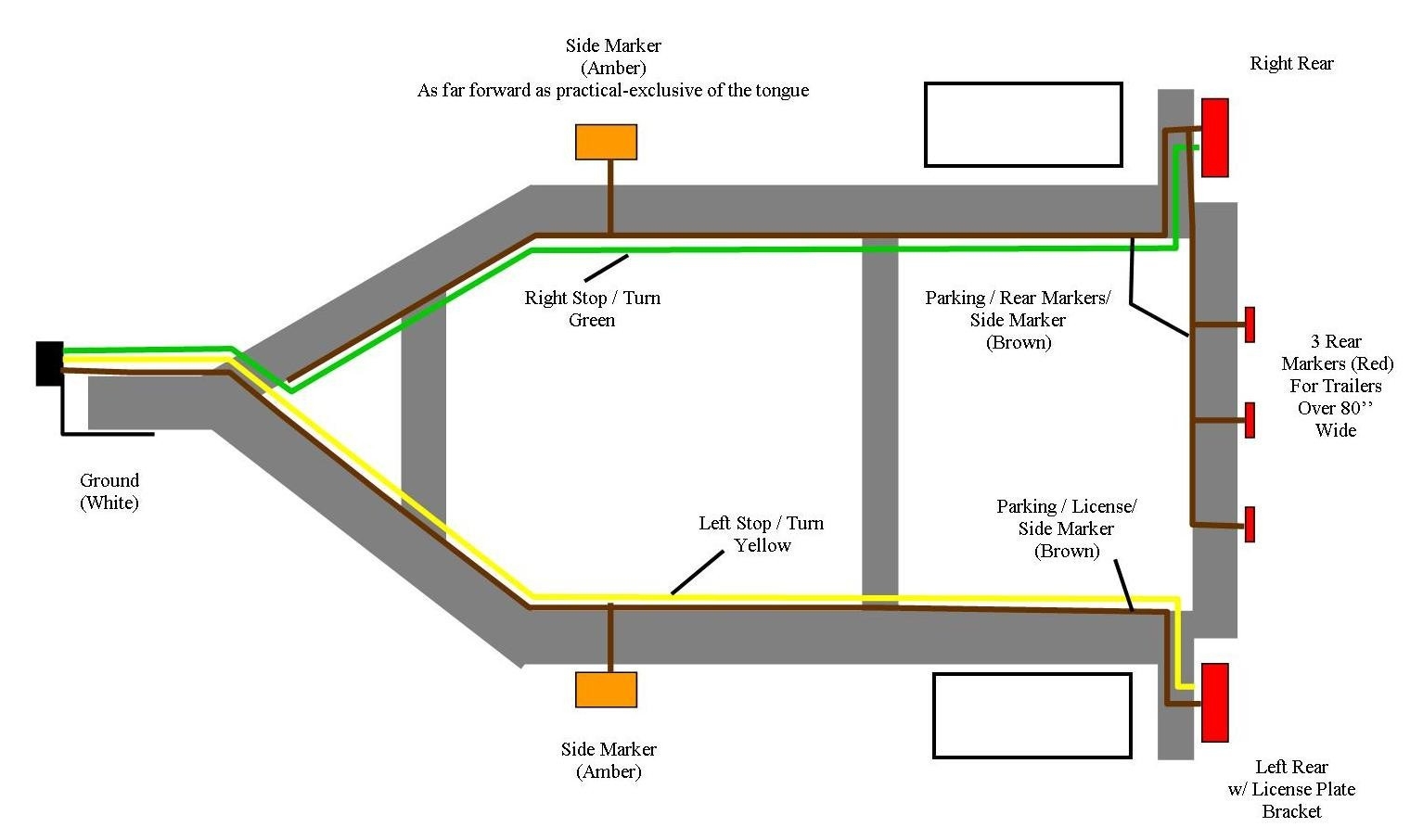

When it comes to wiring trailer lights, it is important to follow a specific diagram to ensure proper functionality. The wiring diagram typically consists of color-coded wires that correspond to specific functions such as brake lights, turn signals, and running lights. By following the diagram, you can easily connect the trailer lights to your vehicle’s electrical system.
Ifor Williams Trailer Wiring Diagram Wiring Ifor Etrailer Wiring (www.wiringdiagramid.com)

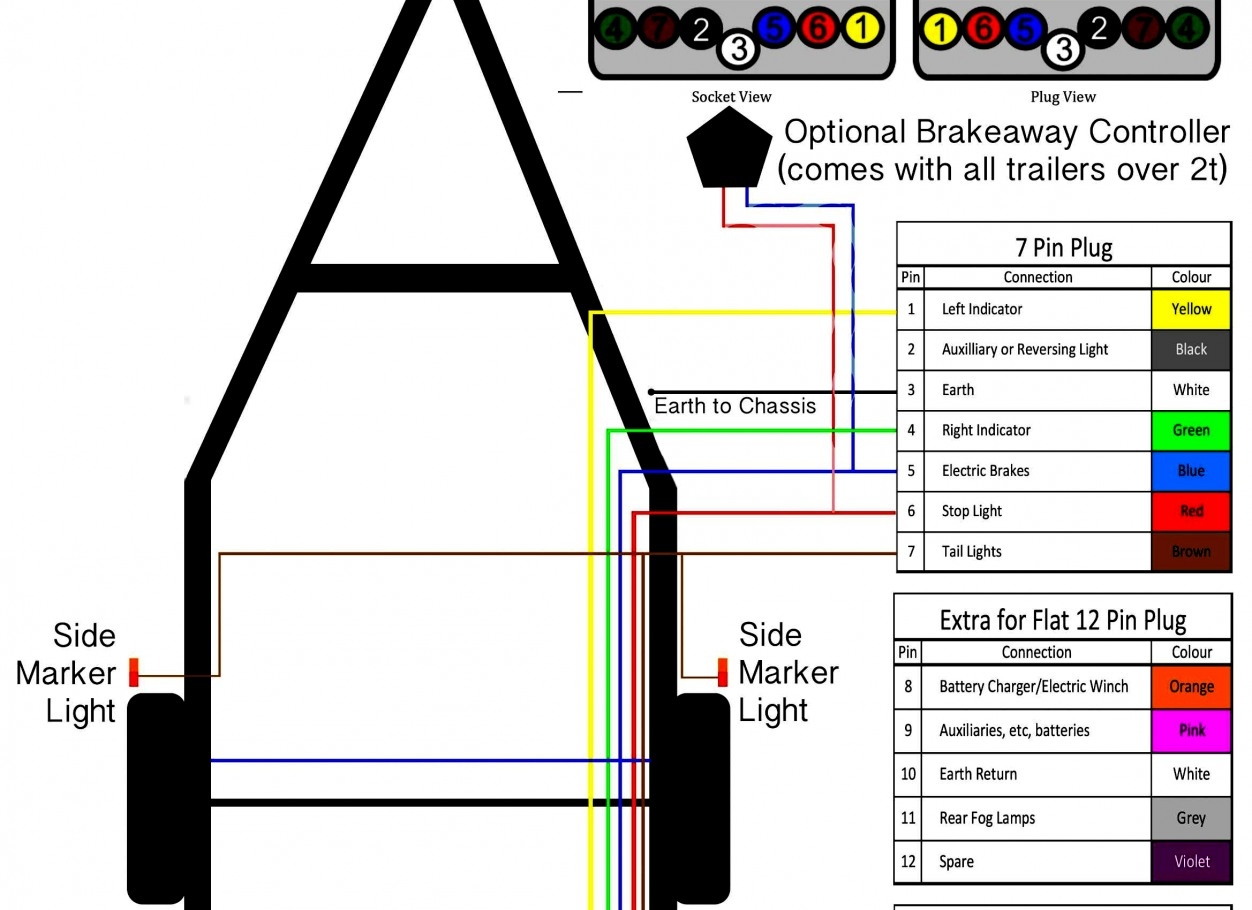

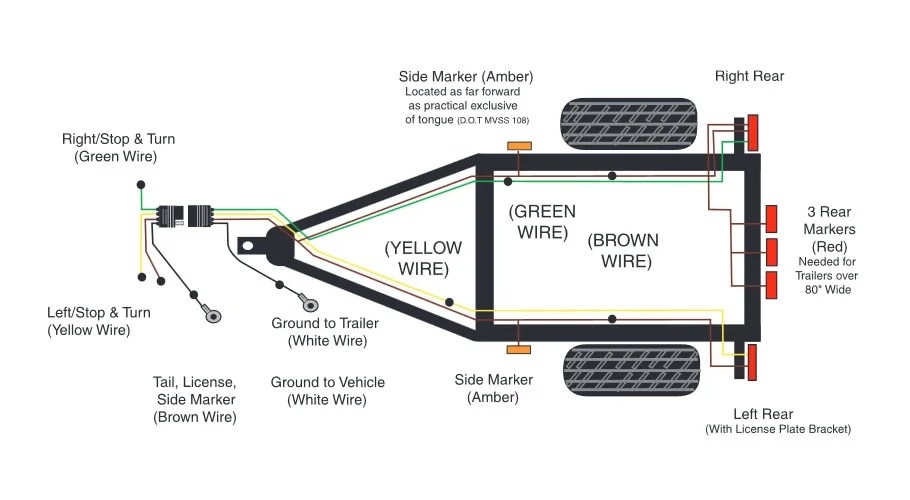

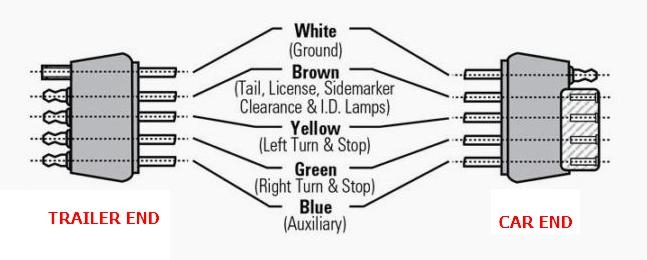

One of the most common wiring diagrams for trailer lights is the 7-way trailer plug diagram. This diagram includes seven wires that are used for different functions: Ground, Tail Lights, Brake Lights, Left Turn/Stop, Right Turn/Stop, Reverse Lights, and Electric Brake. By connecting each wire to the corresponding function on both the trailer and vehicle, you can ensure that the lights work properly.
It is essential to use the correct gauge of wire when wiring trailer lights to prevent overheating and potential electrical issues. The gauge of wire required will depend on the size and weight of the trailer, as well as the length of the wire run. Using the wrong gauge of wire can lead to dim or malfunctioning lights, which can be dangerous on the road.
In addition to following the wiring diagram and using the correct gauge of wire, it is important to secure all connections properly to prevent them from coming loose while towing. You can use electrical tape, heat shrink tubing, or wire connectors to ensure that the connections are secure and protected from the elements. Regularly inspecting the wiring for any damage or wear and tear is also crucial to maintain the functionality of the trailer lights.
In conclusion, understanding the wiring diagram of trailer lights is essential for safe towing. By following the diagram, using the correct gauge of wire, and securing all connections properly, you can ensure that your trailer lights work effectively and signal your intentions on the road. Properly functioning trailer lights not only keep you safe but also other drivers on the road.
