Wiring Diagram Of 3 Way Light Switch

Having a basic understanding of the wiring diagram of a 3 way light switch is essential for anyone looking to install or troubleshoot lighting in their home. A 3 way light switch allows you to control a single light fixture from two different locations, making it a convenient and versatile option for many rooms.

By understanding how the wires are connected in a 3 way switch setup, you can easily identify and fix any issues that may arise, such as a malfunctioning switch or a light that won’t turn on. This knowledge can save you time and money by avoiding the need to hire an electrician for simple repairs.

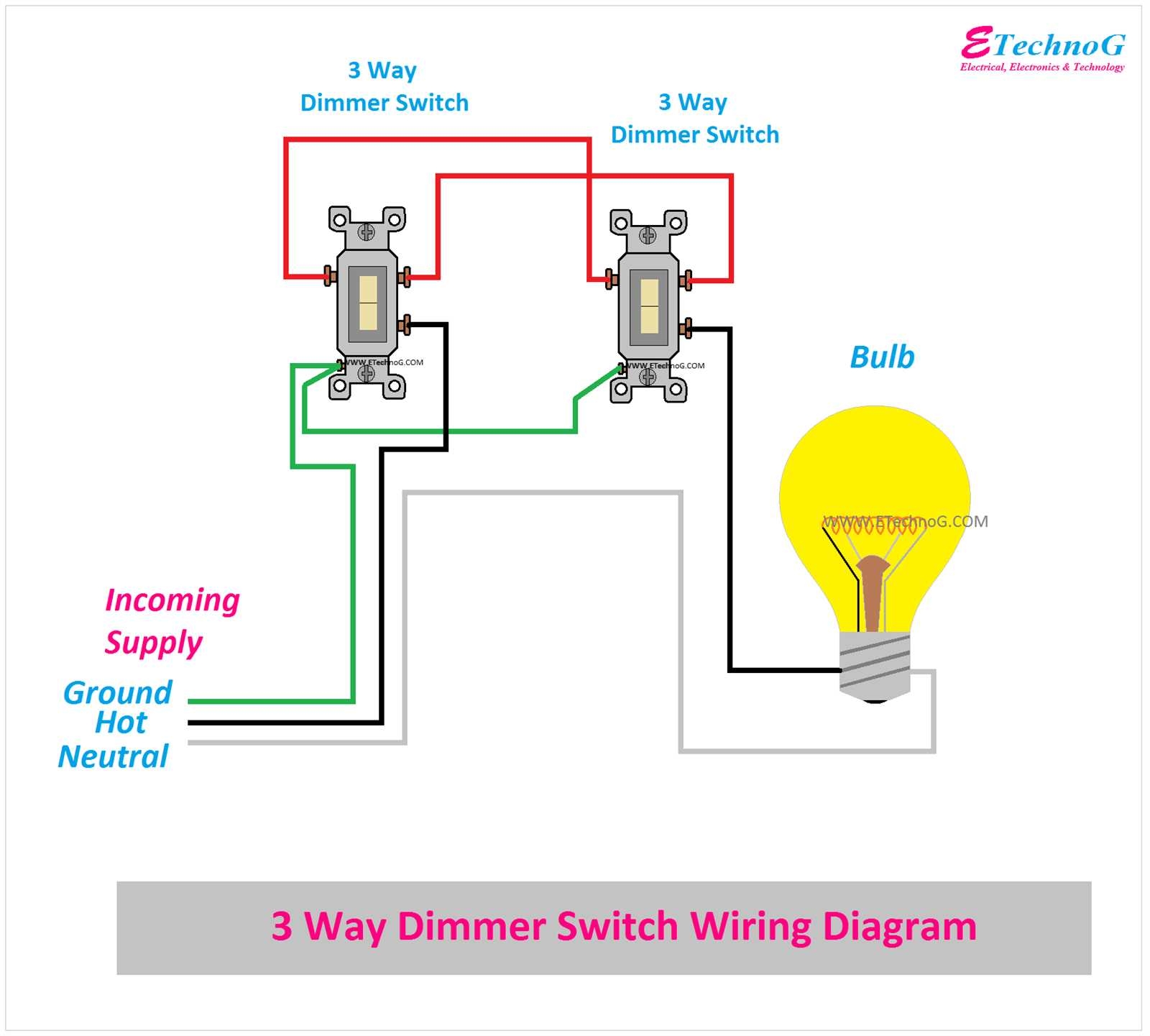

3 Way Electrical Wiring Diagram Guide And Instructions (schempro.com)

The wiring diagram of a 3 way light switch consists of three terminals: one common terminal and two traveler terminals. The common terminal is typically connected to the light fixture, while the traveler terminals are connected to the other switch in the circuit. When one switch is flipped, it sends a signal to the other switch to turn the light on or off.

To wire a 3 way light switch, you will need a basic understanding of electrical wiring and the proper tools. Start by turning off the power to the circuit at the breaker box to avoid any accidents. Then, follow the wiring diagram provided with the switch to connect the wires correctly. It’s important to double-check your connections before turning the power back on to ensure everything is working properly.

If you encounter any problems with your 3 way light switch, such as flickering lights or switches that don’t work, refer back to the wiring diagram to troubleshoot the issue. Common problems can include loose connections, faulty switches, or incorrect wiring. By following the diagram and checking each connection, you can easily identify and fix the problem.

Understanding the wiring diagram of a 3 way light switch can help you successfully install and troubleshoot lighting in your home. By following the proper steps and double-checking your connections, you can ensure that your lights work correctly and safely. If you’re ever unsure about a wiring setup, don’t hesitate to consult a professional electrician for assistance.

Download and Print Wiring Diagram Of 3 Way Light Switch Listed below

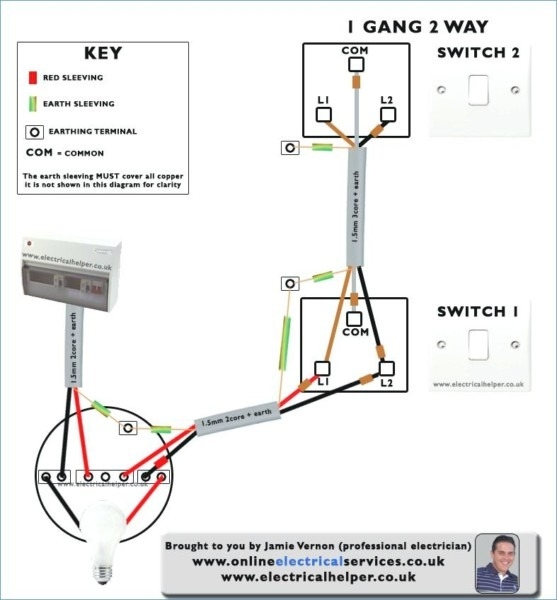

One Way Switch Diagram (www.chanish.org)

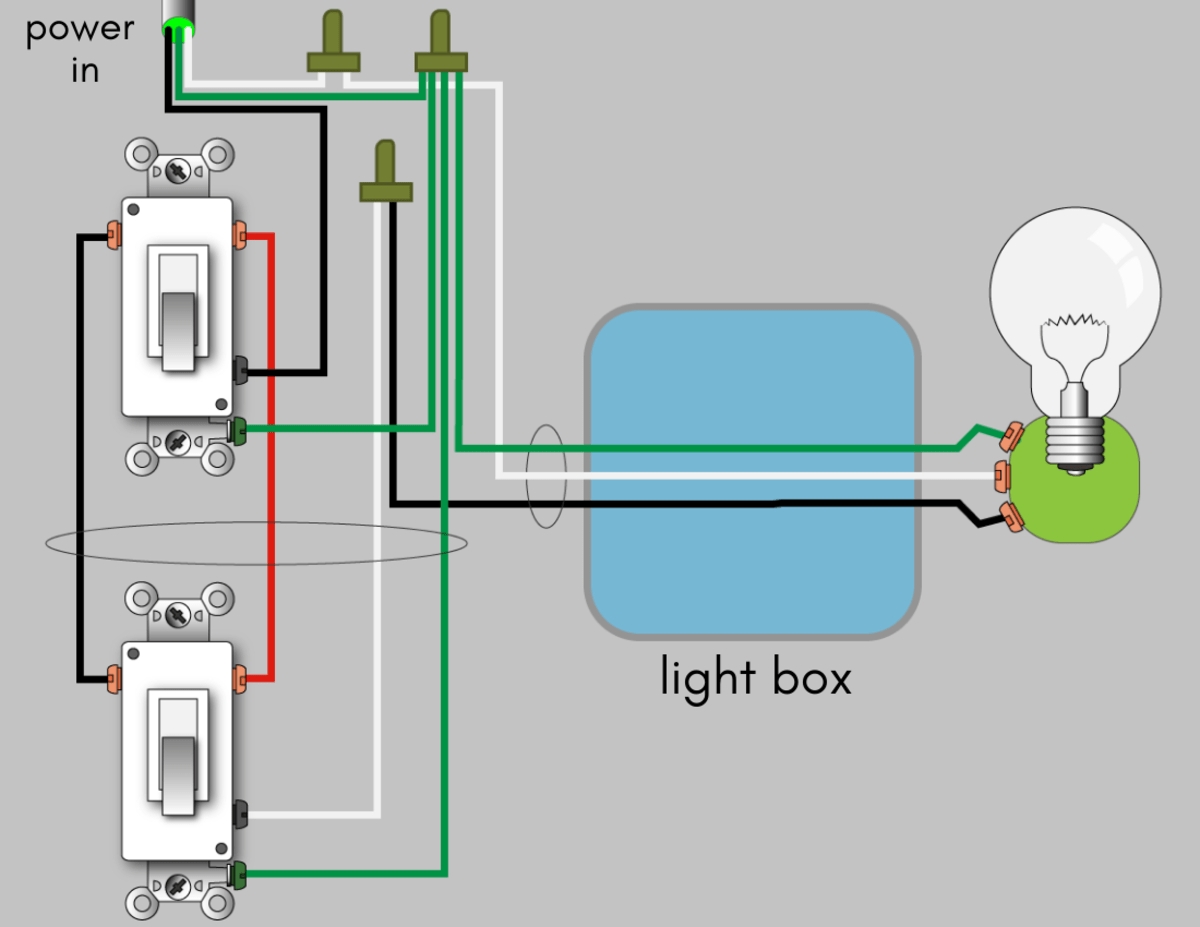

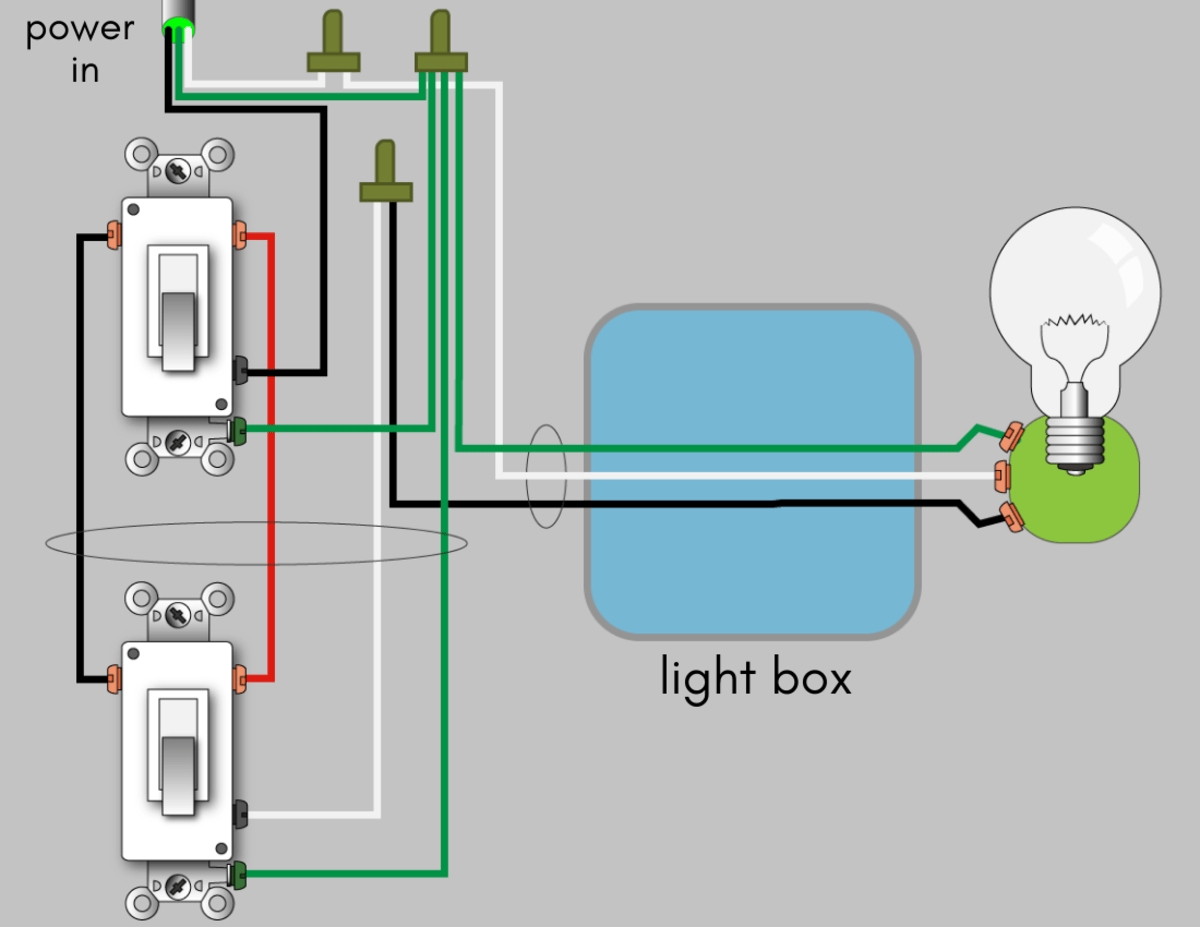

Show Me The Wiring Diagram For A 3 Way Switch (wiringdiagramall.blogspot.com)

3 Way Gang Switch Wiring Diagram Wiring Switch Gang Box Fantastic 3 (www.wiringdiagramid.com)

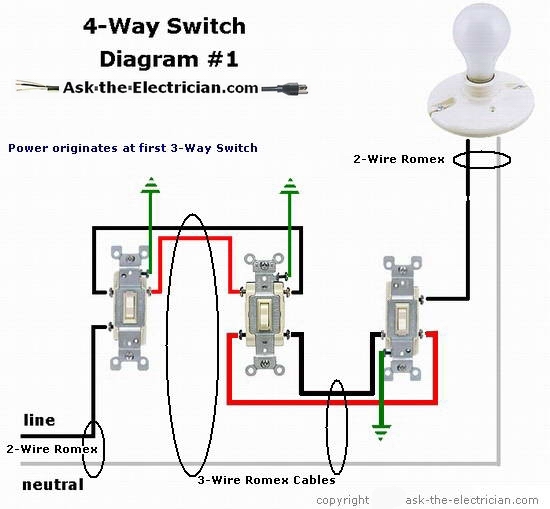

4 Way Switch Wiring Diagram Wiring Diagram (annawiringdiagram.com)

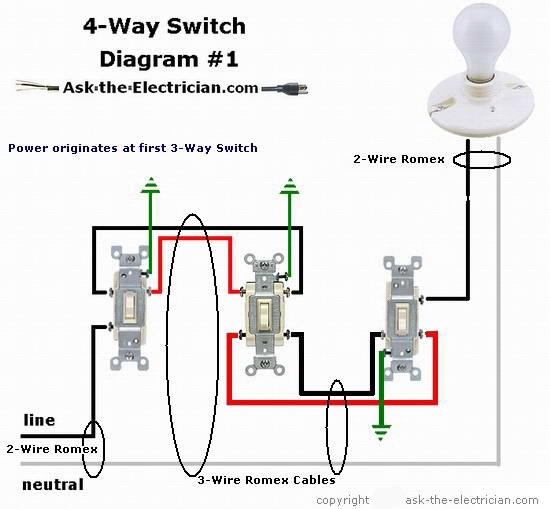

3 Way Switch Wiring Diagram Multiple Lights Power At Light (wiringdiagramall.blogspot.com)
