When it comes to electrical safety in your home, installing Ground Fault Circuit Interrupter (GFCI) outlets is a must. These outlets are designed to protect you from electrical shocks by quickly shutting off power if they detect any imbalance in the flow of electricity. Understanding how to properly wire a GFCI outlet is important for ensuring your safety and the safety of your home.
Before you begin the installation process, make sure to turn off the power to the outlet at the breaker box. It’s always a good idea to double-check that the power is off using a voltage tester to avoid any accidents.

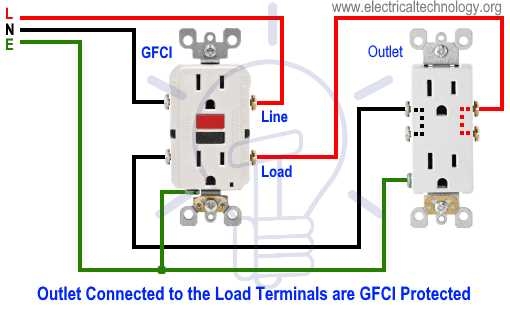

Understanding The GFCI Outlet Internal Wiring Diagram A Step By Step Guide (techschematic.com)

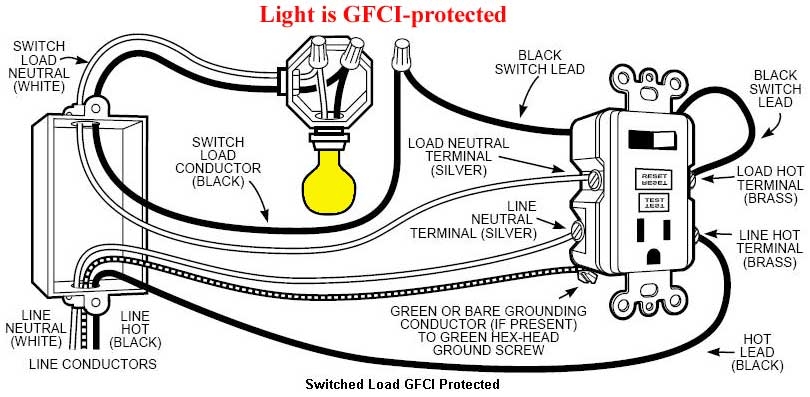

Start by removing the old outlet and disconnecting the wires. You will typically see three wires – a black (hot) wire, a white (neutral) wire, and a green or bare copper (ground) wire. The black wire is connected to the brass-colored screw, the white wire to the silver-colored screw, and the green or bare wire to the green screw.

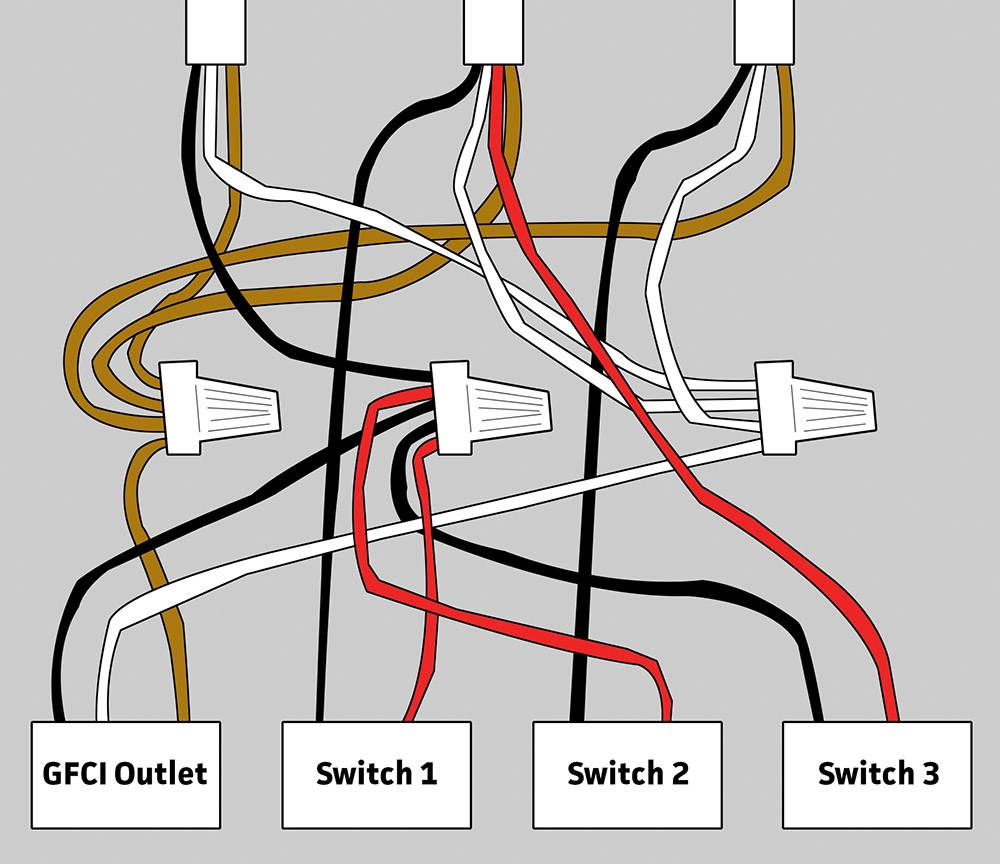

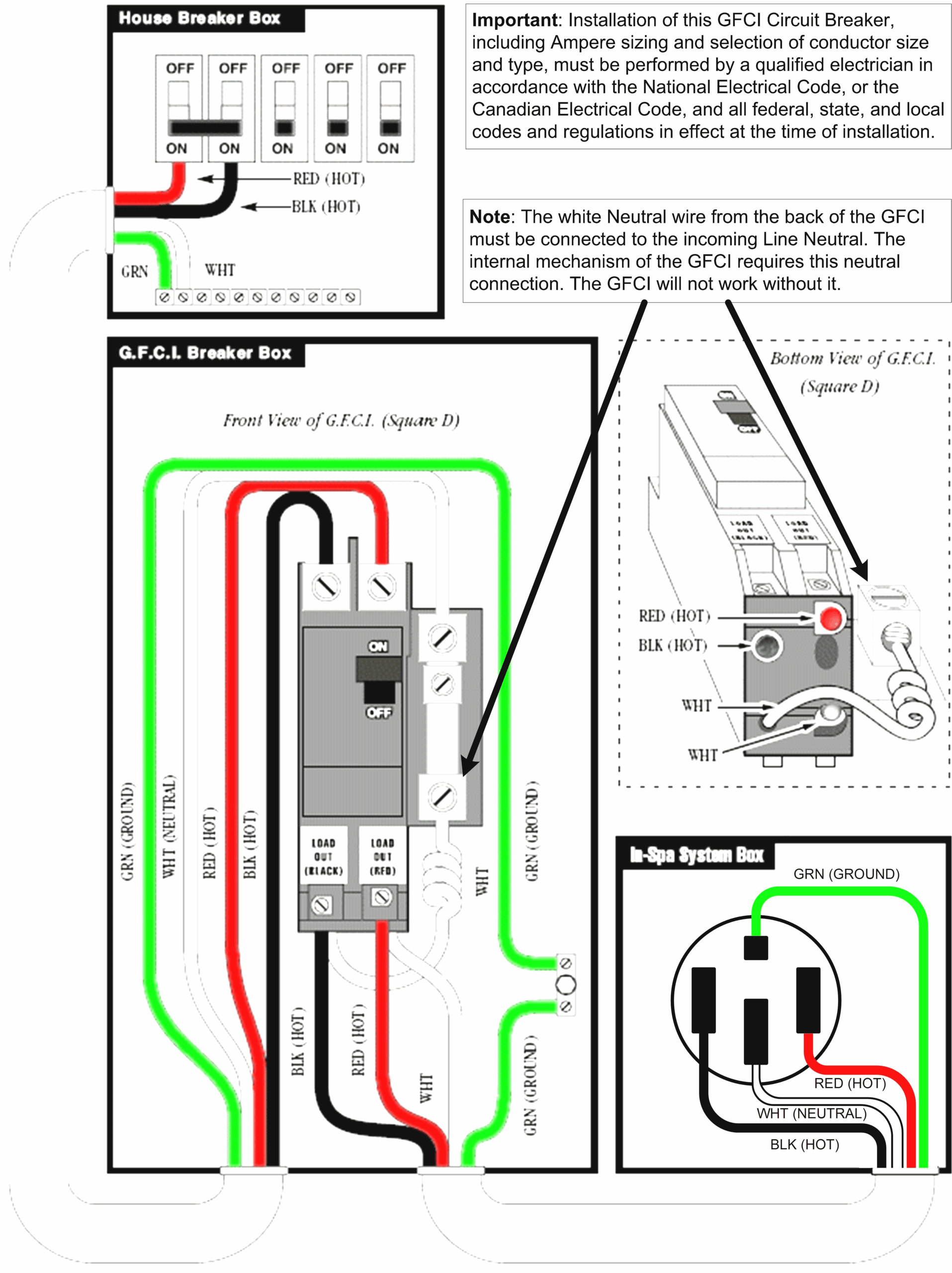

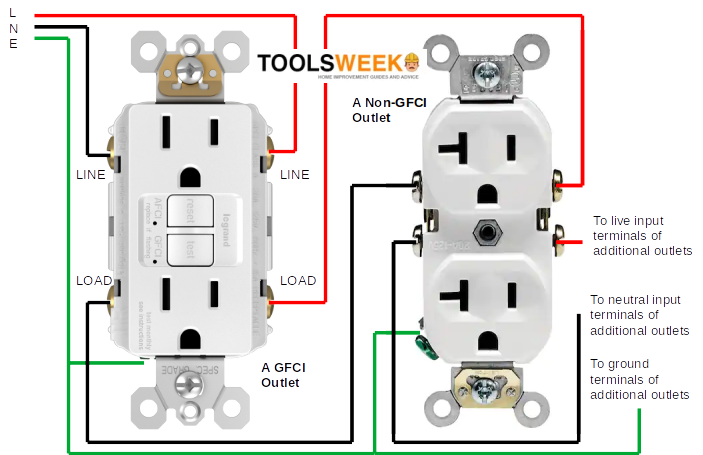

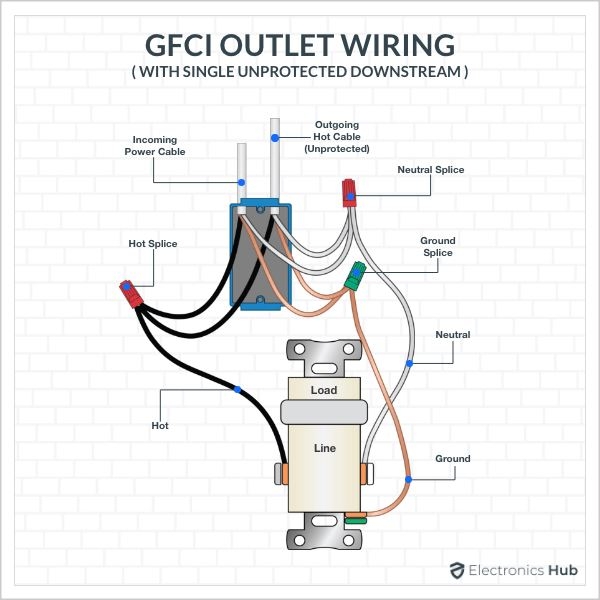

Next, connect the wires to the new GFCI outlet. The black wire goes to the “Line” side of the outlet, the white wire to the “Neutral” side, and the green or bare wire to the “Ground” screw. Make sure to tighten the screws securely to ensure a good connection.
Once all the wires are connected, carefully tuck them back into the electrical box and screw the GFCI outlet into place. Finally, turn the power back on at the breaker box and test the outlet to make sure it is functioning properly.
It’s important to note that GFCI outlets have a “Test” and “Reset” button on them. Periodically testing the outlet by pressing the “Test” button and ensuring it trips and resets properly is crucial for maintaining electrical safety in your home.
By following these simple steps and understanding the wiring diagram for a GFCI outlet, you can ensure that your home is equipped with the necessary safety features to protect you and your loved ones from electrical hazards.
Closing Thoughts
Installing a GFCI outlet is a simple and effective way to enhance the safety of your home’s electrical system. By following the proper wiring diagram and taking the necessary precautions, you can enjoy peace of mind knowing that you are protected from electrical shocks. Remember to always prioritize safety when working with electricity in your home.
