Relays are an essential component in automotive and electrical systems, helping to control high current devices with a low current signal. A 5 pin relay is commonly used for various applications, and understanding its wiring diagram is crucial for proper installation and operation.
Whether you are installing a new accessory in your car or troubleshooting an electrical issue, knowing how to wire a 5 pin relay can save you time and prevent potential problems. With the right knowledge and tools, you can easily set up the relay to work efficiently in your system.

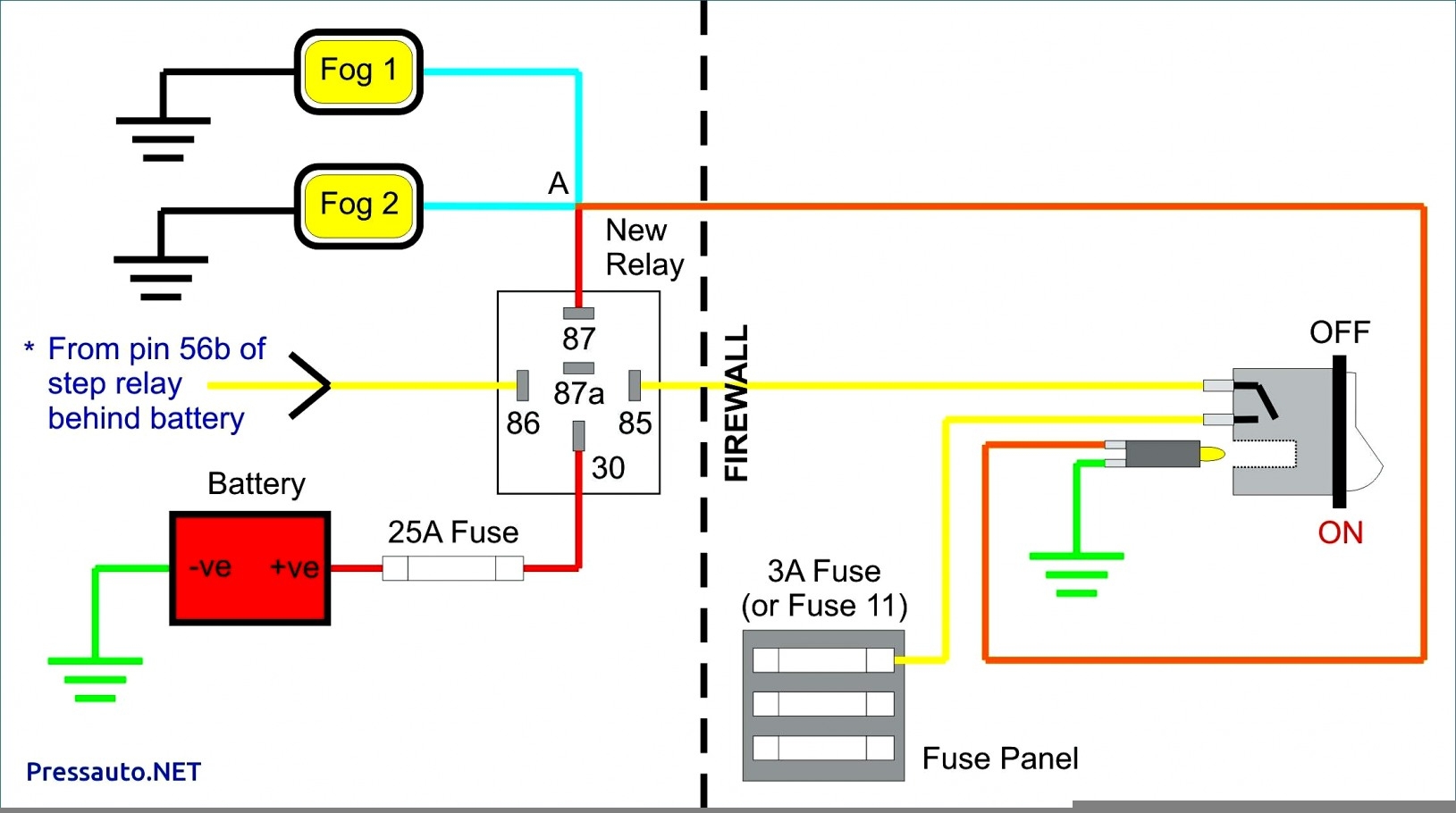

How A 5 Pin Relay Works Youtube 5 Prong Relay Wiring Diagram (2020cadillac.com)

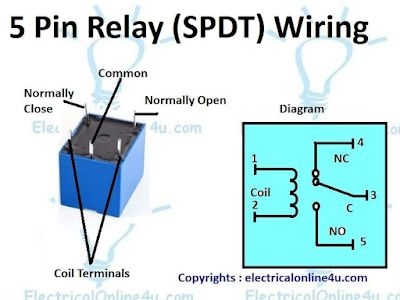

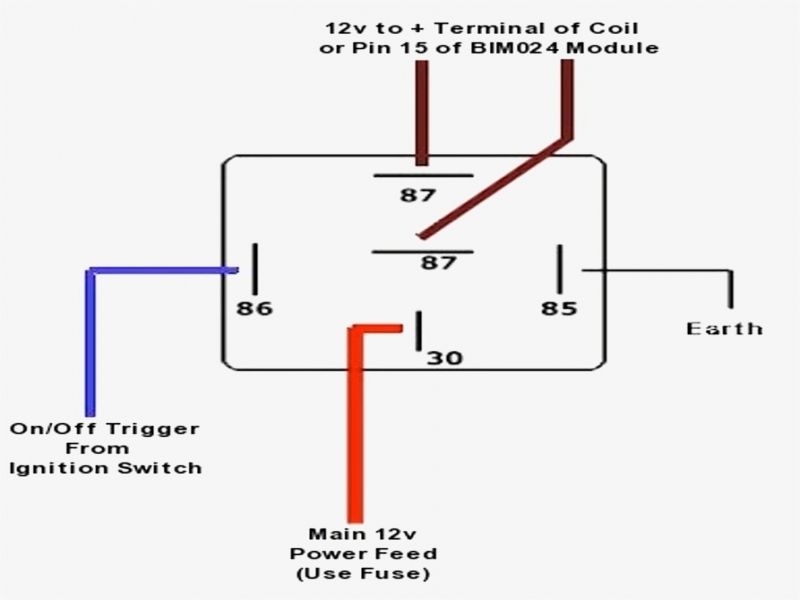

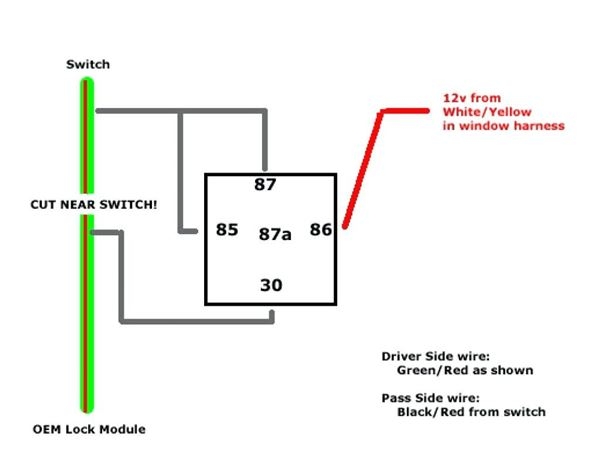

When looking at the wiring diagram for a 5 pin relay, you will typically see five terminals labeled 85, 86, 87, 30, and 87a. Terminal 85 and 86 are for the coil, which creates the magnetic field to actuate the switch. Terminals 87 and 30 are for the main circuit, where 87 is the normally open (NO) contact and 30 is the common terminal. Terminal 87a is the normally closed (NC) contact, which is not always present in every relay configuration.

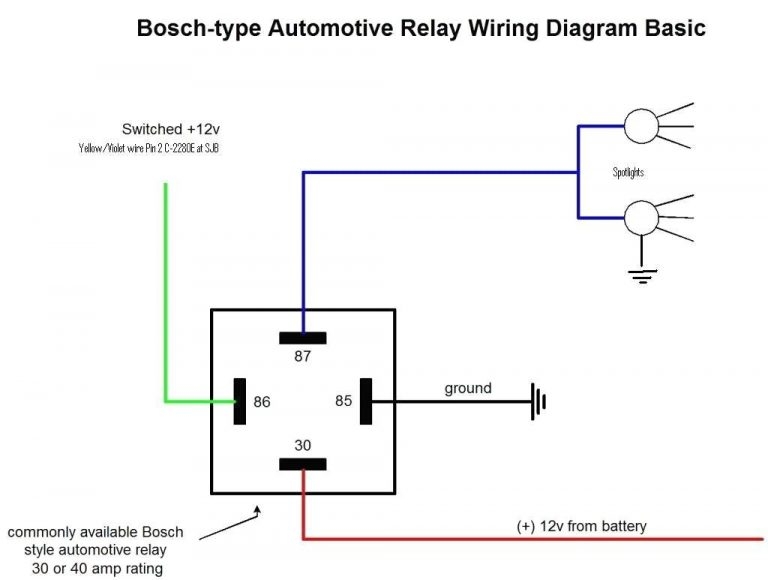

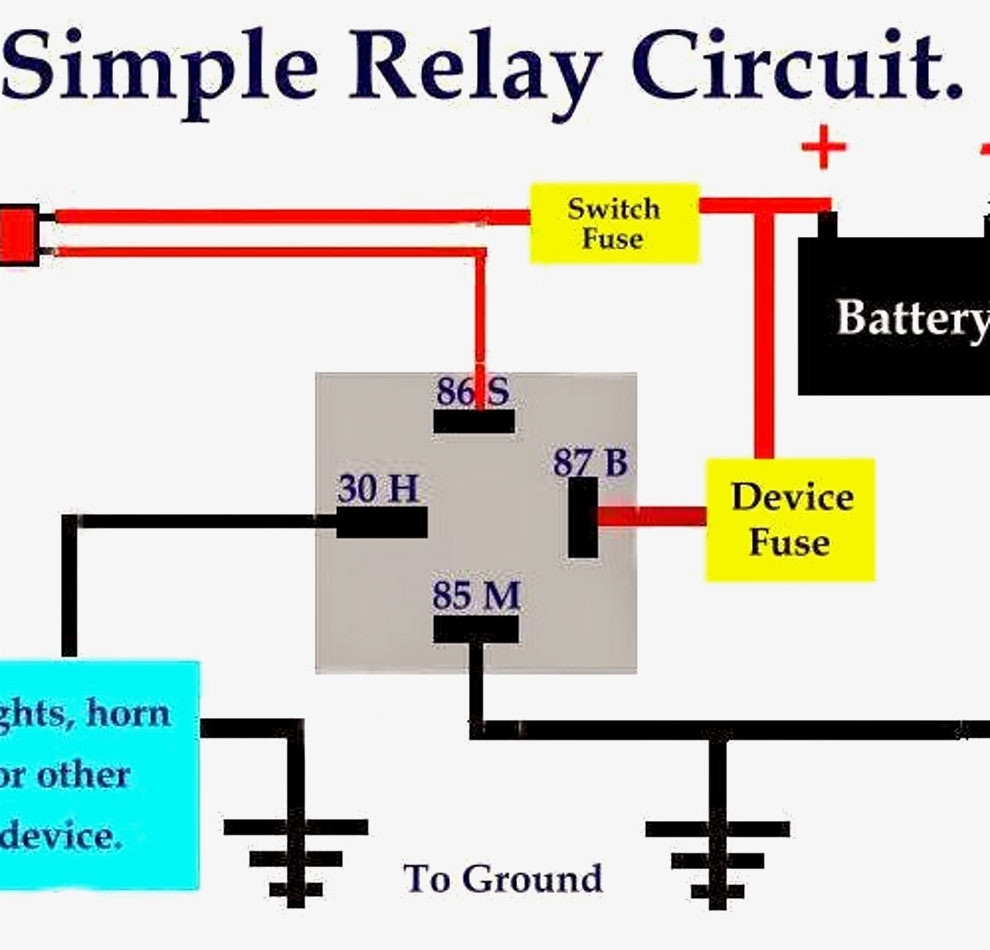

To wire a 5 pin relay, you will need to connect the power source to terminal 30 and the device you want to control to terminal 87. Terminal 86 should be connected to the control signal, while terminal 85 is connected to ground. If you have a relay with terminal 87a, it can be used for a secondary circuit or as a normally closed contact for redundancy.
It is important to follow the wiring diagram specific to your relay model to ensure proper functionality. Incorrect wiring can lead to malfunctioning devices, electrical shorts, or even damage to the relay itself. Always double-check your connections and test the relay before sealing the installation to avoid any issues down the road.
In conclusion, understanding the wiring diagram for a 5 pin relay is essential for successful installation and operation in automotive and electrical systems. By following the correct connections and verifying your setup, you can ensure that the relay functions as intended and provides reliable control for your devices. Remember to consult the manufacturer’s instructions and seek professional help if needed to guarantee a safe and effective wiring process.
