When it comes to towing a trailer, having the right wiring setup is essential for safety and proper functionality. One of the most common types of trailer plugs is the 7 pin plug, which provides connections for various functions such as brake lights, turn signals, and electric brakes. Understanding the wiring diagram for a 7 pin trailer plug is crucial for setting up your trailer correctly.
With a 7 pin trailer plug, each pin is designated for a specific function, making it easy to identify which wire goes where. This standardized wiring setup ensures that trailers can be connected to different vehicles without any confusion. Whether you’re towing a boat, camper, or utility trailer, having a 7 pin plug simplifies the process of hooking up your trailer lights and brakes.
DIAGRAM 7 Pin Wiring Diagram Trailer Plug MYDIAGRAM ONLINE (mydiagram.online)

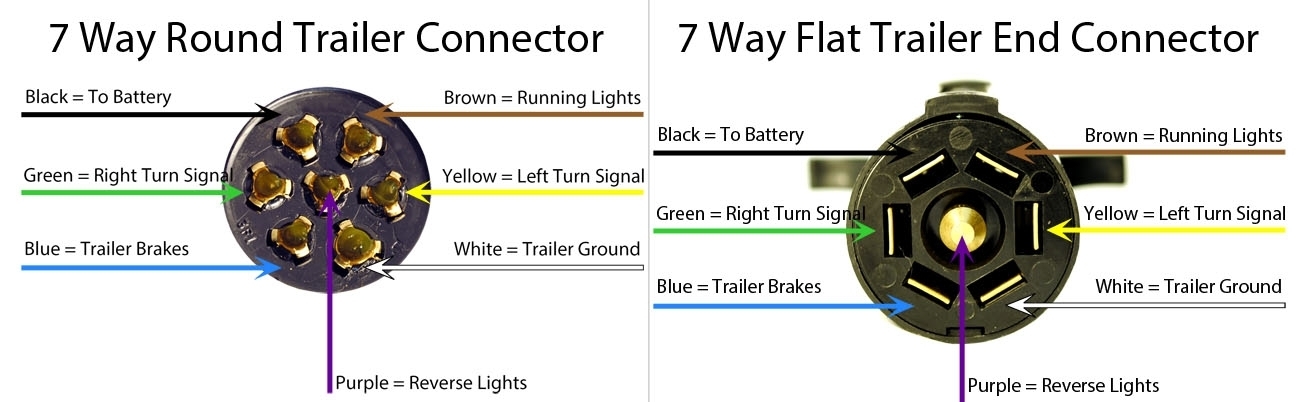

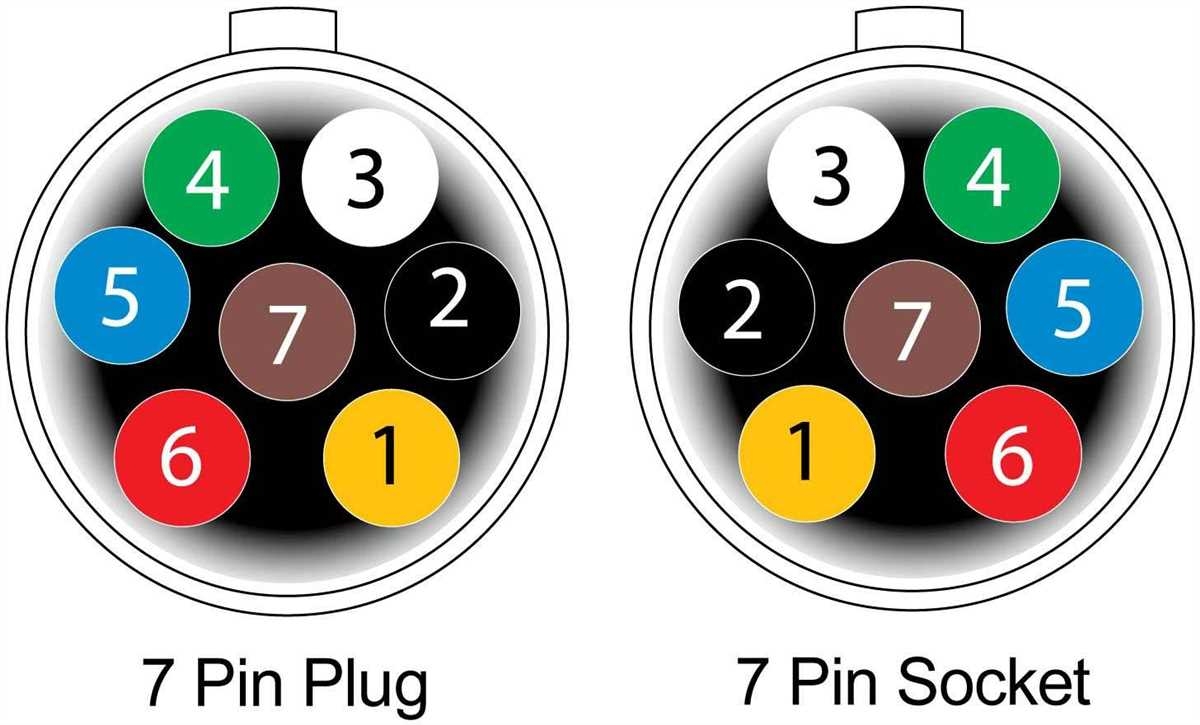

Typically, a 7 pin trailer plug will have the following connections: ground, tail lights, left turn/brake, right turn/brake, electric brakes, backup lights, and a 12V power supply. Each wire is color-coded for easy identification, with standard colors such as white for ground, brown for tail lights, yellow for left turn/brake, green for right turn/brake, blue for electric brakes, and black for backup lights.
When wiring a 7 pin trailer plug, it’s important to follow the diagram provided by the manufacturer to ensure proper connection of each wire. This diagram will show you which color wire corresponds to each function, making it easy to connect the plug to your trailer and vehicle. Additionally, using a wiring harness specifically designed for a 7 pin plug can simplify the installation process and reduce the risk of errors.
Once you have successfully wired your 7 pin trailer plug, be sure to test all functions to ensure everything is working correctly. This includes checking the brake lights, turn signals, electric brakes, and backup lights to ensure they are functioning as they should. Regularly inspecting and maintaining your trailer wiring can help prevent accidents and ensure a safe towing experience.
In conclusion, understanding the wiring diagram for a 7 pin trailer plug is essential for anyone who tows trailers regularly. By following the manufacturer’s instructions and using the correct wiring harness, you can ensure that your trailer lights and brakes are connected properly. With a properly wired 7 pin plug, you can tow your trailer safely and confidently, knowing that all functions are working as they should.
