When it comes to electrical safety in your home, installing Ground Fault Circuit Interrupter (GFCI) outlets is crucial. These outlets are designed to protect you from electric shocks by quickly shutting off power when they detect any imbalance in the electrical current. Wiring a GFCI outlet may seem intimidating, but with the right diagram and some basic knowledge, you can easily do it yourself.
Before you begin, make sure to turn off the power to the outlet you will be working on at the circuit breaker. It’s also important to test the outlet with a voltage tester to ensure that there is no electricity running through it. Once you have confirmed it is safe to proceed, gather the necessary tools and materials, including a GFCI outlet, screwdriver, wire stripper, and electrical tape.

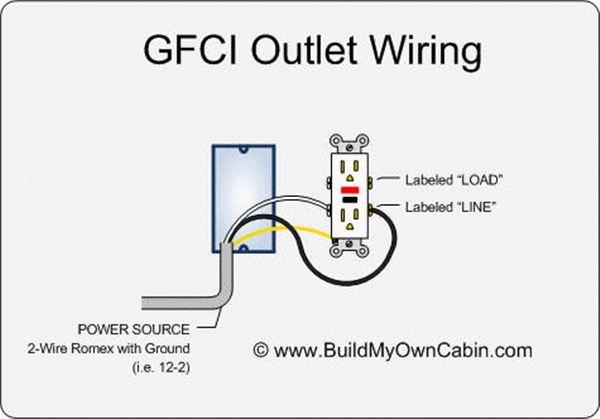

Wiring Diagram For Gfci (axiom-northwest.com)

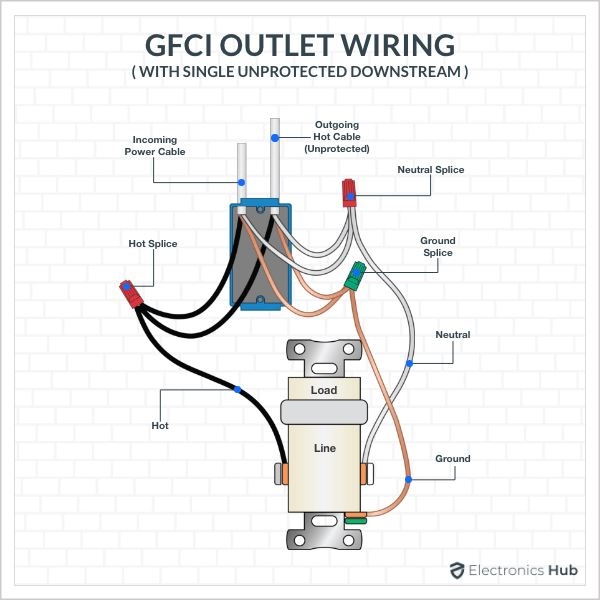

Start by removing the old outlet from the electrical box, making note of how the wires are connected. You will typically see a black (hot) wire, a white (neutral) wire, and a bare copper (ground) wire. The GFCI outlet will have line and load terminals, with the line terminals being where the power source is connected and the load terminals being where additional outlets are connected.
Next, connect the black wire to the brass line terminal, the white wire to the silver line terminal, and the bare copper wire to the green ground screw. Make sure to wrap each wire clockwise around the terminal screw and tighten securely. Once the wires are connected, carefully tuck them back into the electrical box, ensuring that nothing is pinched or exposed.
Finally, secure the GFCI outlet to the electrical box with the screws provided and attach the cover plate. Turn the power back on at the circuit breaker and test the outlet by pressing the “test” and “reset” buttons. If the GFCI outlet is functioning properly, you should be all set!
Wiring a GFCI outlet may seem daunting at first, but with the right diagram and a little patience, you can ensure the safety of your home and family. If you are unsure about any step of the process, don’t hesitate to consult a professional electrician for guidance. Remember, safety always comes first when working with electricity.
