Wiring a 4-way switch can be a bit confusing for those who are not familiar with electrical work. However, with the right instructions and diagram, it can be a manageable task. A 4-way switch is used to control a light fixture from three or more locations, such as at the top and bottom of a staircase or at both ends of a long hallway.

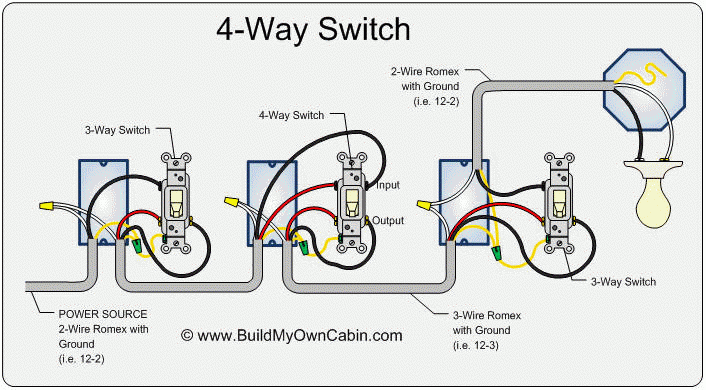

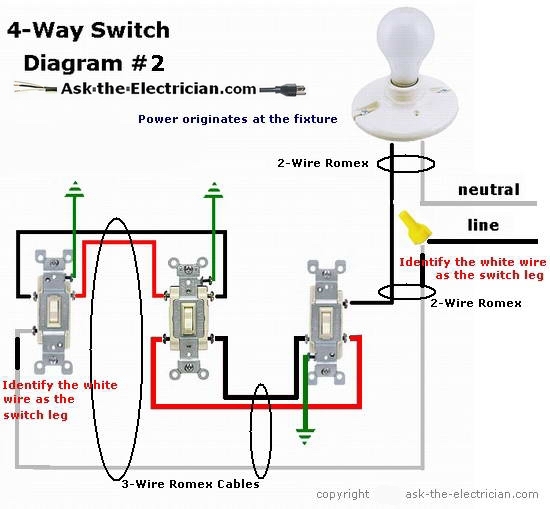

Understanding the wiring diagram for a 4-way switch is essential before starting the installation process. It involves connecting two 3-way switches with a 4-way switch in between. This configuration allows you to control the light fixture from multiple locations, providing convenience and flexibility.

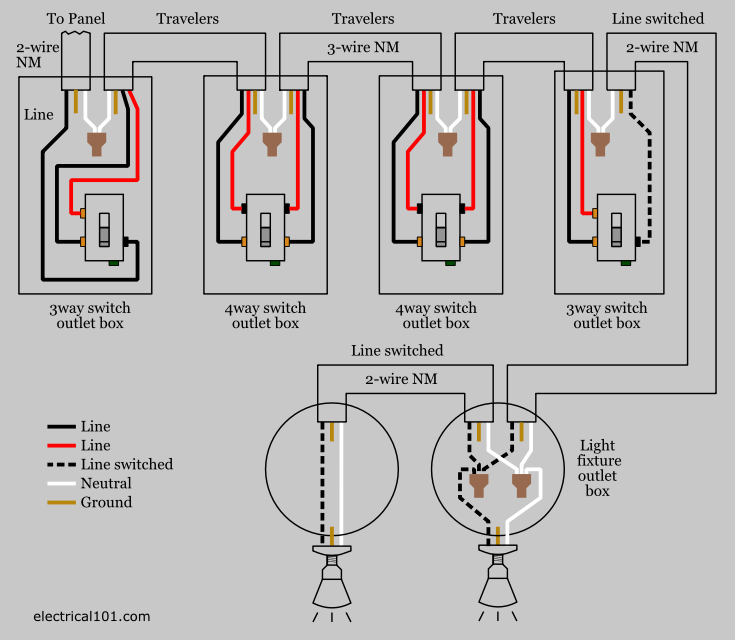

DIAGRAM Multiswitch Wiring Diagram 4 Way MYDIAGRAM ONLINE (mydiagram.online)
When wiring a 4-way switch, it is important to follow the diagram carefully to ensure the proper connection of the wires. Start by turning off the power to the circuit at the breaker box to avoid any accidents. Identify the wires and terminals on the switches before proceeding with the installation.
Connect the traveler wires from each 3-way switch to the terminals on the 4-way switch, making sure to match the wire colors for consistency. The common terminal on the 3-way switches should be connected to the hot wire, while the load wire should be connected to the common terminal on the 4-way switch. Double-check all connections before turning the power back on.
Once the wiring is complete, test the 4-way switch by turning it on and off from different locations. If the light fixture responds correctly to the switch positions, then the installation was successful. Make sure to secure all connections and cover them with electrical tape or wire nuts for safety.
In conclusion, wiring a 4-way switch diagram may seem daunting at first, but with the right instructions and careful planning, it can be achieved with ease. By following the proper steps and double-checking the connections, you can successfully control a light fixture from multiple locations using a 4-way switch.
