Three way switches are commonly used in homes to control lights from two different locations. This type of setup allows you to turn a light on or off from either switch, providing convenience and flexibility. Understanding the wiring diagram for a three way switch is key to successfully installing and operating this type of lighting system.
When wiring a three way switch, it is important to remember that there are two switches involved: the first switch, also known as the “hot” switch, and the second switch, known as the “remote” switch. The hot switch is typically located near the light fixture, while the remote switch is located in a different area of the room.

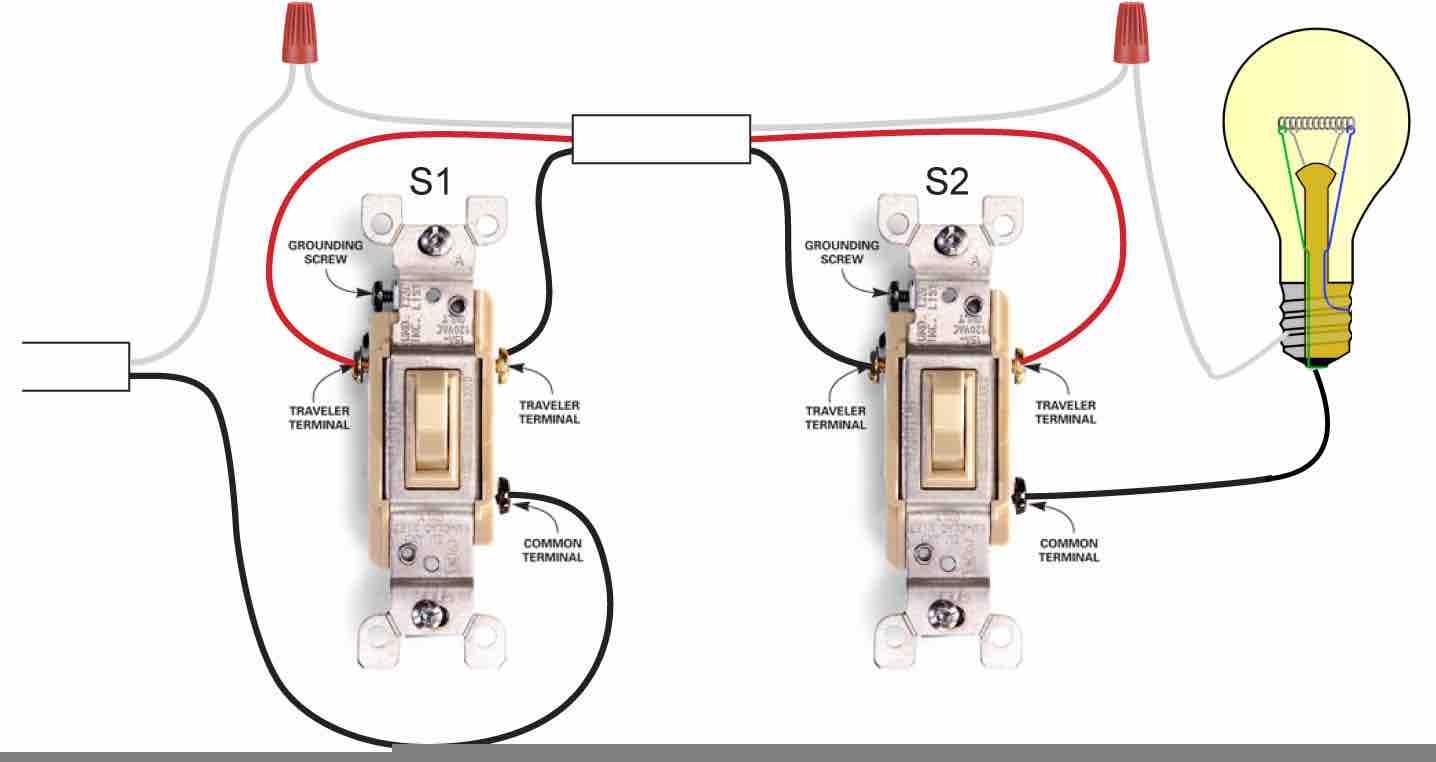

How To Wire 3 Way Lighting Circuit Youtube 3 Way Light Switching (2020cadillac.com)

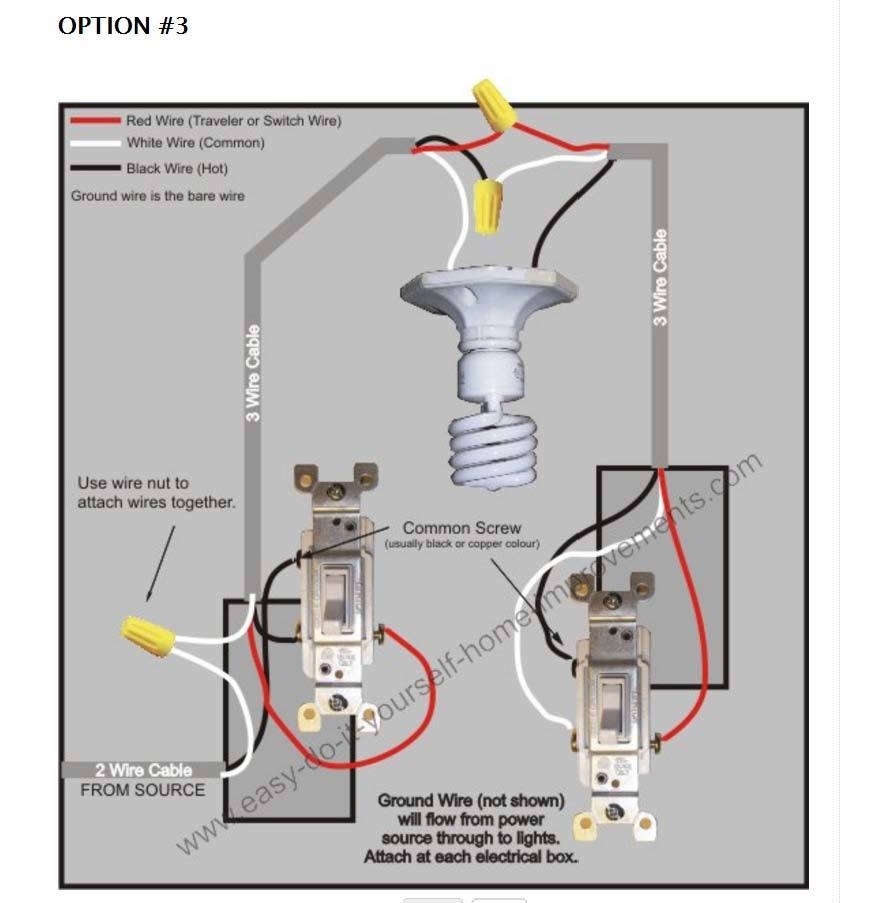

To wire a three way switch, you will need a three conductor cable with a ground wire. The black wire is used to carry the hot wire, the white wire is the neutral wire, and the red wire is the traveler wire. The ground wire is typically green or bare copper. Each switch will have three terminals: a common terminal, a traveler terminal, and a ground terminal.
Start by turning off the power to the circuit at the breaker box. Connect the black wire from the power source to the common terminal on the hot switch. Connect the white wire from the power source to the neutral wire in the light fixture. Connect the black wire from the light fixture to the common terminal on the remote switch. Lastly, connect the red traveler wire to the traveler terminals on both switches.
Once all the connections are made, turn the power back on and test the switches to ensure they are functioning properly. When the switches are in the proper position, the light should turn on or off from either location. If the light does not respond as expected, double check your wiring connections to make sure everything is properly connected.
In conclusion, understanding the wiring diagram for a three way switch is essential for successfully installing this type of lighting system in your home. By following the proper wiring instructions and testing the switches, you can enjoy the convenience and flexibility of controlling your lights from multiple locations.
