Outlet diagram wiring is an essential aspect of any electrical installation project. Whether you are adding new outlets or replacing old ones, understanding how to wire them properly is crucial for ensuring safety and functionality in your home or workspace.
Before starting any wiring project, it is important to familiarize yourself with the basic components of an outlet diagram. This typically includes a hot wire (black), a neutral wire (white), and a ground wire (green or bare copper). The hot wire carries the electricity to the outlet, the neutral wire completes the circuit, and the ground wire provides a path for excess electricity to safely dissipate.

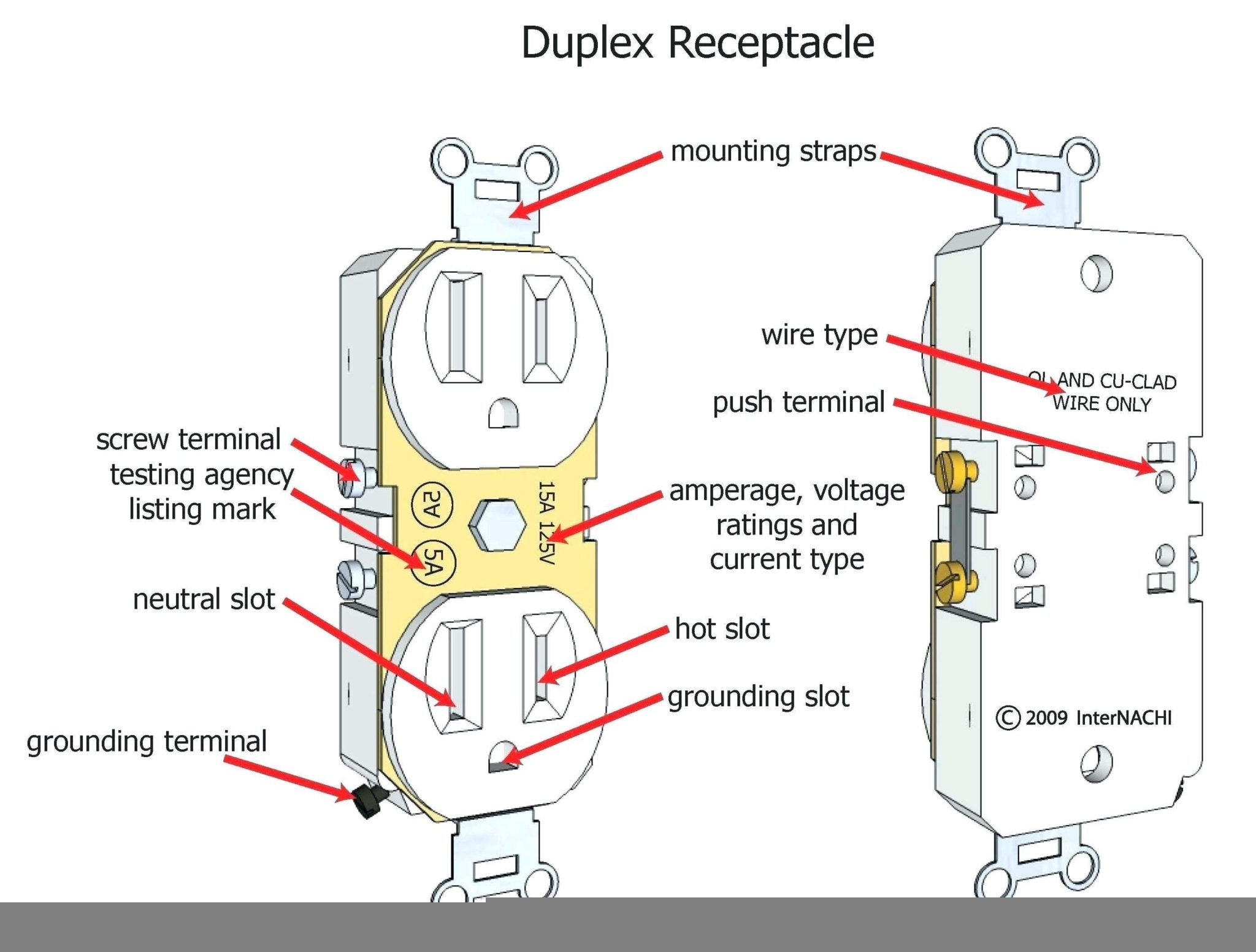

Wiring Diagram Outlets Beautiful Wiring Diagram Outlets Wiring (lexuscarumors.com)
When wiring an outlet, it is crucial to follow the proper sequence of steps to ensure a successful and safe installation. Start by turning off the power to the circuit you will be working on at the breaker box. Use a voltage tester to confirm that the power is off before proceeding. Next, remove the cover plate from the existing outlet and carefully disconnect the wires. Make note of the position of each wire so that you can replicate it with the new outlet.

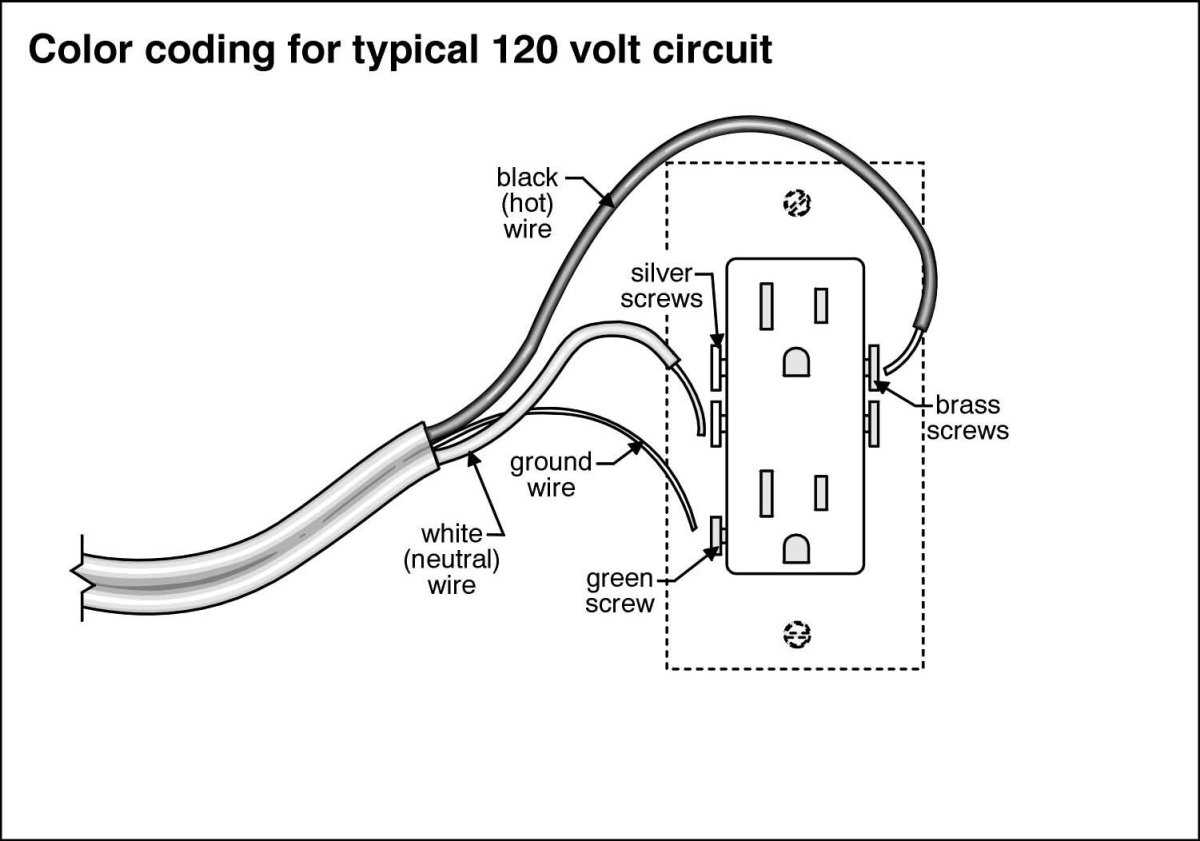

Once you have removed the old outlet, you can begin wiring the new one. Start by connecting the ground wire to the green screw on the outlet and securing it in place. Next, connect the white neutral wire to the silver screw and the black hot wire to the brass screw. Make sure to tighten the screws securely to ensure a good connection. Finally, carefully tuck the wires back into the outlet box and secure the outlet in place with the screws provided.
After wiring the outlet, it is important to test it to ensure that it is functioning properly. Turn the power back on at the breaker box and use a voltage tester to check for power at the outlet. If everything is in working order, replace the cover plate and test the outlet with a lamp or other device to confirm that it is supplying power.
In conclusion, outlet diagram wiring is a fundamental skill for any DIY enthusiast or electrician. By following the proper steps and safety precautions, you can successfully wire outlets in your home or workspace. Remember to always turn off the power before starting any wiring project and test the outlet before use to ensure safety and functionality.
