Light Fixture Wiring Diagram

When it comes to installing a new light fixture in your home, understanding the wiring diagram is essential. Proper wiring ensures that the fixture functions correctly and safely. Whether you are replacing an old fixture or adding a new one, having a clear understanding of the wiring diagram will make the installation process much smoother.

Before you begin any electrical work, it is important to turn off the power to the area where you will be working. This can typically be done by turning off the circuit breaker that controls the light fixture. It is also a good idea to use a voltage tester to double-check that the power is indeed off before you start working.

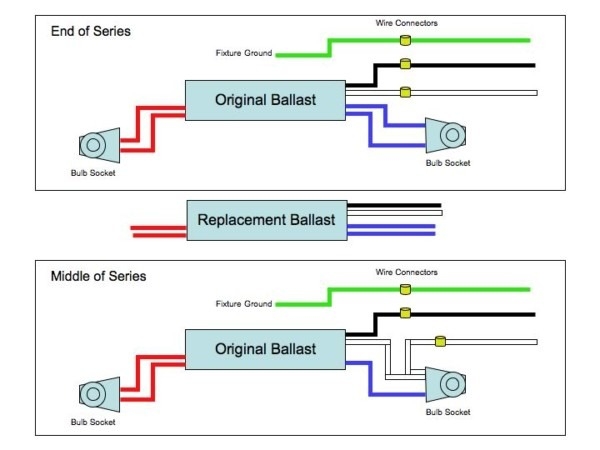

Wiring A Light Fixture In Series (www.chanish.org)

When looking at a light fixture wiring diagram, you will typically see three wires: a black wire, a white wire, and a green or bare copper wire. The black wire is the hot wire, which carries the electrical current to the fixture. The white wire is the neutral wire, which completes the circuit and returns the current to the electrical panel. The green or bare copper wire is the ground wire, which provides a path for stray current to safely dissipate.

One common wiring configuration for a light fixture involves connecting the black wire from the fixture to the black wire in the electrical box, the white wire from the fixture to the white wire in the box, and the green or bare copper wire from the fixture to the ground wire in the box. It is important to make sure that all connections are secure and that no bare wire is exposed.

If you are unsure about how to properly wire a light fixture, it is always best to consult a licensed electrician. They have the knowledge and experience to ensure that the wiring is done correctly and safely. Remember, safety should always be the top priority when working with electricity.

By following the wiring diagram for your light fixture and taking the necessary safety precautions, you can successfully install a new fixture in your home. With the right tools and knowledge, you can brighten up your space with a beautiful new light fixture in no time.

Download and Print Light Fixture Wiring Diagram Listed below

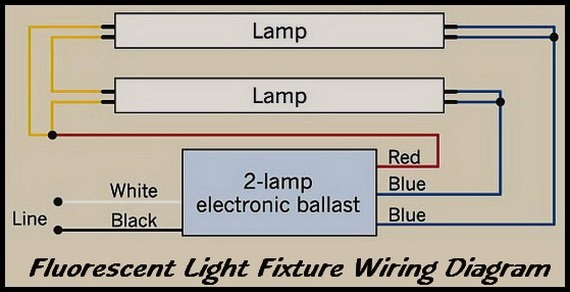

DIAGRAM Wiring A Light Fixture Diagram MYDIAGRAM ONLINE (mydiagram.online)

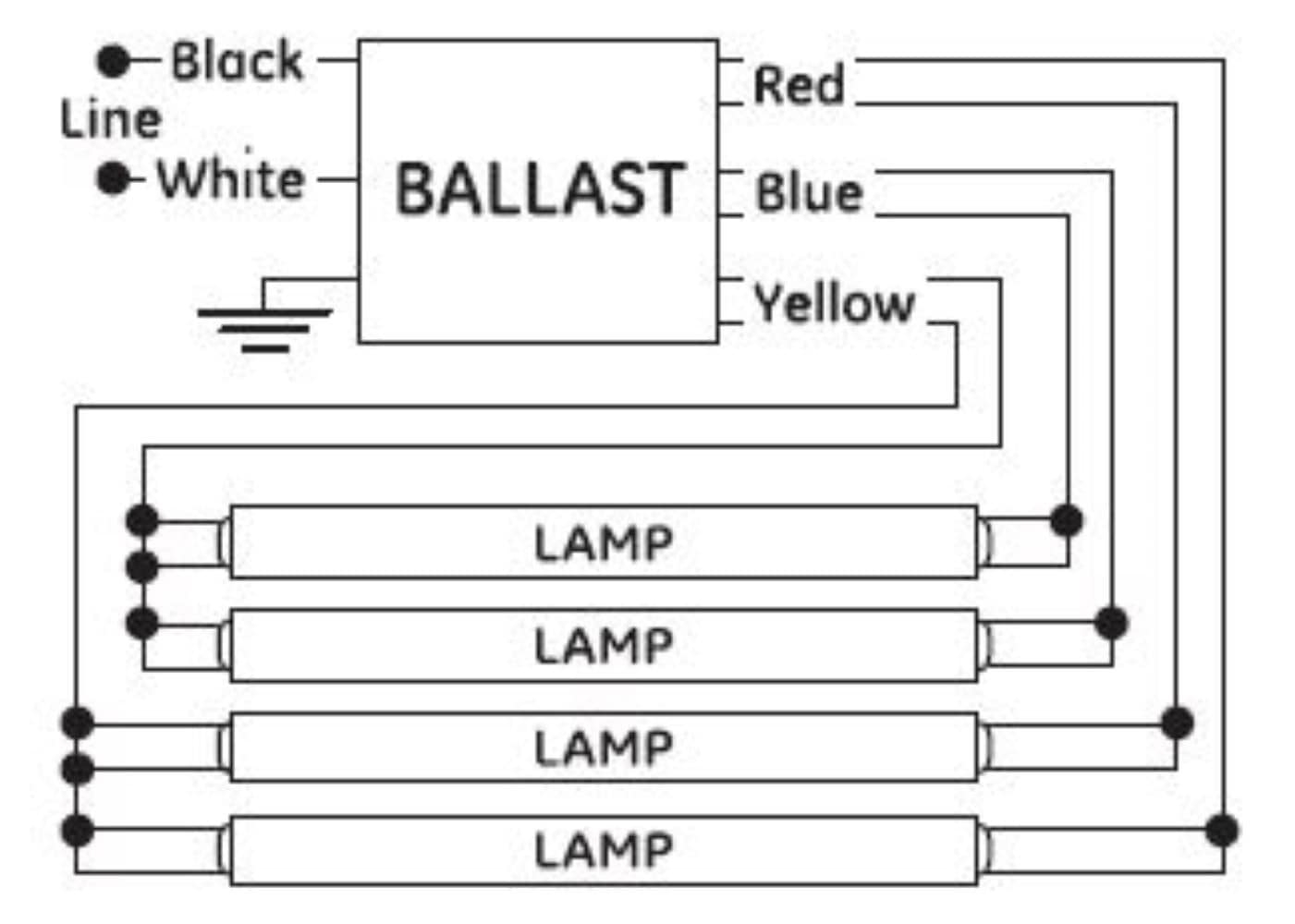

4 Bulb Fluorescent Light Fixture Wiring Diagram Wiring Diagram (wiringdiagram.2bitboer.com)

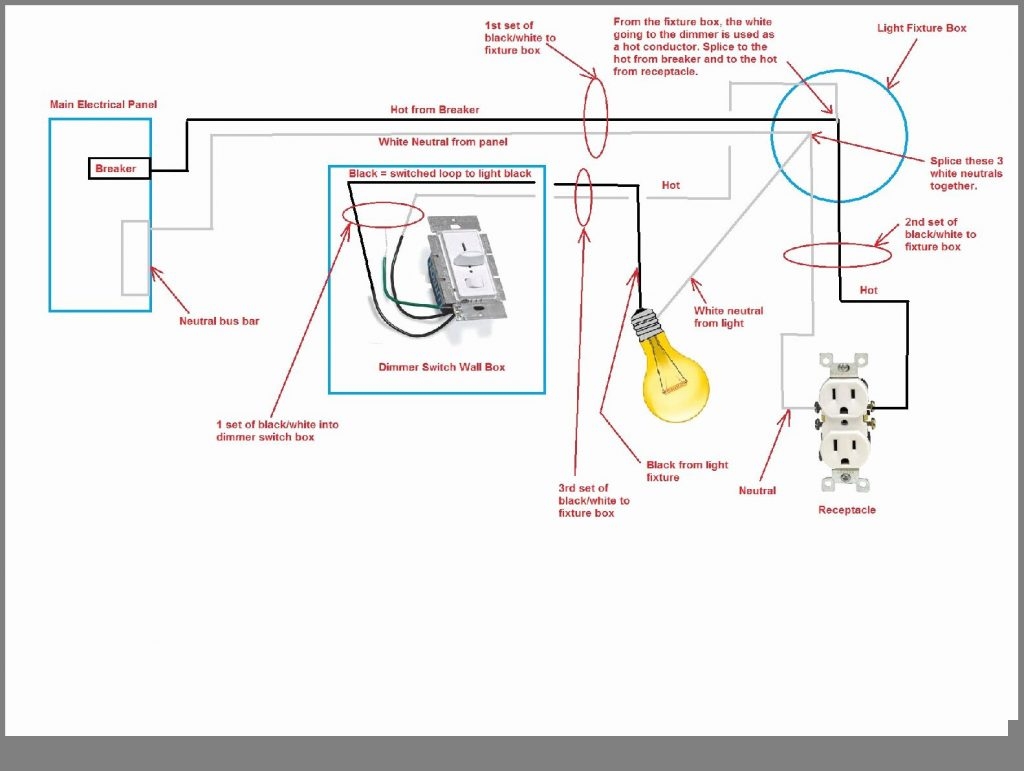

Wiring Diagrams For Black Fixtures Schematic Diagram Light Fixture (2020cadillac.com)
