When setting up a network, it’s essential to understand the wiring diagram for Cat5e cables. Cat5e cables are commonly used for Ethernet networks and can support speeds up to 1 Gigabit per second. By following the correct wiring diagram, you can ensure that your network operates efficiently and effectively.
Properly wiring Cat5e cables is crucial for maintaining a stable and reliable network connection. The wiring diagram specifies the order in which the individual wires within the cable should be connected to the RJ45 connectors. This ensures that data is transmitted accurately and without interference.
Cat5e Wiring Diagram (stewart-switch.com)
Cat5e Wiring Diagram

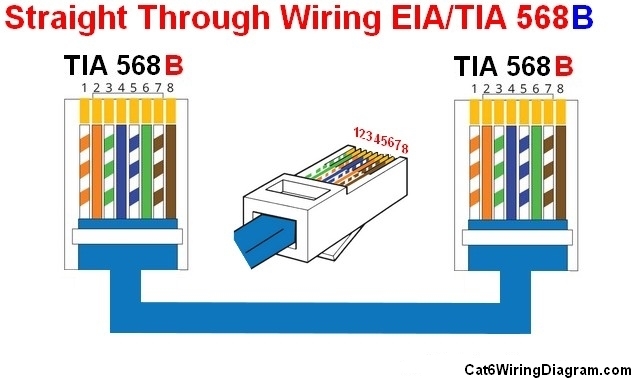

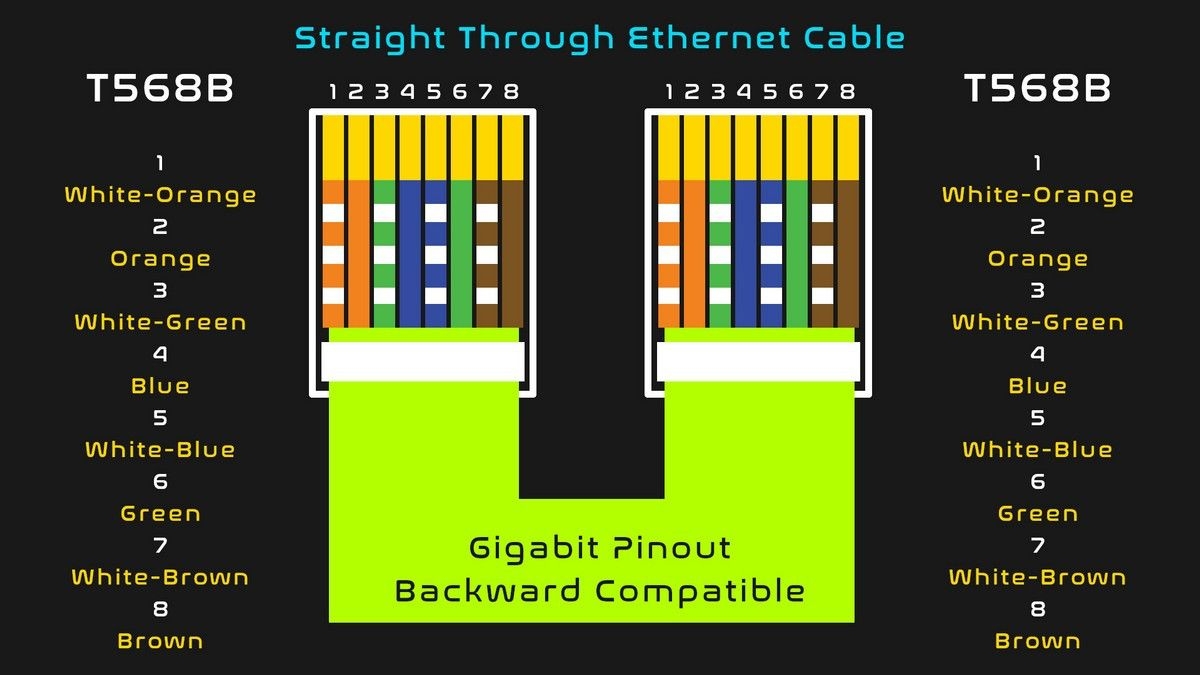

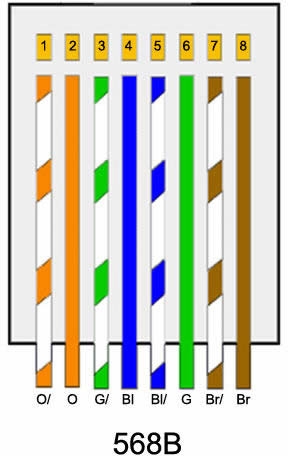

The standard wiring diagram for Cat5e cables follows the TIA/EIA 568B color coding scheme. In this diagram, the wires are arranged in the following order: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Each wire serves a specific function in transmitting data, and it’s important to follow this sequence precisely when crimping the connectors.
When terminating Cat5e cables, it’s essential to use a quality crimping tool to ensure a secure connection. The wires must be stripped and aligned correctly before inserting them into the RJ45 connector. Once the wires are in place, the connector is crimped to hold them securely. Following the wiring diagram will ensure that each wire is connected to the correct pin, preventing any connection issues.
Testing the network connection after wiring is also crucial to ensure that the cables are properly connected. Using a cable tester can help identify any wiring errors or connectivity issues that may arise. By verifying the connections with a tester, you can troubleshoot and fix any problems before they impact the network’s performance.
In conclusion, understanding the Cat5e wiring diagram is essential for setting up a reliable Ethernet network. By following the correct wiring sequence and using quality connectors, you can ensure that your network operates efficiently and effectively. Regular testing and maintenance of the cables will help prevent any connectivity issues and ensure a stable network connection.
