When it comes to setting up a network, Cat5 wiring plays a crucial role in ensuring a stable and reliable connection. Cat5 cables are commonly used for Ethernet connections and can transmit data at speeds of up to 1000 Mbps. Understanding how to properly wire Cat5 cables is essential for creating a functional network.

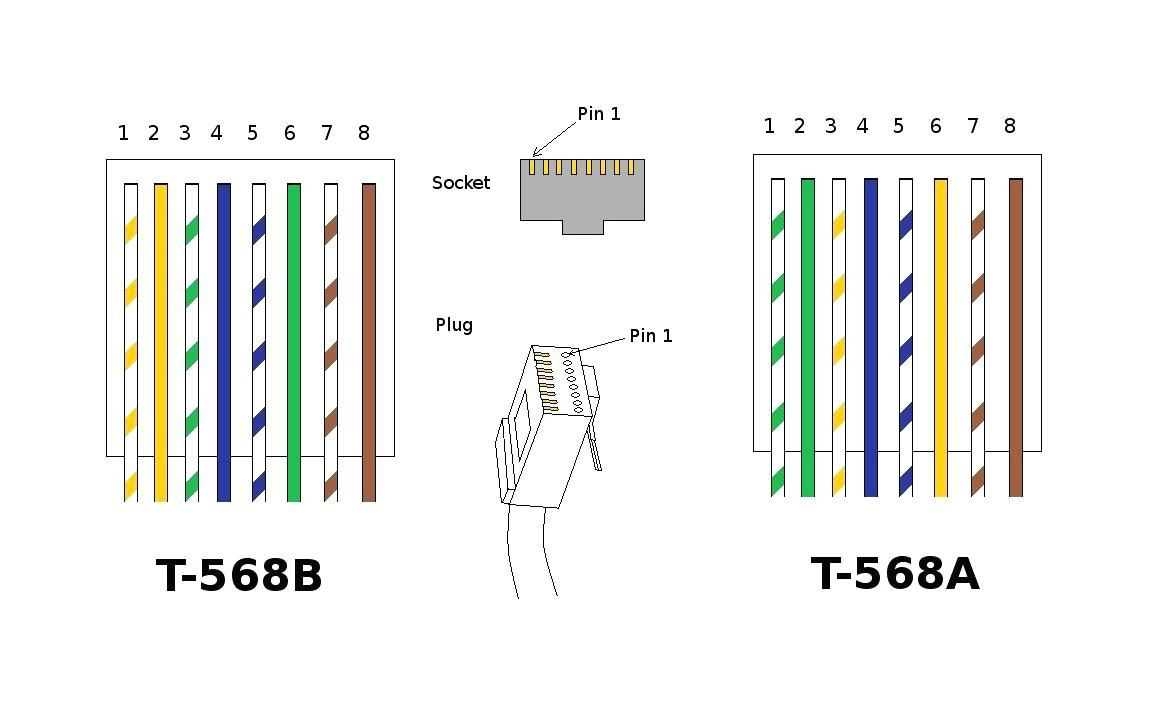

Before diving into the wiring process, it’s important to have a clear understanding of the Cat5 wiring diagram. This diagram outlines the proper configuration of the wires within the Cat5 cable and provides a visual guide for connecting the cables to the appropriate ports.

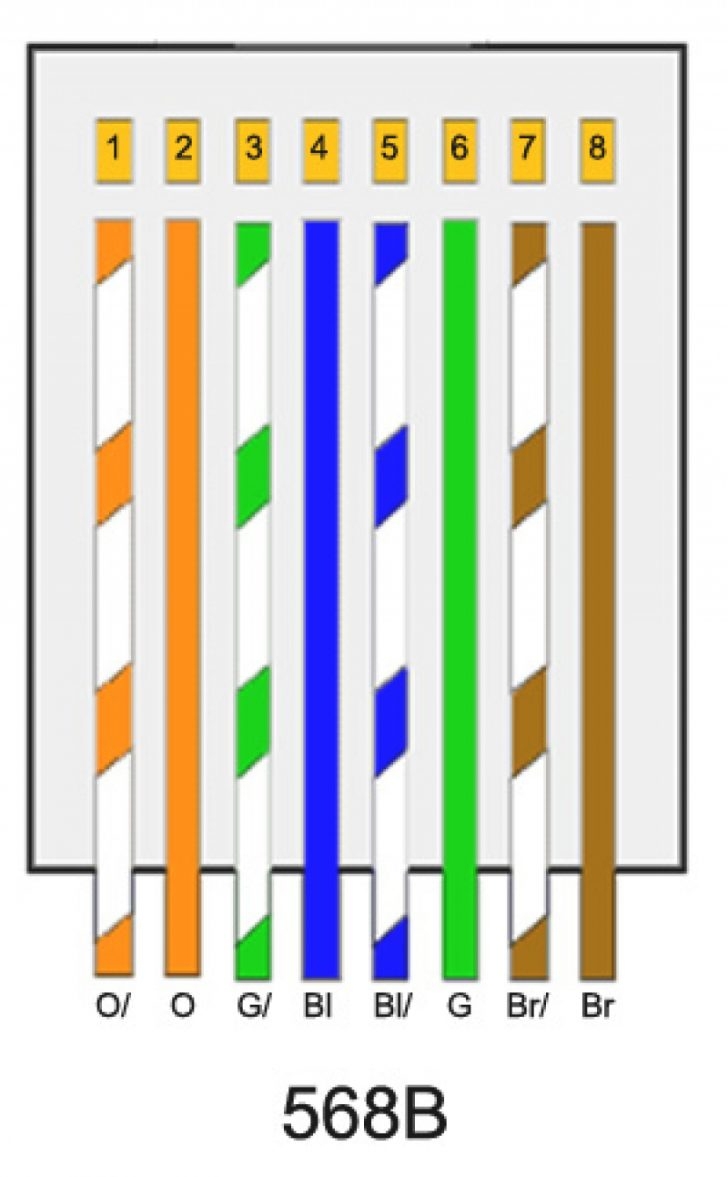

Cat 5 Wiring Pattern Wiring Diagram Name Cat 5 Cable Wiring Diagram (2020cadillac.com)

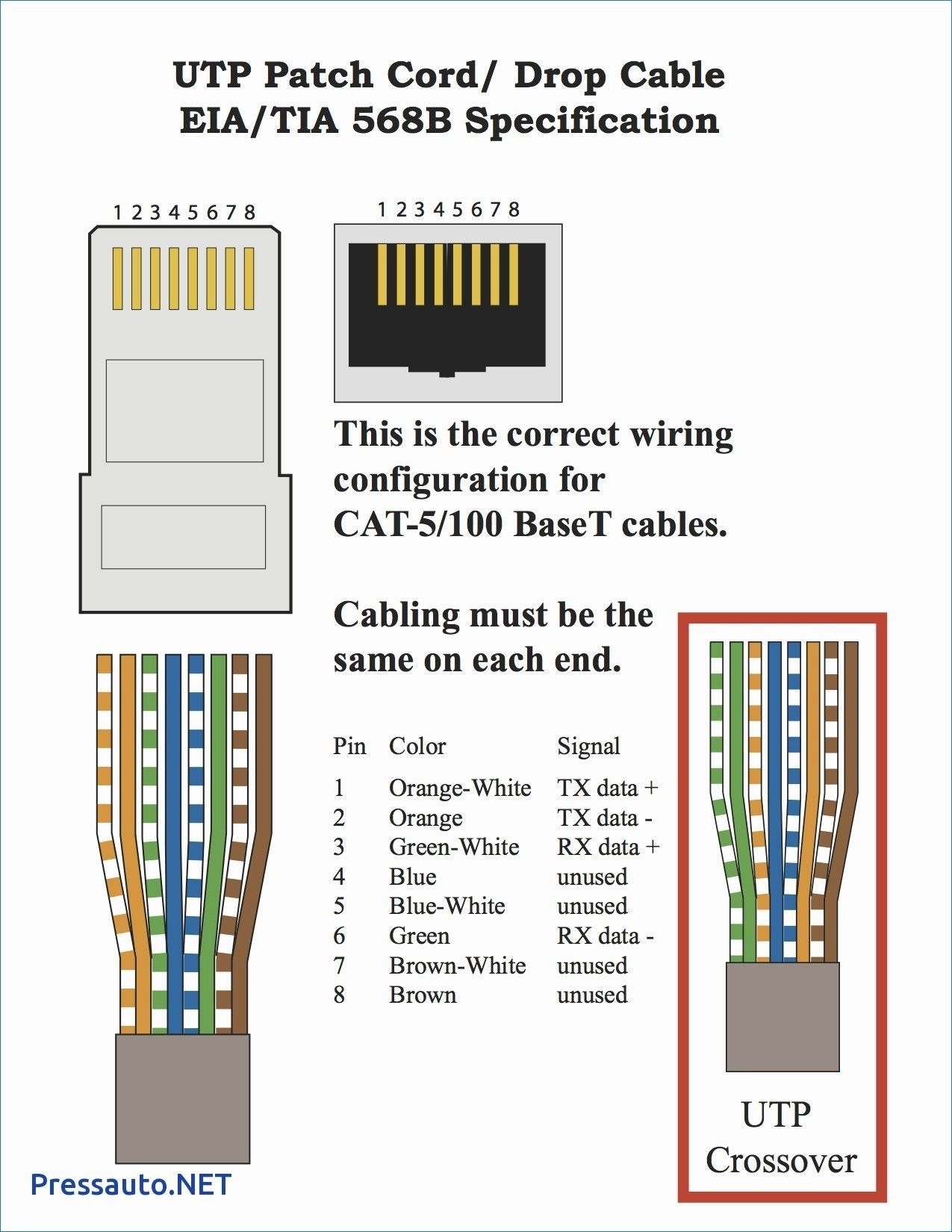

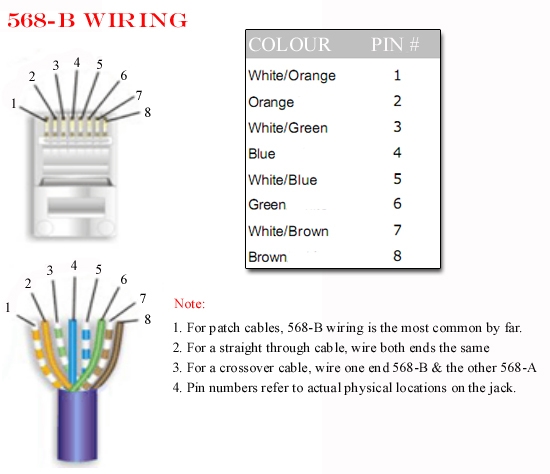

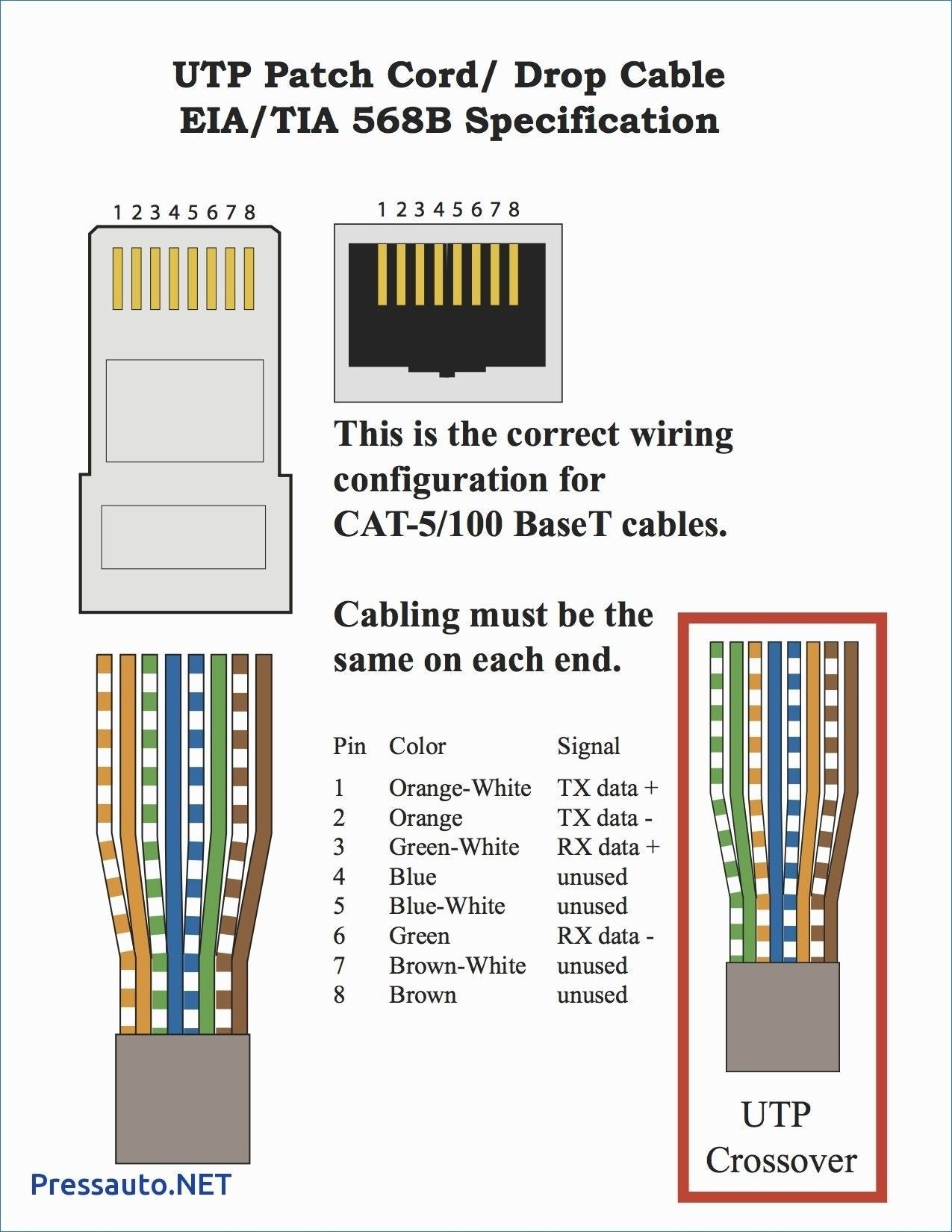

Typically, a Cat5 cable consists of four twisted pairs of wires, each with a different color coding scheme. The standard color coding for Cat5 cables is as follows: Pair 1 – White/Blue and Blue, Pair 2 – White/Orange and Orange, Pair 3 – White/Green and Green, Pair 4 – White/Brown and Brown. Following this color scheme is crucial for ensuring that the cables are wired correctly.
When wiring a Cat5 cable, it’s essential to use a proper crimping tool to secure the connections. Begin by stripping the outer jacket of the cable to expose the individual wires. Then, carefully untwist the pairs of wires and arrange them according to the color coding scheme. Once the wires are in the correct order, insert them into the appropriate slots on the RJ45 connector and use the crimping tool to secure the connection.
After the cables are wired and crimped, they can be connected to the Ethernet ports on devices such as computers, routers, and switches. It’s essential to ensure that the cables are securely connected to prevent any signal loss or interference. By following the Cat5 wiring diagram and proper installation techniques, you can create a reliable network that delivers high-speed data transmission.
In conclusion, understanding the Cat5 wiring diagram is essential for setting up a functional and reliable network. By following the proper color coding scheme and using the correct installation techniques, you can create Cat5 cables that provide a stable connection for your Ethernet devices. Whether you’re setting up a home network or a business network, knowing how to wire Cat5 cables is a valuable skill that can help you optimize your network performance.
