When it comes to setting up a network, having the right wiring diagram is essential. Cat5 Ethernet cables are commonly used for connecting devices within a network, and understanding how to properly wire them can ensure a reliable and efficient connection. By following a Cat5 Ethernet cable wiring diagram, you can easily set up your network and ensure that all devices are connected correctly.

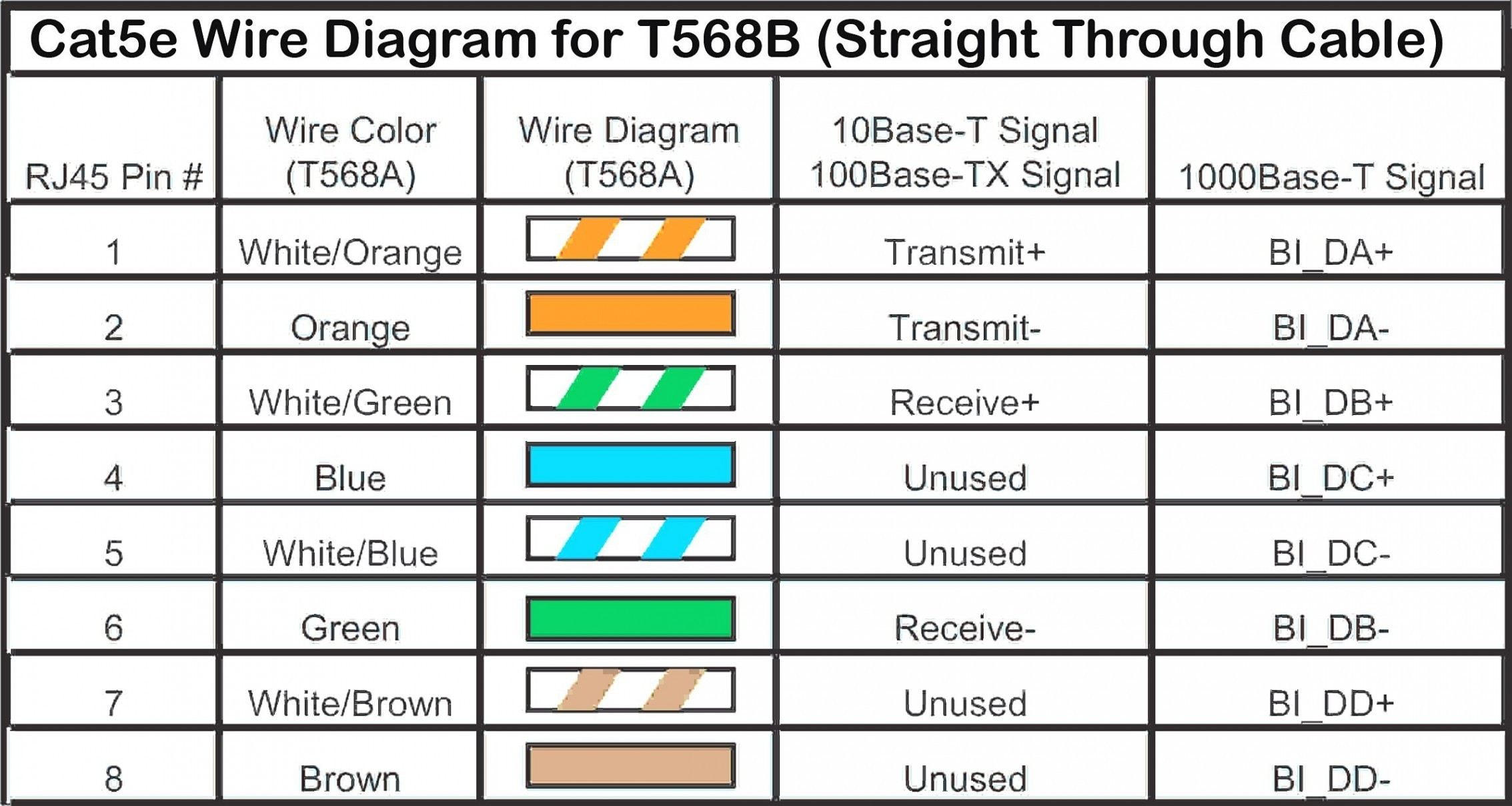

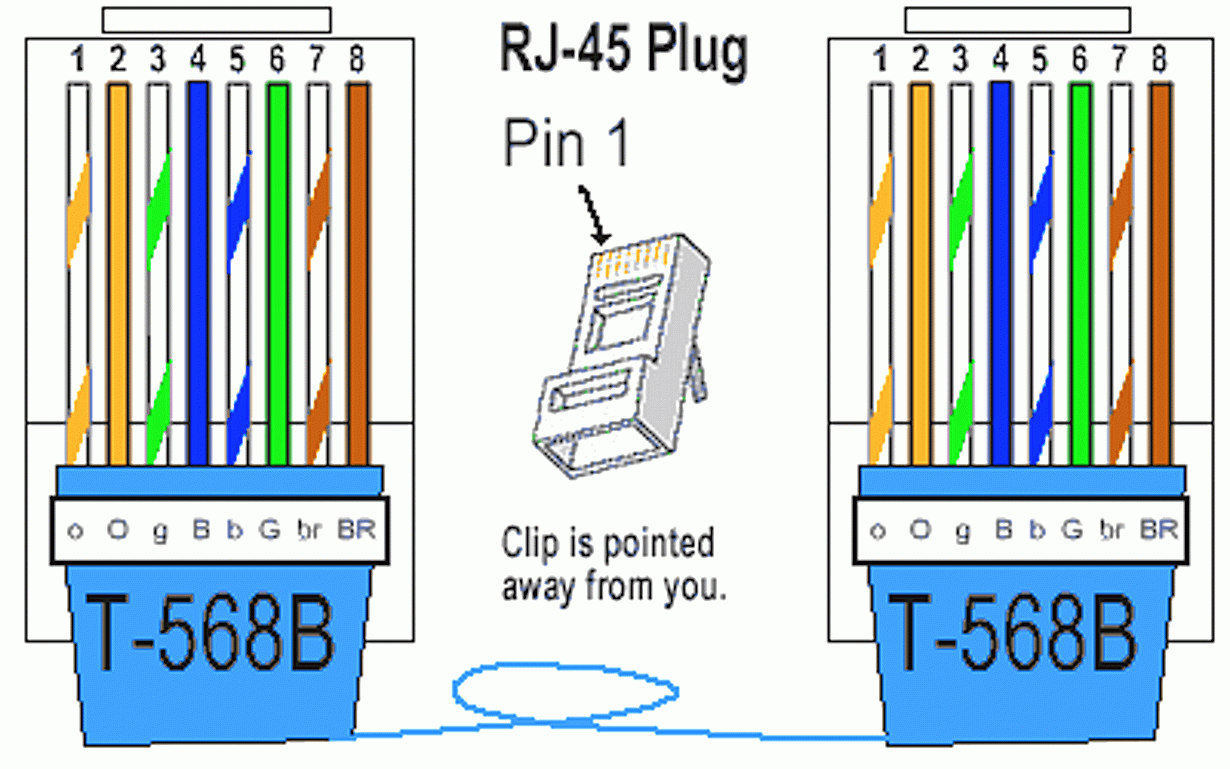

The Cat5 Ethernet cable wiring diagram typically consists of four pairs of twisted wires, with each pair having a different color. The standard wiring scheme for Cat5 Ethernet cables is T-568B, which specifies the order in which the wires should be connected to the RJ45 connector. By following this wiring scheme, you can create a reliable connection for your network devices.

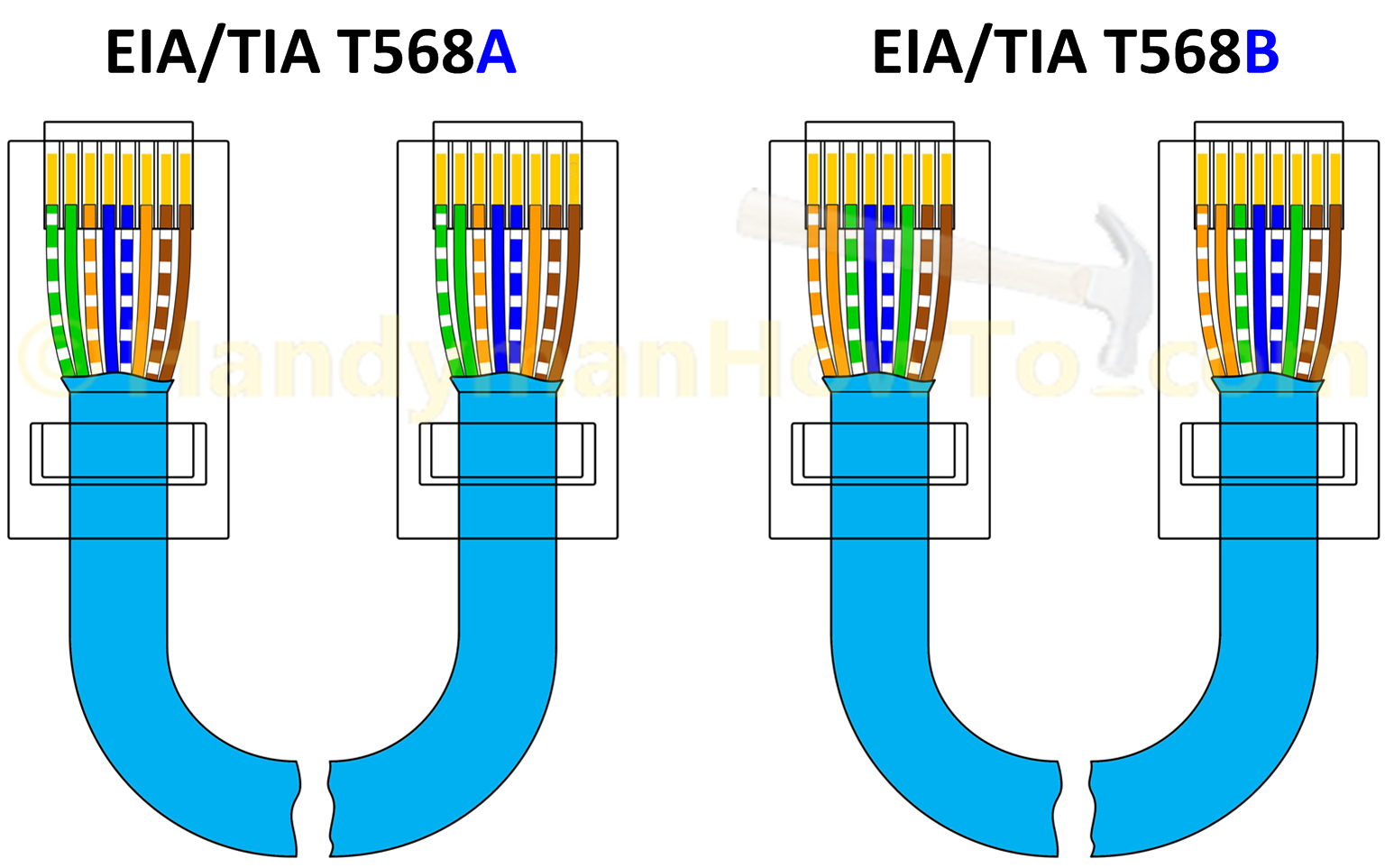

Great Ethernet Cable Wiring Diagram How To Make An Network With (2020cadillac.com)
When wiring a Cat5 Ethernet cable, it is important to strip back the outer insulation to expose the individual wires. Once the wires are exposed, they should be carefully separated and arranged according to the T-568B wiring scheme. The wires should then be inserted into the RJ45 connector in the correct order, with each wire securely crimped into place.
After the wires have been properly connected to the RJ45 connector, the cable should be tested to ensure that the connection is working correctly. Using a cable tester can help identify any wiring errors or connectivity issues that may need to be addressed. By testing the cable before use, you can avoid potential problems and ensure that your network operates smoothly.
Overall, understanding how to wire a Cat5 Ethernet cable is essential for setting up a reliable network. By following a wiring diagram and using the proper tools and techniques, you can create a secure and efficient connection for your network devices. Whether you are setting up a home network or a larger business network, having a solid understanding of Cat5 Ethernet cable wiring can help ensure that your network operates effectively.
In conclusion, a Cat5 Ethernet cable wiring diagram is a valuable tool for anyone setting up a network. By following the standard T-568B wiring scheme and using the proper techniques, you can create a reliable connection for your network devices. With the right wiring diagram and a little know-how, you can set up a network that meets your needs and operates smoothly.
