When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. One of the most common types of trailer wiring is the 7 pin plug. This type of wiring allows for the connection of various lights and accessories on the trailer to the vehicle, ensuring that everything works properly while on the road.
Understanding how to wire a 7 pin plug trailer correctly is crucial to ensure that all lights and signals function as they should. This type of wiring typically includes connections for the brake lights, turn signals, reverse lights, and more. By following a specific diagram, you can easily wire your trailer for safe towing.

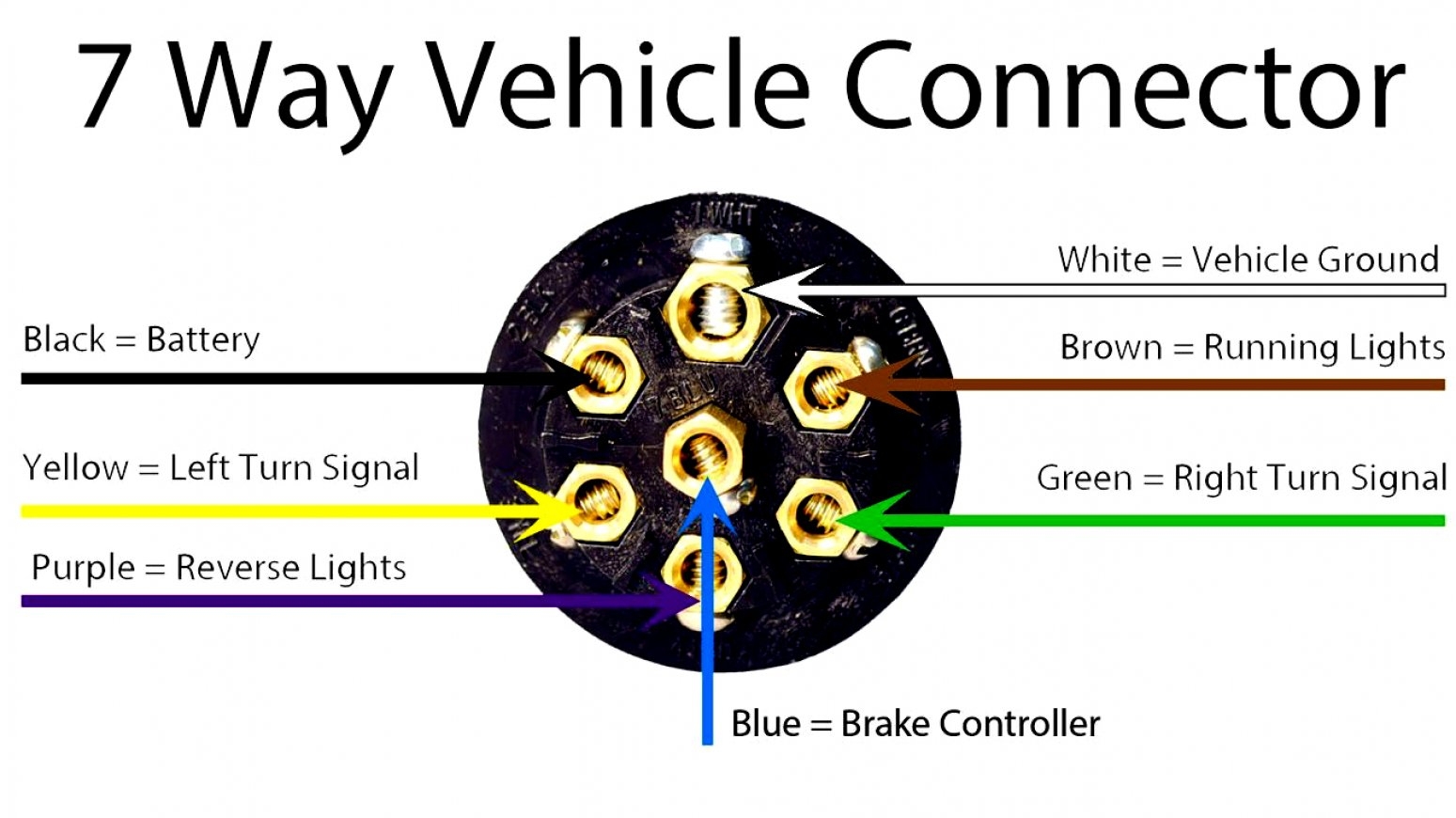

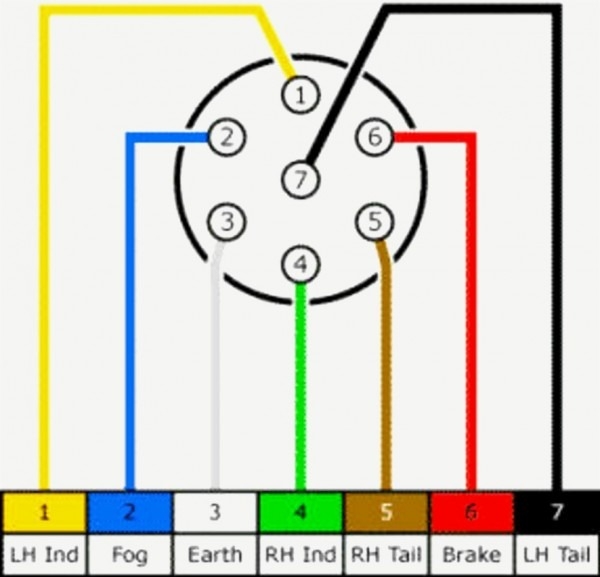

7 Pin Semi Trailer Wiring Diagram (www.tankbig.com)

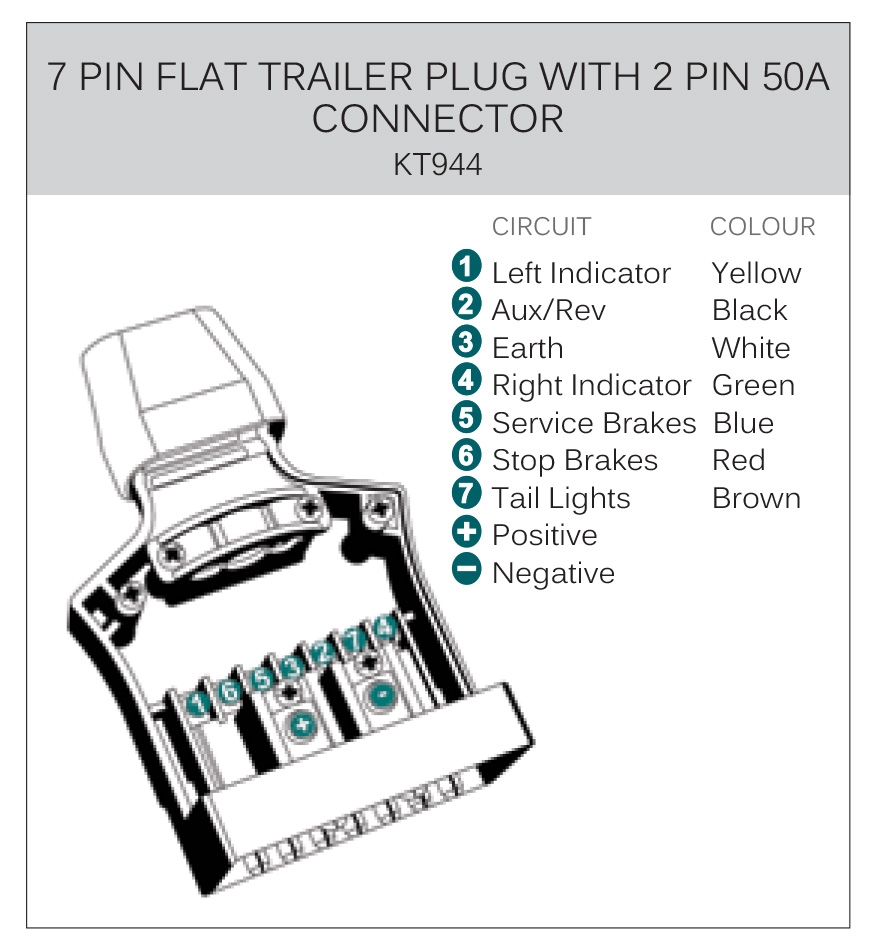

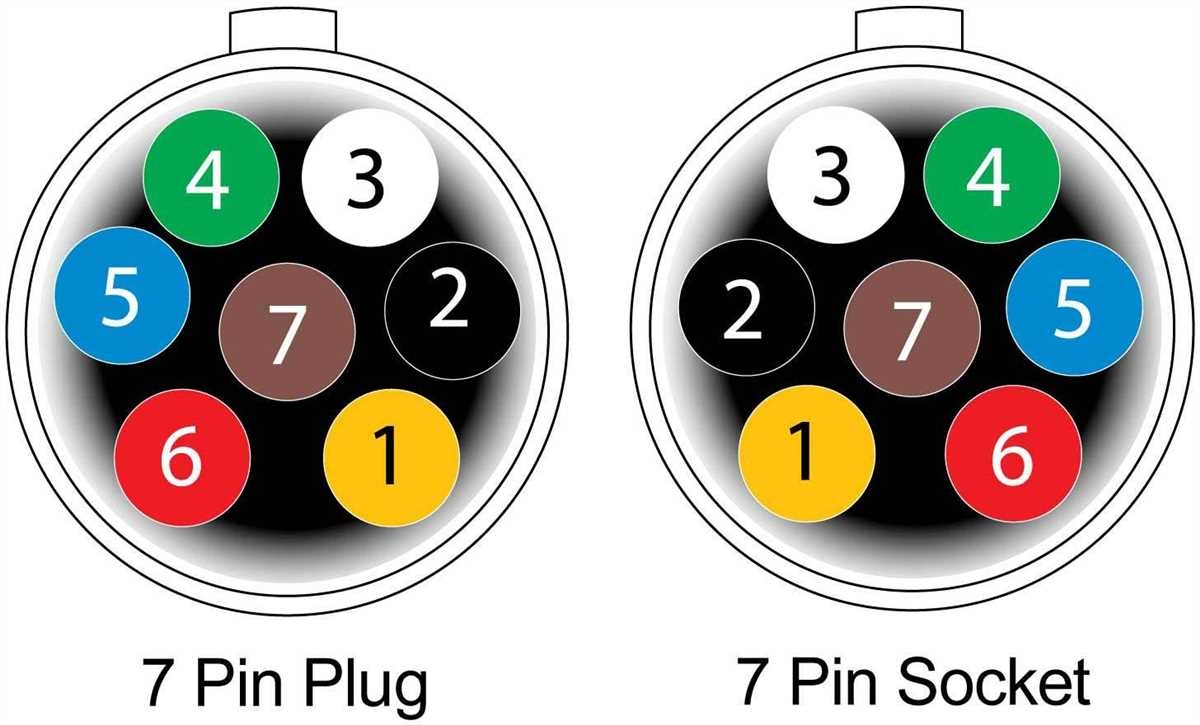

Starting with the ground wire, which is usually white, connect it to the frame of the trailer. Next, connect the brown wire to the tail lights, the yellow wire to the left turn signal, and the green wire to the right turn signal. The blue wire is typically used for electric brakes, while the black wire is for the 12V power supply. Finally, the purple wire is for the reverse lights.
It is important to follow the specific diagram for your 7 pin plug trailer wiring to ensure everything is connected correctly. This will help prevent any electrical issues while towing and keep you and other drivers safe on the road. If you are unsure about how to wire your trailer, be sure to consult a professional for assistance.
By understanding and following the 7 pin plug trailer wiring diagram, you can ensure that your trailer is properly wired for safe and efficient towing. Taking the time to wire your trailer correctly will give you peace of mind knowing that everything is connected as it should be. So next time you hit the road with your trailer in tow, you can do so with confidence.
In conclusion, having the proper wiring for your trailer is crucial for safe towing. The 7 pin plug trailer wiring diagram provides a clear guide on how to wire your trailer for optimal functionality. By following the diagram and ensuring all connections are secure, you can tow your trailer with confidence and peace of mind.
