4 Plug Wiring Diagram Trailer

When it comes to towing a trailer, having the proper wiring setup is crucial for safety and functionality. A 4 plug wiring diagram for a trailer is a common setup that allows you to connect the trailer lights and signals to your vehicle. Understanding how to wire a 4 plug trailer connector will ensure that you can tow your trailer safely and legally.

Whether you’re towing a boat, camper, or utility trailer, having a 4 plug wiring diagram handy will make the setup process much easier. This type of wiring setup includes connections for the tail lights, brake lights, and turn signals on the trailer, as well as a ground wire. By following the diagram and making the proper connections, you can ensure that your trailer lights work properly and that other drivers can see your signals on the road.

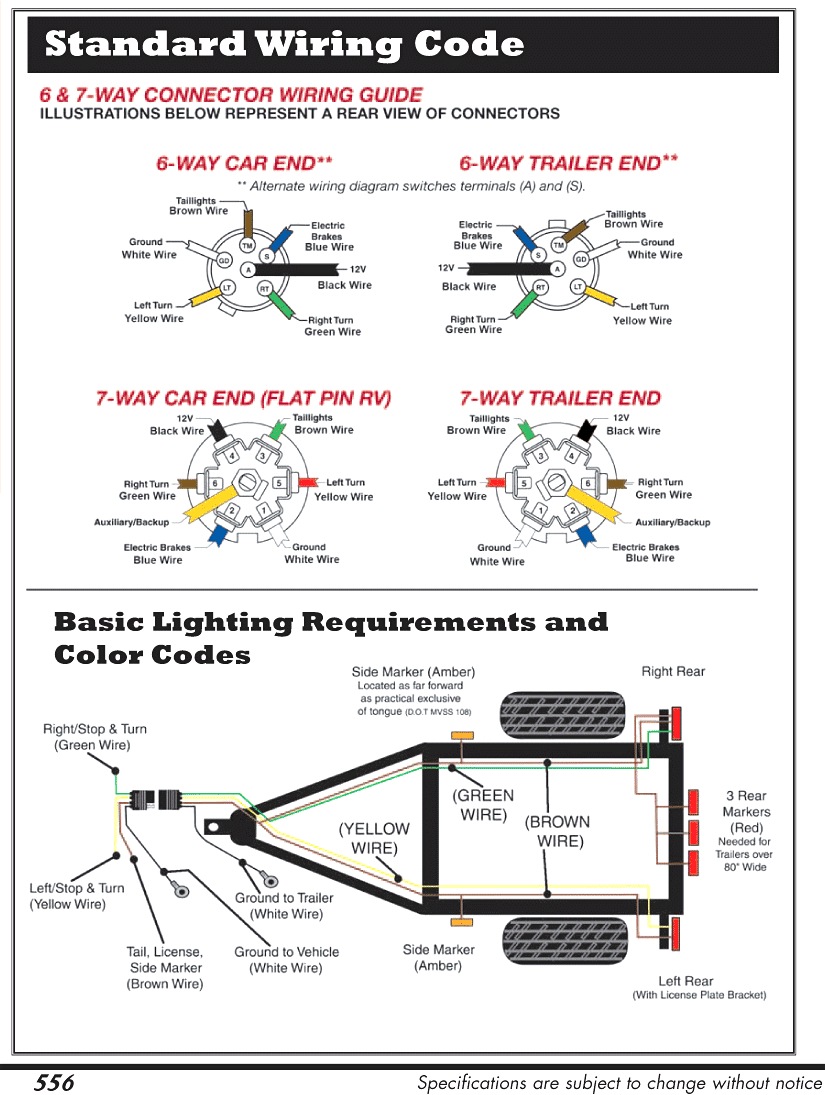

Ez Loader Boat Trailer Wiring Diagram Wiring Diagram (www.autowiringdiagram.net)

When wiring a 4 plug trailer connector, it’s important to follow the color-coding on the wires to ensure that everything is connected correctly. The standard color-coding for a 4 plug setup is as follows: white for ground, brown for tail lights, yellow for left turn/brake, and green for right turn/brake. By matching up these colors with the corresponding wires on your trailer and vehicle, you can quickly and easily wire up the connection.

One important thing to note when wiring a 4 plug trailer connector is to make sure that all connections are secure and free of corrosion. A loose or corroded connection can cause issues with your trailer lights, leading to potential safety hazards on the road. It’s a good idea to regularly inspect and clean your trailer wiring connections to ensure that everything is in good working order.

In conclusion, having a 4 plug wiring diagram for your trailer is essential for safe and legal towing. By following the color-coding and making secure connections, you can ensure that your trailer lights work properly and that other drivers can see your signals. Make sure to regularly inspect and maintain your trailer wiring to prevent any issues on the road.

Download and Print 4 Plug Wiring Diagram Trailer Listed below

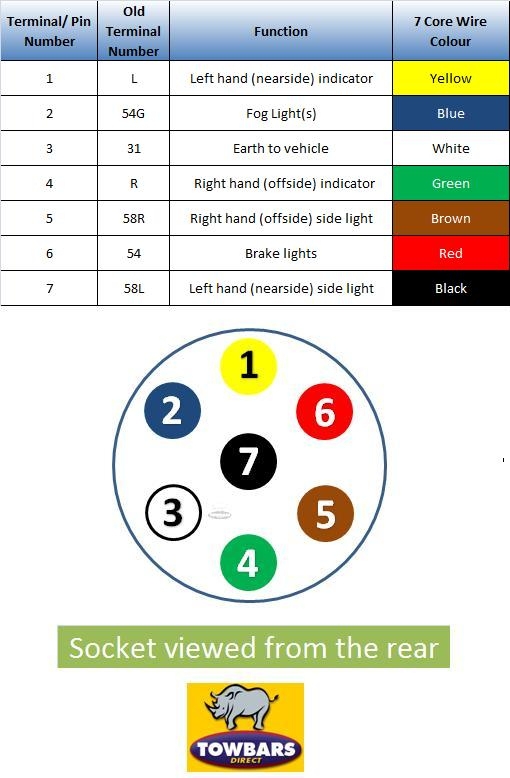

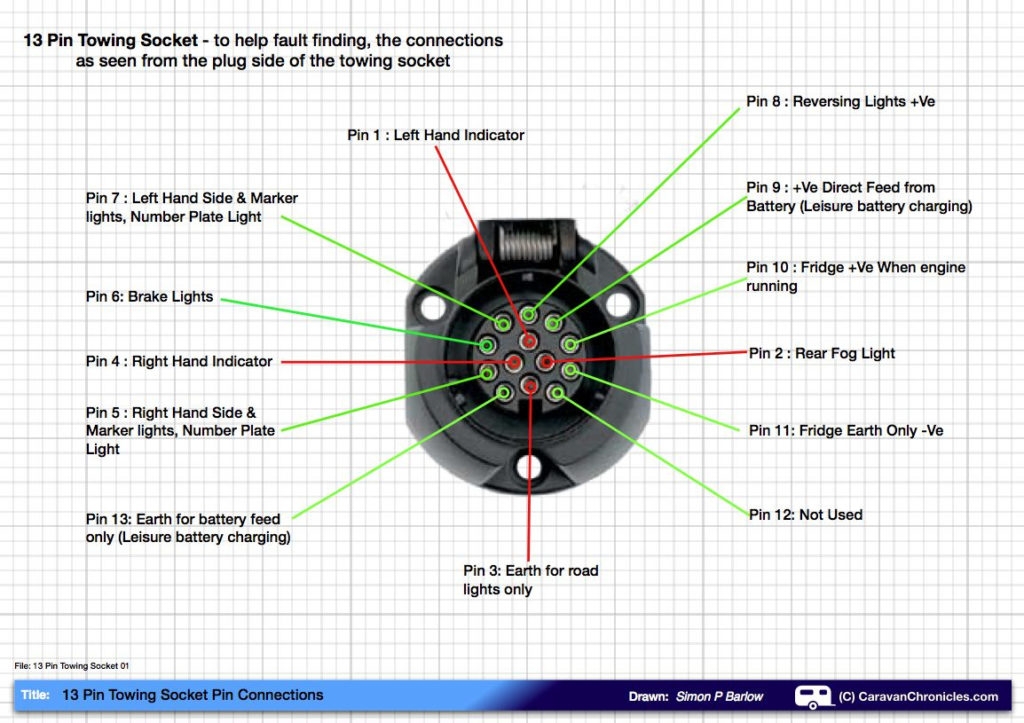

12v Trailer Socket Wiring Diagram Wiring Diagram (www.autowiringdiagram.net)

Truck And Trailer Wiring Diagram Wiring Diagram (www.autowiringdiagram.net)

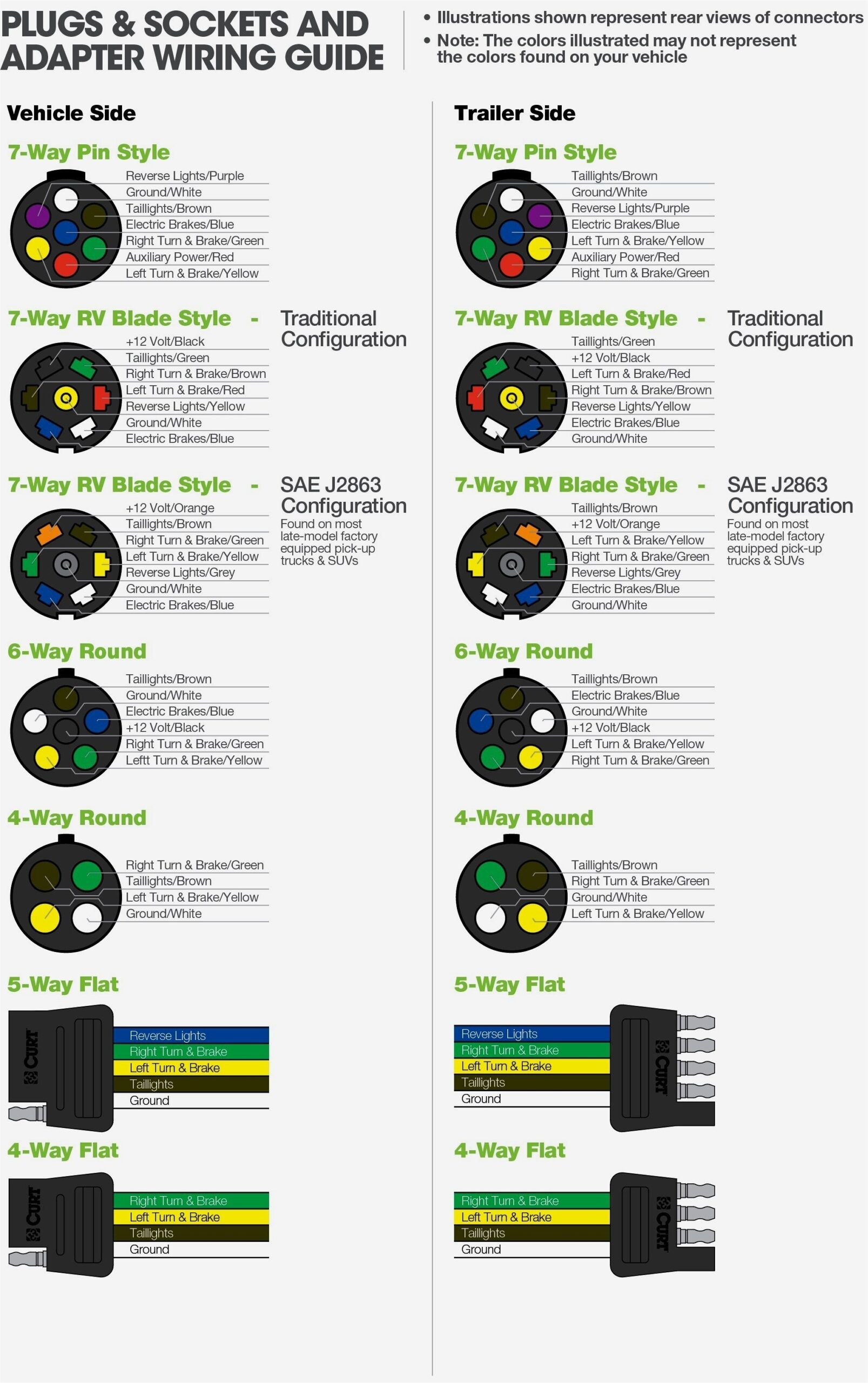

7 Wire Trailer Plug Wiring Diagram Wiring Diagrams Hubs 7 Way Plug (2020cadillac.com)

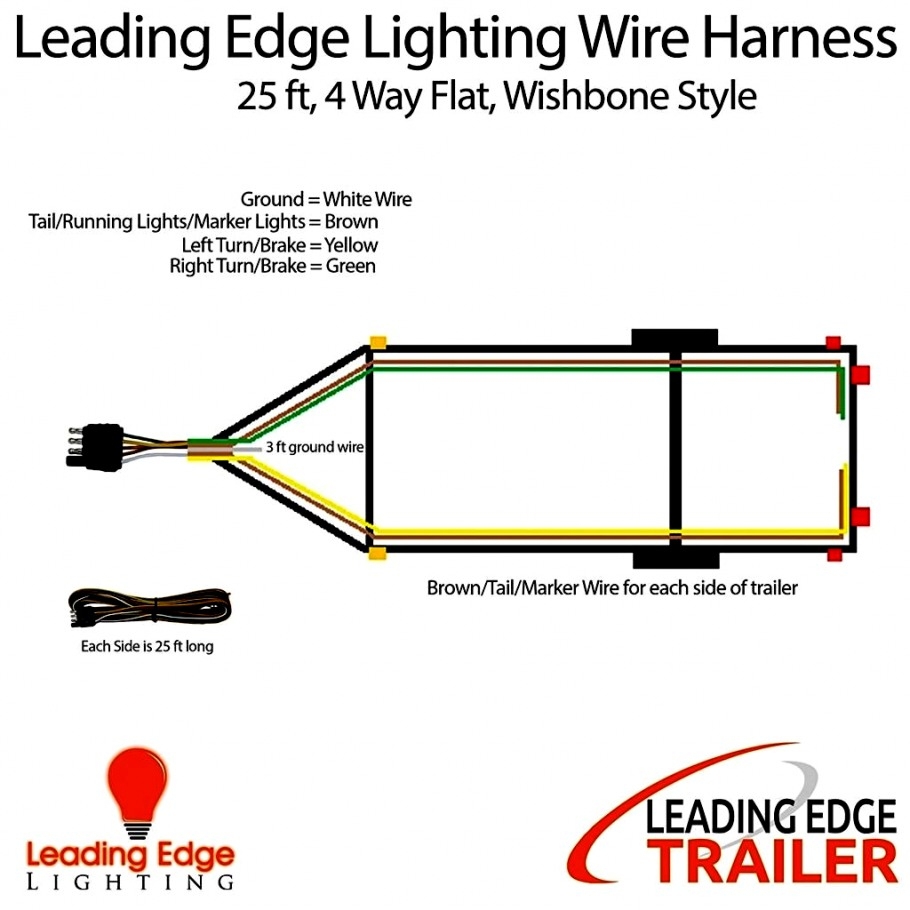

4 Way Trailer Plug Wiring Diagram Explained Moo Wiring (moowiring.com)
