When it comes to towing a trailer, having the right wiring harness is crucial for ensuring that your trailer lights work properly. A 4 pin trailer harness is one of the most common types used for small trailers, such as utility trailers, boat trailers, and camping trailers. This type of harness provides connections for the basic lighting functions – running lights, brake lights, and turn signals.
Understanding how to wire a 4 pin trailer harness is essential for anyone who plans to tow a trailer. Whether you’re installing a new harness or troubleshooting an existing one, having a clear wiring diagram can make the process much easier.
A Simple Guide To Wiring A 4 Pin Trailer Harness (electraschematics.com)

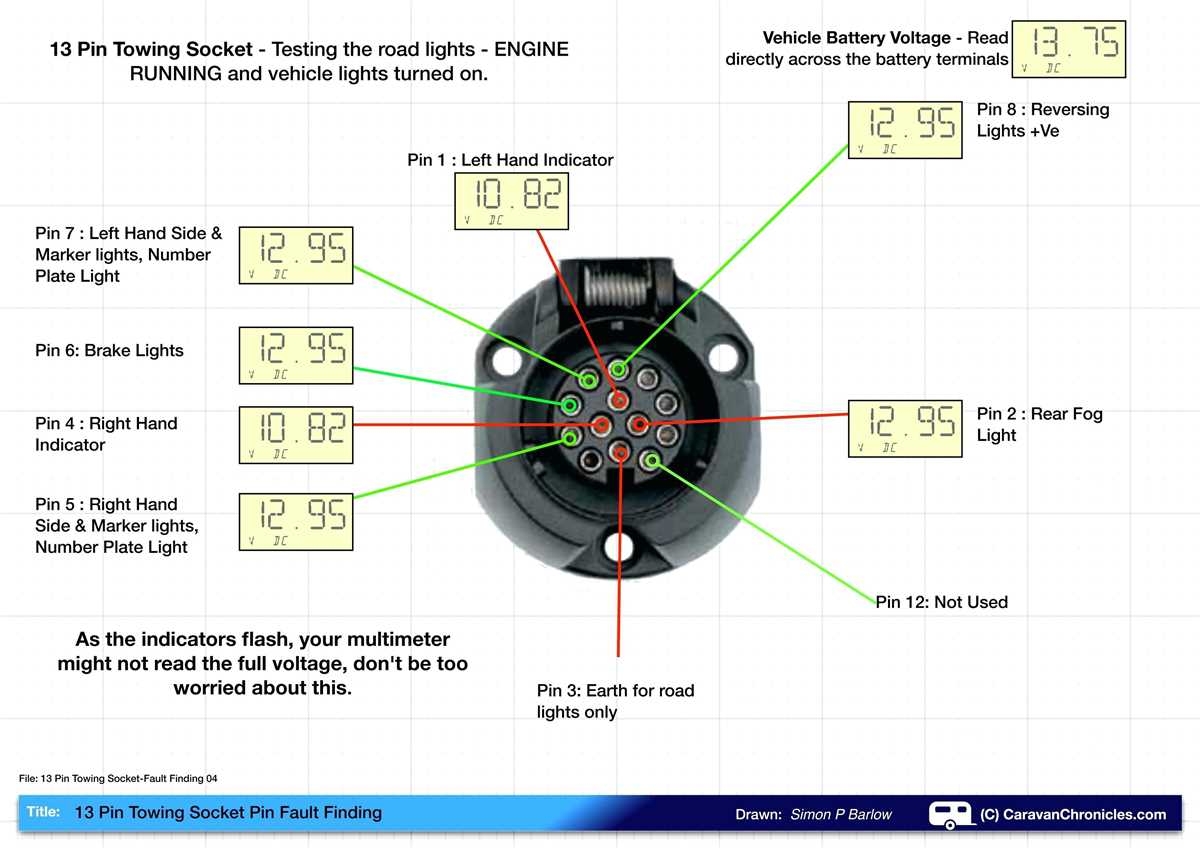

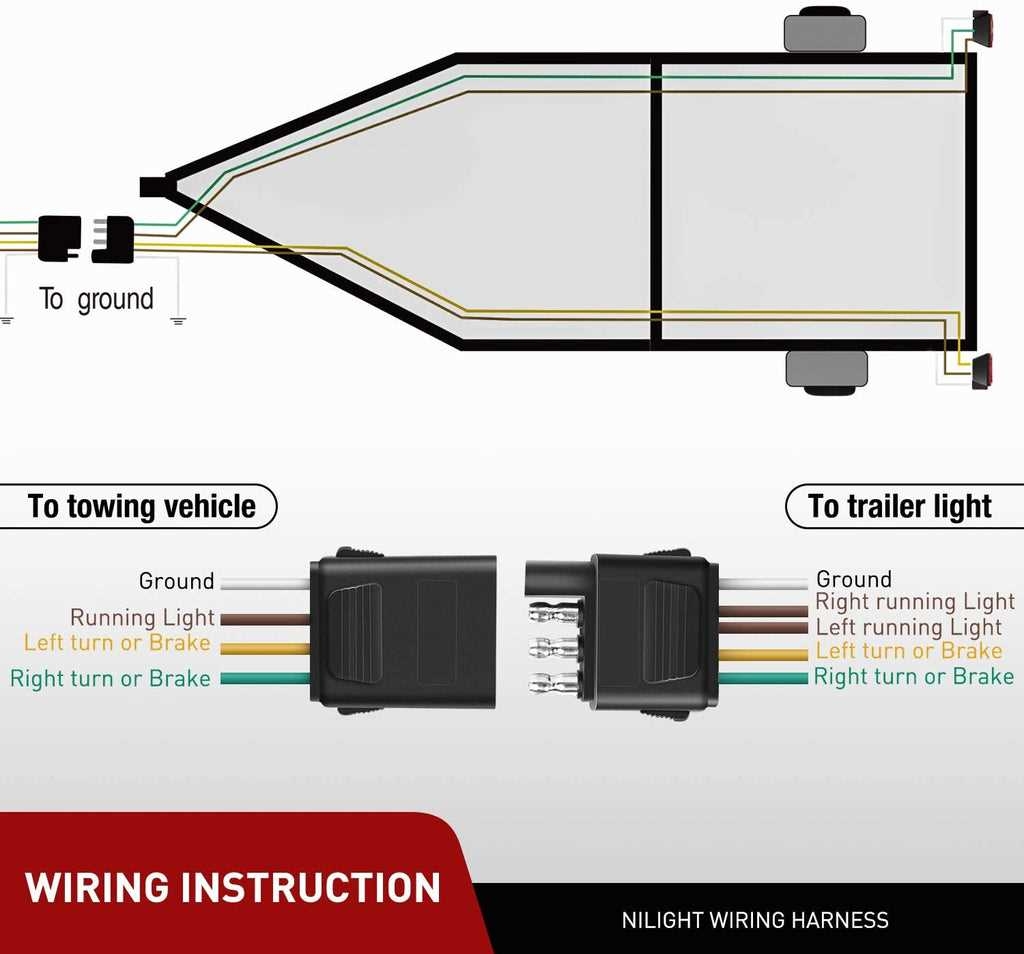

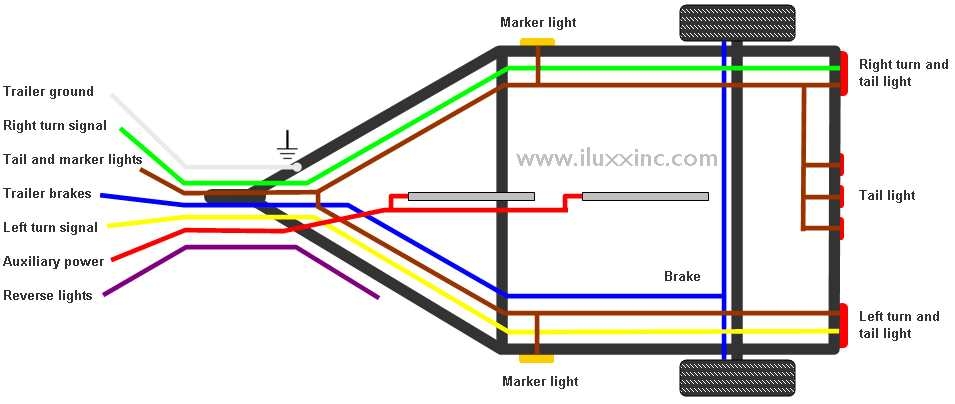

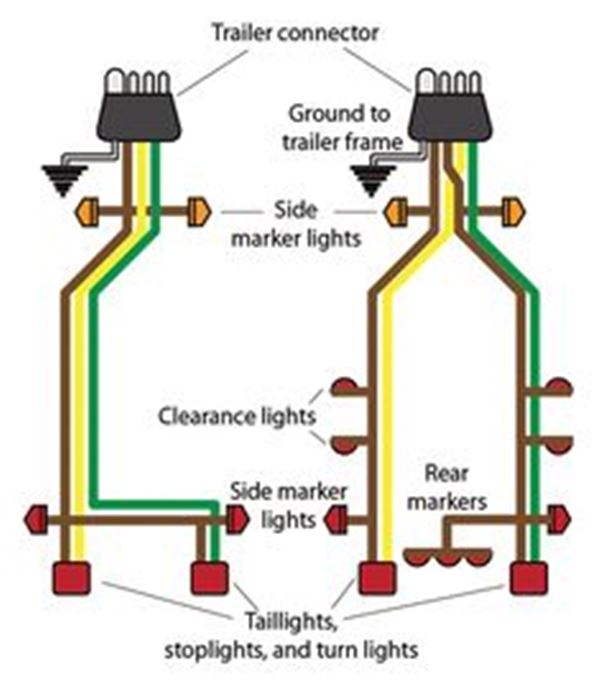

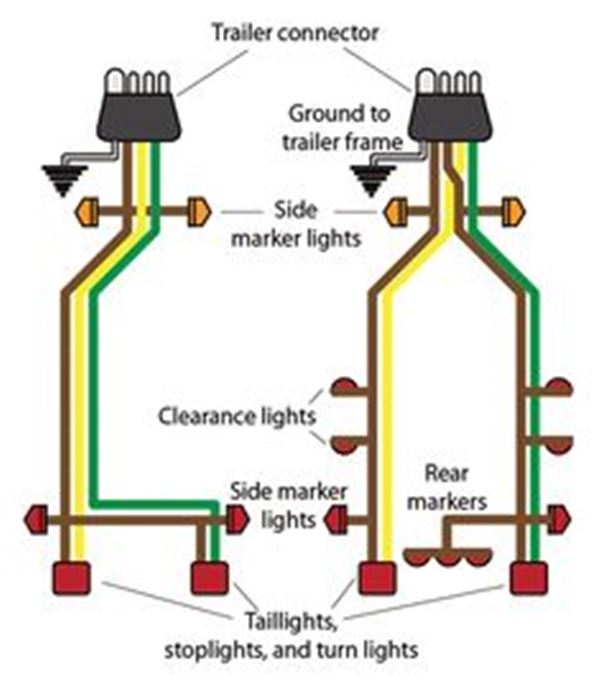

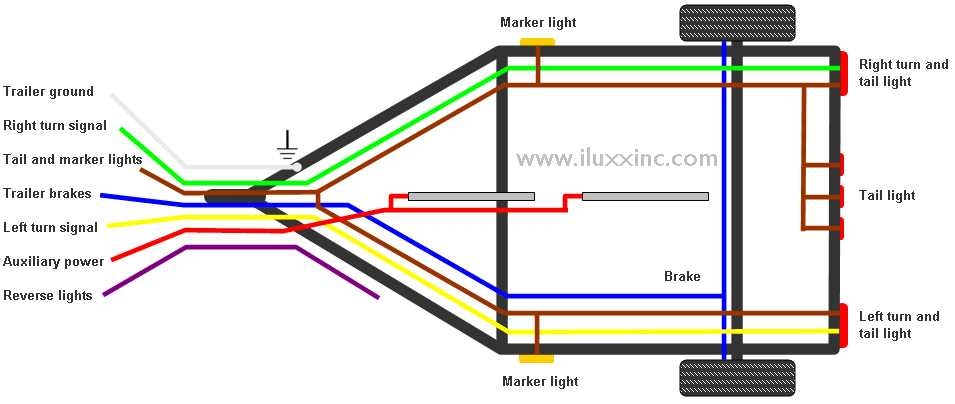

Wiring Instructions:

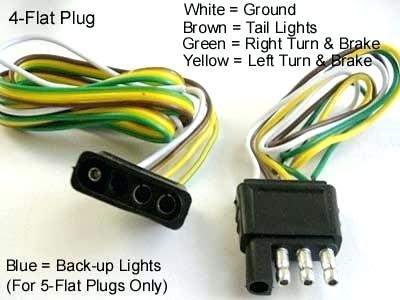

1. White Wire – Ground wire. Connect this wire to the trailer frame for a solid ground connection.
2. Brown Wire – Tail lights. Connect this wire to the running lights on the trailer.
3. Yellow Wire – Left turn/brake light. Connect this wire to the left turn/brake light on the trailer.
4. Green Wire – Right turn/brake light. Connect this wire to the right turn/brake light on the trailer.
5. Test the connections by turning on the vehicle’s lights and testing each function on the trailer. Make sure all lights are working properly before hitting the road.
By following these simple wiring instructions, you can ensure that your trailer lights function correctly and keep you safe while towing. Remember to always double-check your connections and test the lights before heading out on the road.

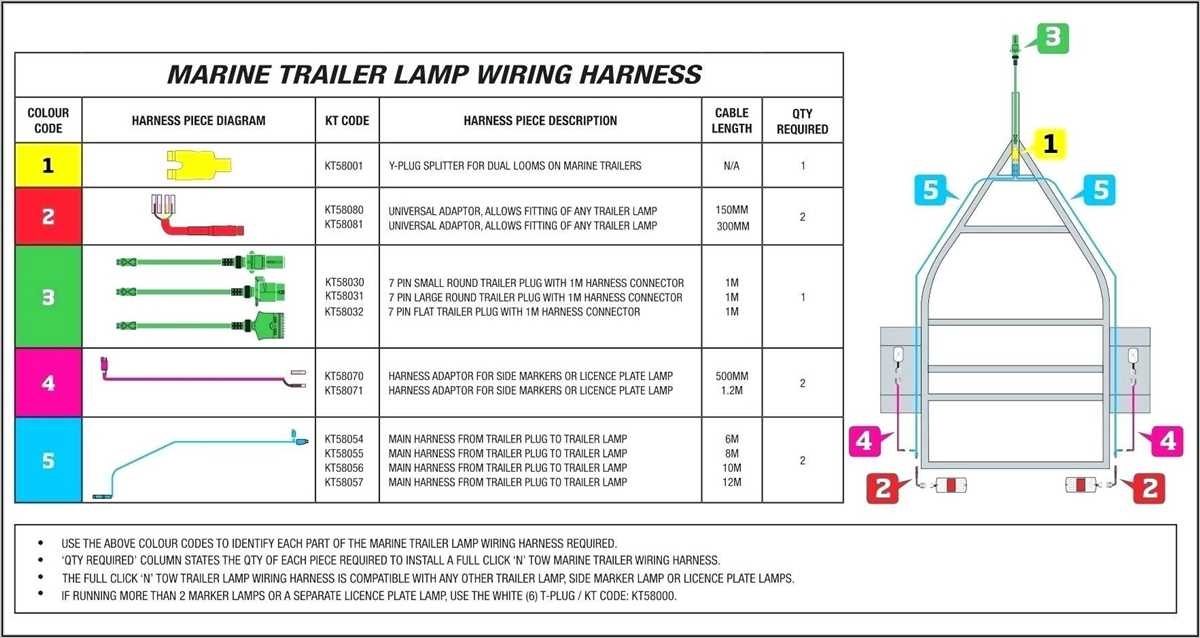

Having a properly wired 4 pin trailer harness is essential for safe towing. With the right wiring diagram and a little bit of know-how, you can easily install or troubleshoot your trailer harness to ensure that your lights work properly every time you tow.
