When it comes to wiring a single light switch, it is important to understand the basic principles of electrical wiring. A single light switch controls a single light fixture, and it can be easily installed by following a wiring diagram. This simple project can be completed by DIY enthusiasts with some basic tools and knowledge.
Before starting the wiring process, it is essential to turn off the power to the circuit at the breaker box. This will ensure safety while working on the electrical connections. It is also important to gather the necessary tools and materials, including a screwdriver, wire strippers, electrical tape, and a voltage tester.

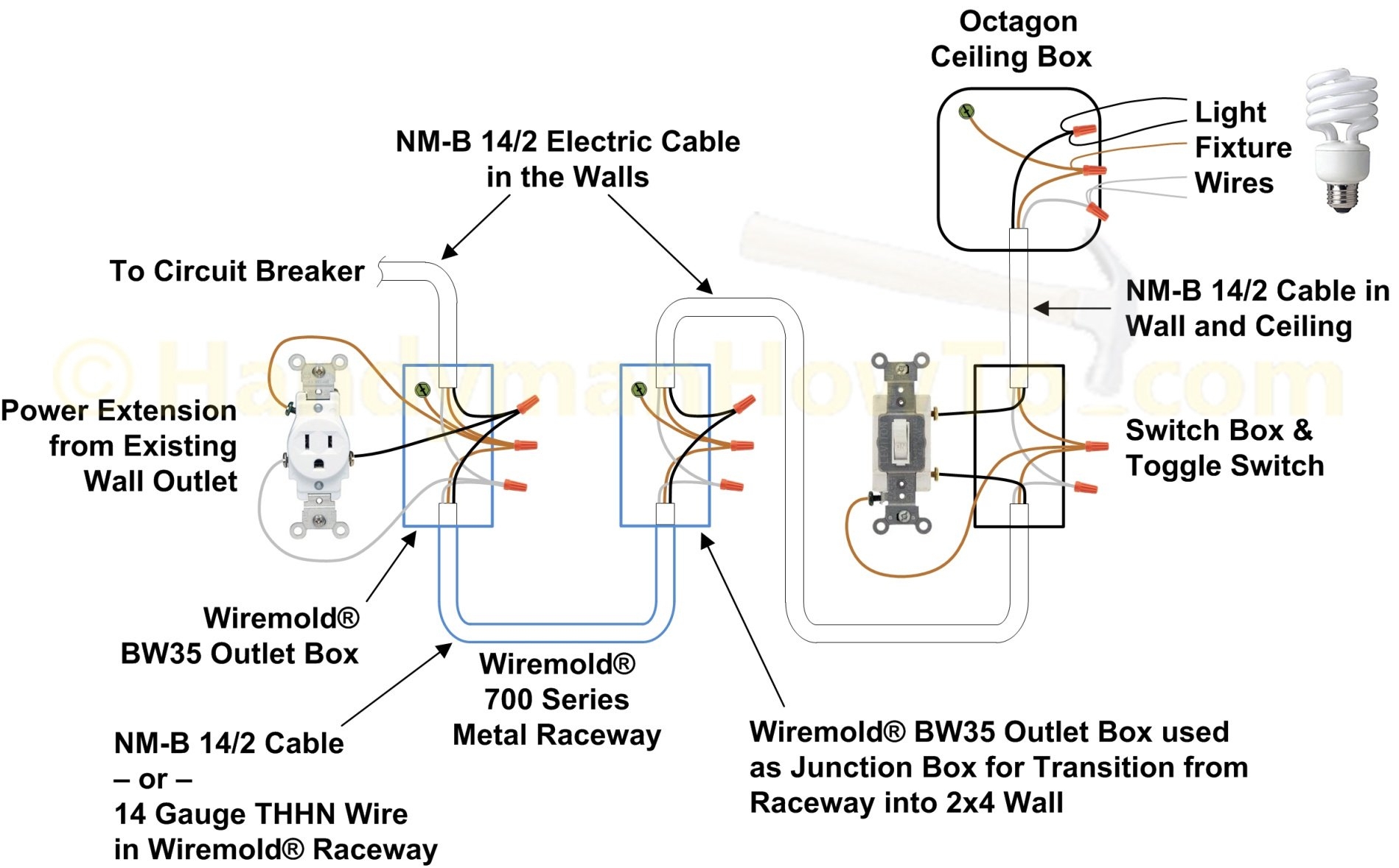

How To Wire A Light Switch Electrical Switch Wiring Diagram Wiring (2020cadillac.com)
Begin by removing the cover plate of the existing light switch to expose the wiring inside. Take note of the current wiring configuration before disconnecting the wires. The common wire (typically black) should be connected to the terminal screw on the switch, while the hot wire (usually black or red) should be connected to the other terminal screw.
Next, connect the ground wire (green or bare copper) to the green grounding screw on the switch. Make sure the wires are securely attached to the terminal screws and tighten them with a screwdriver. Once the connections are complete, carefully tuck the wires back into the electrical box and attach the switch to the box using the mounting screws.
After securing the switch in place, replace the cover plate and turn the power back on at the breaker box. Test the light switch by flipping it on and off to ensure that the light fixture responds accordingly. If the light does not turn on, double-check the wiring connections and troubleshoot any issues before proceeding.
In conclusion, wiring a single light switch is a straightforward task that can be accomplished with the right tools and knowledge. By following a wiring diagram and taking proper safety precautions, DIY enthusiasts can successfully install a new light switch in their home. Remember to consult a professional electrician if you encounter any difficulties or are unsure about the wiring process.
