When it comes to setting up a network in your home or office, Cat 5 cables are a popular choice for their reliability and affordability. These cables are used to connect computers, routers, switches, and other network devices to create a wired network. To ensure that your network functions properly, it is important to have a clear understanding of how to wire Cat 5 cables correctly.
A wiring diagram for Cat 5 cable provides a visual representation of how the cables should be connected. It shows the arrangement of the wires inside the cable, making it easier to follow and ensuring that the connections are made correctly. By following a wiring diagram, you can avoid common mistakes that may lead to network issues such as slow speeds or dropped connections.

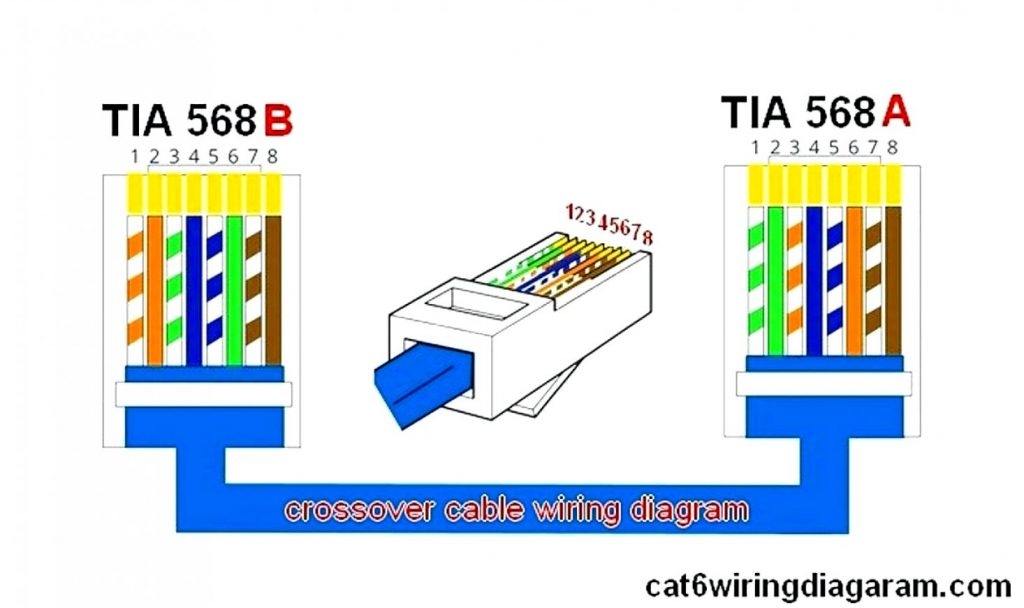

Cat 5 Ethernet Wire Diagram Wiring Diagram Data Ethernet Cable (2020cadillac.com)
When wiring Cat 5 cables, it is important to use the correct tools and follow the proper procedures. The most common wiring standard for Cat 5 cables is T568B, which specifies the order in which the wires should be connected to the RJ45 connector. By following this standard, you can ensure that your cables are compatible with most network devices and that your network runs smoothly.

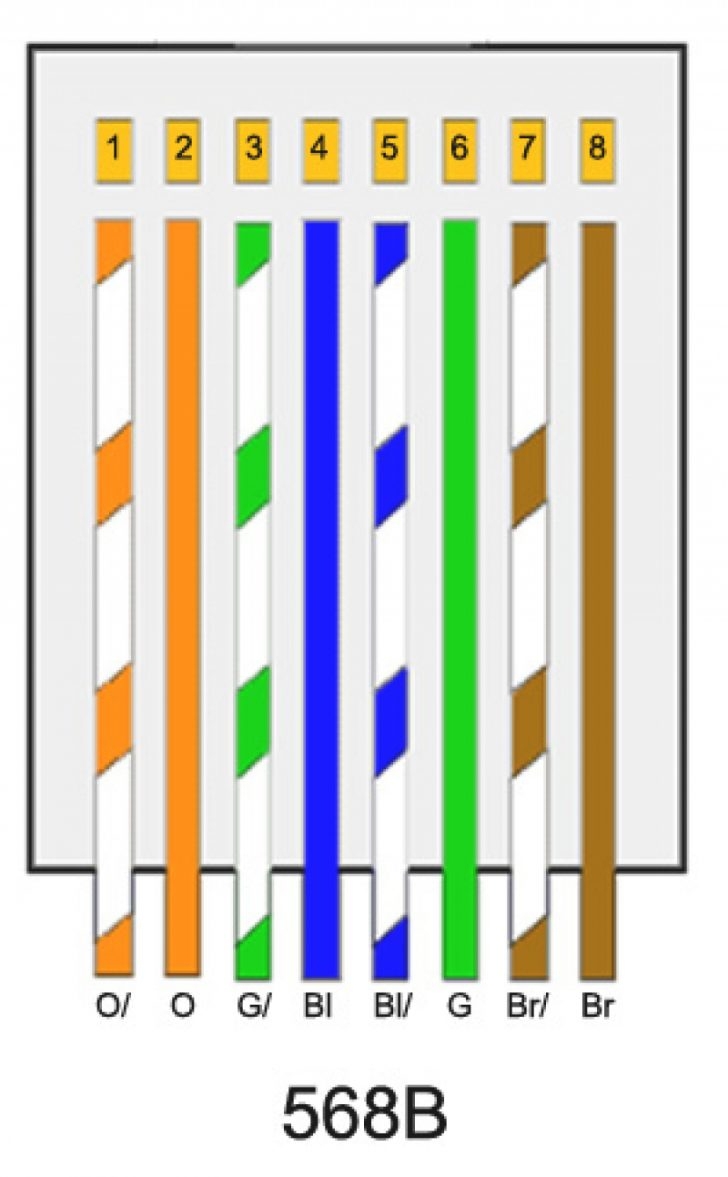

To wire Cat 5 cables using the T568B standard, start by stripping the outer jacket of the cable and separating the twisted pairs of wires. Next, arrange the wires in the following order from left to right: white-orange, orange, white-green, blue, white-blue, green, white-brown, and brown. Finally, insert the wires into the RJ45 connector and crimp it to secure the connections.
Once you have wired your Cat 5 cables correctly, you can test them using a cable tester to ensure that there are no continuity or connectivity issues. If the test is successful, you can then use the cables to connect your devices and set up your network. By following a wiring diagram and using the proper techniques, you can create a reliable wired network that meets your needs.
In conclusion, wiring Cat 5 cables is a straightforward process that can be easily accomplished with the right tools and knowledge. By following a wiring diagram and using the T568B standard, you can ensure that your cables are connected correctly and that your network functions smoothly. With a properly wired network, you can enjoy fast and reliable internet connectivity for all your devices.
