When it comes to towing a trailer, having the proper wiring in place is crucial for safety and functionality. A 4 wire trailer wiring diagram is a handy tool to ensure that your trailer lights, brakes, and signals are all working properly. Whether you’re a seasoned pro or new to towing, understanding how to wire a trailer can save you time and headaches on the road.

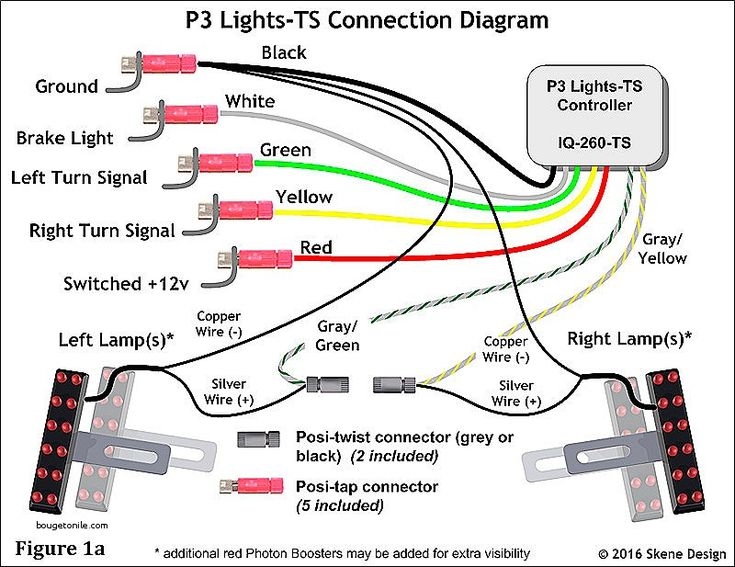

Before diving into the wiring process, it’s important to have a basic understanding of the components involved. The 4 wire system consists of a ground wire, left turn signal wire, right turn signal wire, and a brake light wire. Each wire serves a specific function in ensuring that your trailer is visible and safe for other drivers on the road.

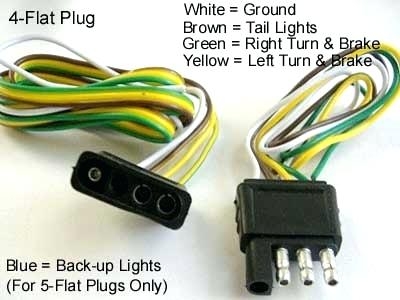

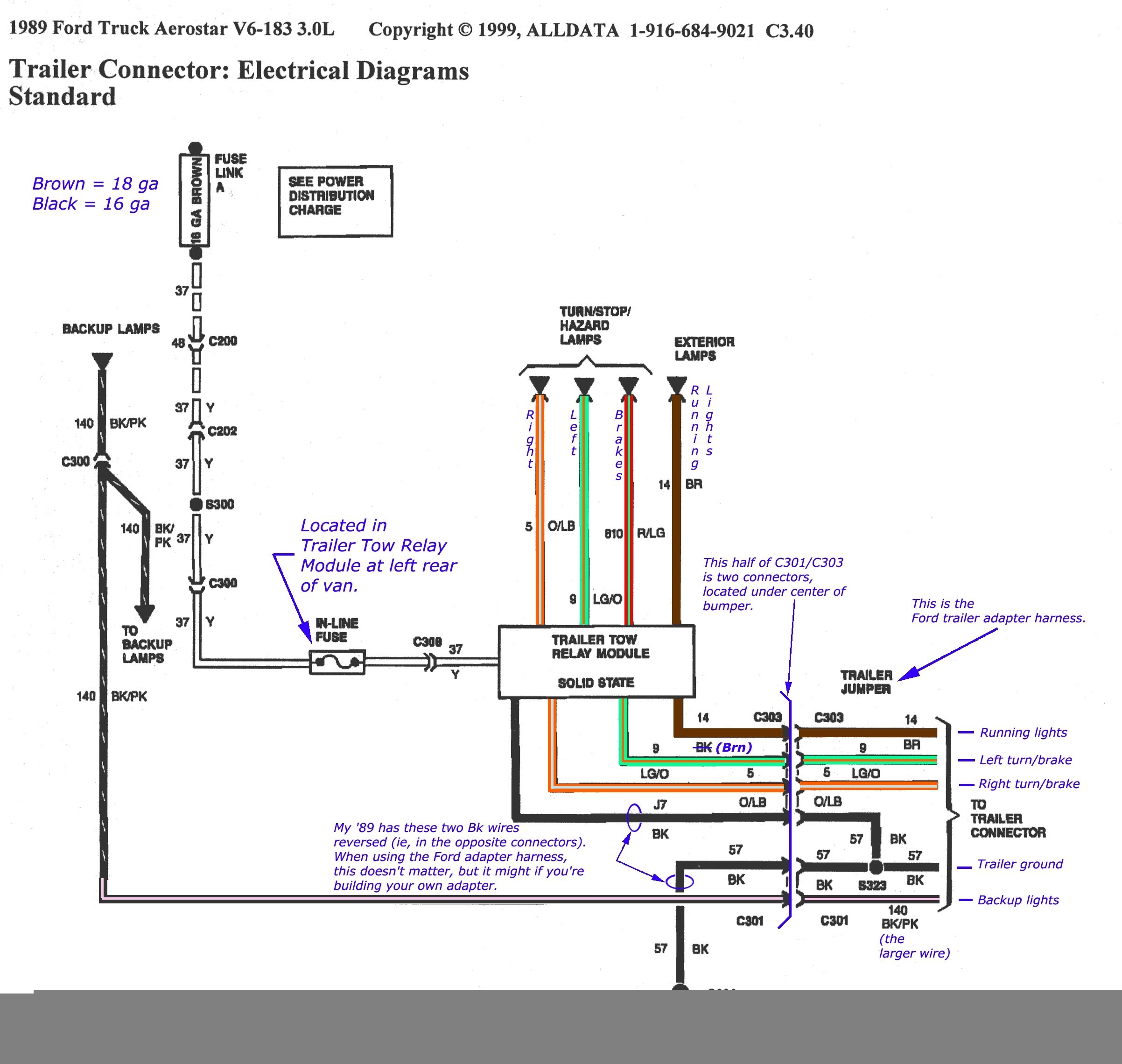

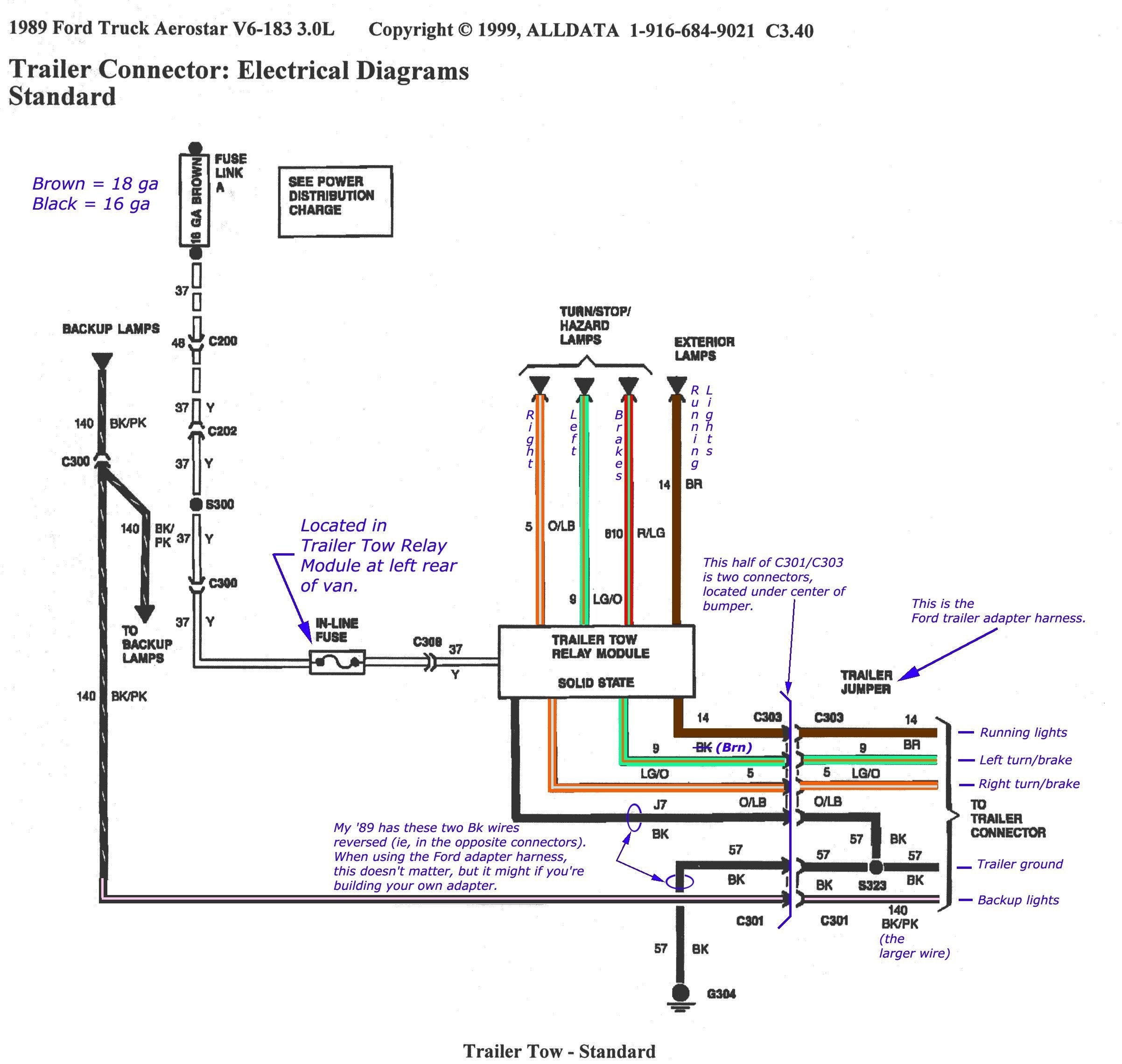

Trailer Hitch Wiring Harness Diagram (www.chanish.org)

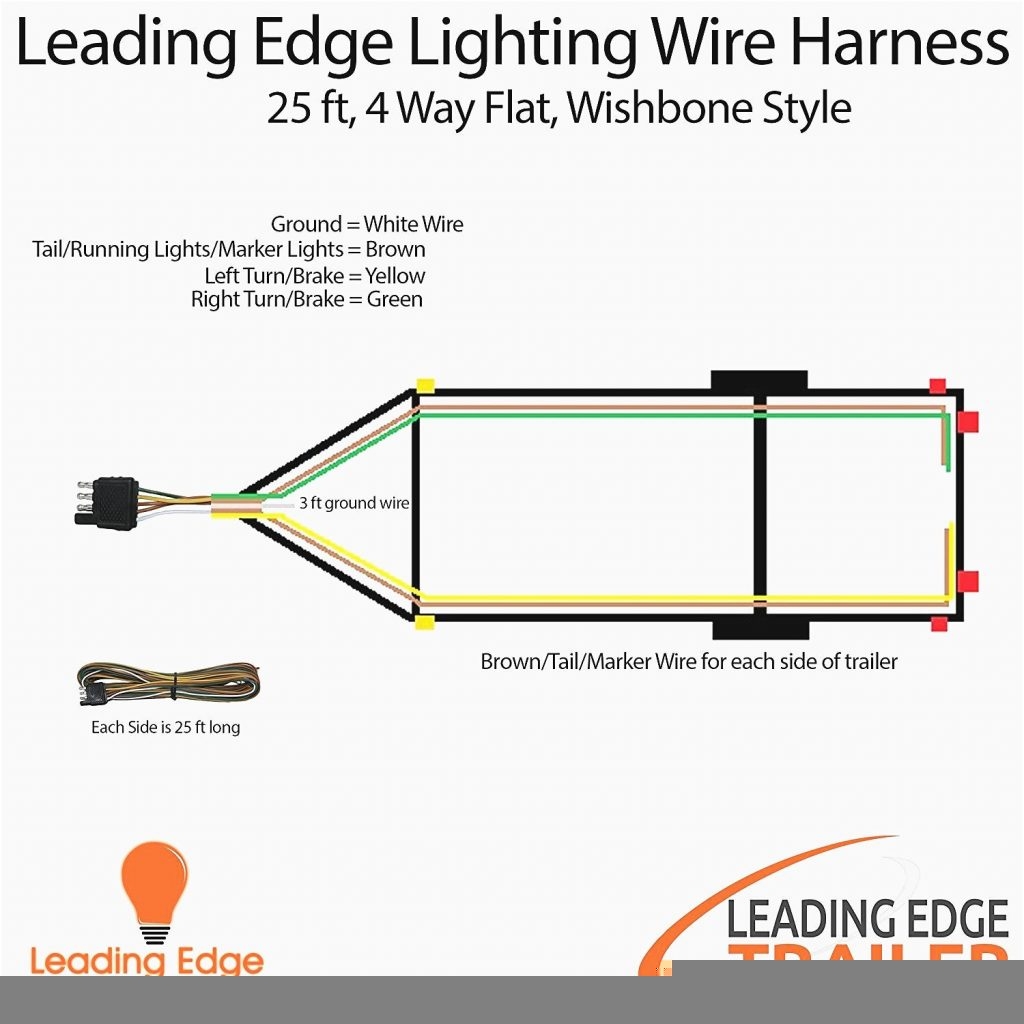

Starting with the ground wire, this is typically a white wire that connects the trailer frame to the towing vehicle’s frame. This ensures that there is a solid electrical connection between the two, allowing for proper functioning of the trailer lights and signals. Next, the left turn signal wire is usually yellow, while the right turn signal wire is green. These wires are responsible for activating the corresponding turn signals on the trailer when the towing vehicle signals a turn.
The brake light wire, typically red, is crucial for alerting other drivers when you are slowing down or stopping. This wire connects to the brake lights on the trailer, providing an additional safety feature for those traveling behind you. By following a 4 wire trailer wiring diagram, you can easily identify and connect each wire to its proper location, ensuring that your trailer is road-worthy and compliant with safety regulations.
In conclusion, understanding how to wire a 4 wire trailer is essential for safe and efficient towing. By following a wiring diagram and ensuring that each wire is properly connected, you can enjoy peace of mind knowing that your trailer lights, signals, and brakes are all functioning as they should. Whether you’re hauling a boat, camper, or cargo trailer, proper wiring is key to a successful towing experience.
