Trailer Wiring Diagram 7 Pin

When it comes to towing a trailer, having the proper wiring is essential to ensure safe and reliable operation. One of the most common wiring setups for trailers is the 7-pin connector. This type of connector provides power for all the necessary functions of a trailer, including brake lights, turn signals, and more.

Understanding how to properly wire a trailer with a 7-pin connector can make the towing process much easier and safer. By following a wiring diagram, you can ensure that all the necessary connections are made correctly, preventing any potential issues on the road.

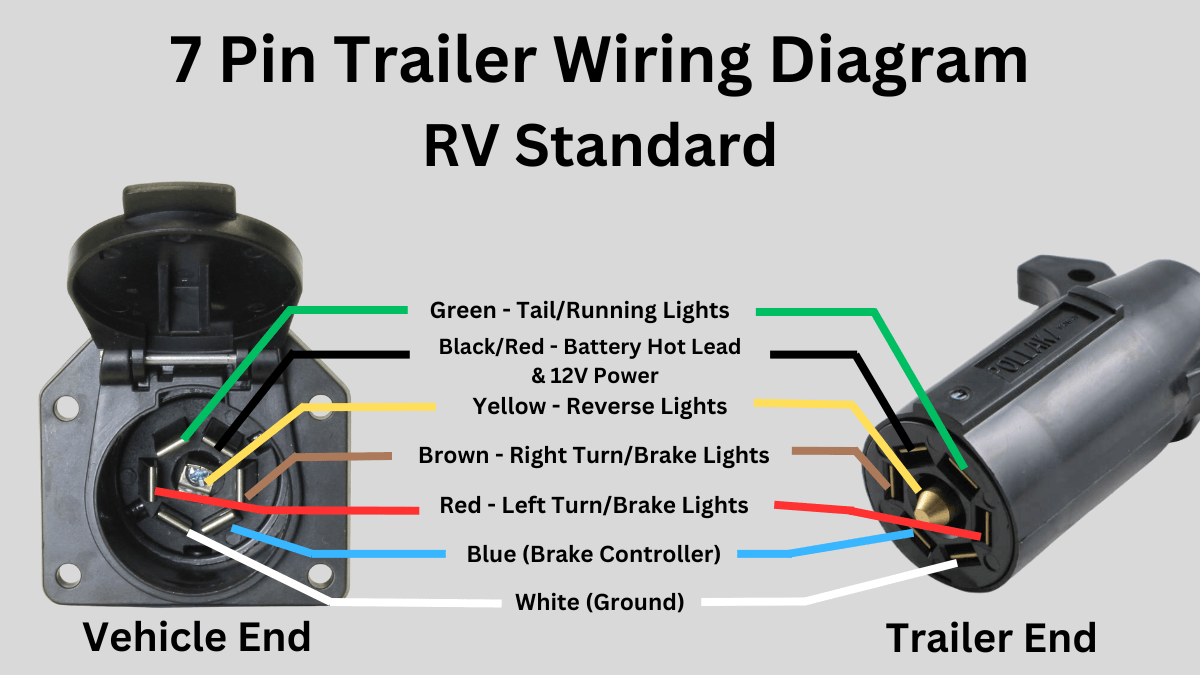

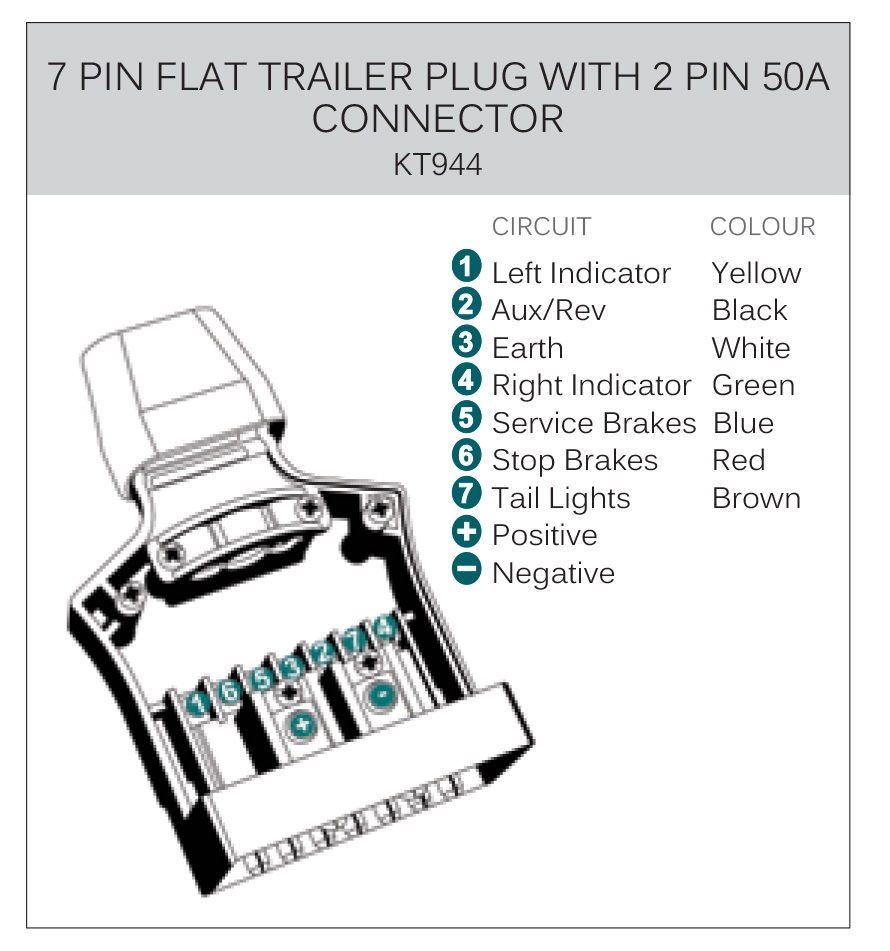

DIAGRAM 7 Pin Wiring Diagram Trailer Plug MYDIAGRAM ONLINE (mydiagram.online)

Typically, a 7-pin trailer wiring diagram will include color-coded wires for easy identification. Each wire will correspond to a specific function on the trailer, such as ground, brake lights, turn signals, and more. By following the diagram carefully, you can easily connect the trailer wiring harness to your vehicle’s electrical system.

It’s important to note that not all vehicles come equipped with a 7-pin trailer connector. In some cases, an adapter may be needed to convert a 4-pin or 5-pin connector to a 7-pin connector. These adapters are readily available at most automotive stores and are relatively easy to install.

Properly wiring your trailer with a 7-pin connector is crucial for safe towing. By ensuring that all the necessary connections are made correctly, you can avoid potential electrical issues while on the road. Whether you’re towing a boat, camper, or utility trailer, having the proper wiring setup will give you peace of mind during your travels.

In conclusion, a trailer wiring diagram for a 7-pin connector is a valuable resource for anyone looking to tow a trailer safely and efficiently. By following the diagram and making the proper connections, you can ensure that your trailer’s electrical system functions properly. Whether you’re a seasoned trailer owner or a novice, understanding how to wire a trailer with a 7-pin connector is essential for a successful towing experience.

Download and Print Trailer Wiring Diagram 7 Pin Listed below

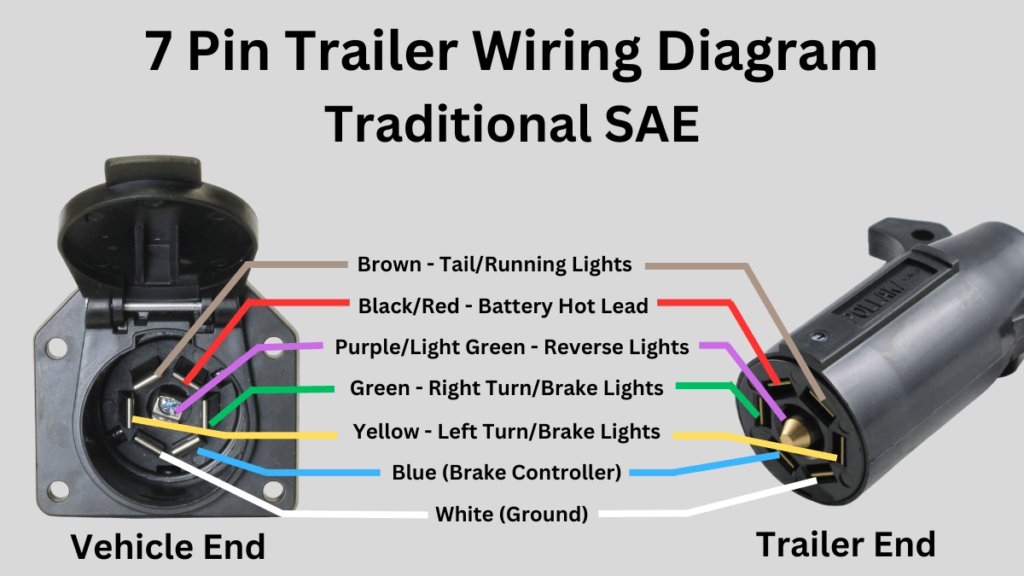

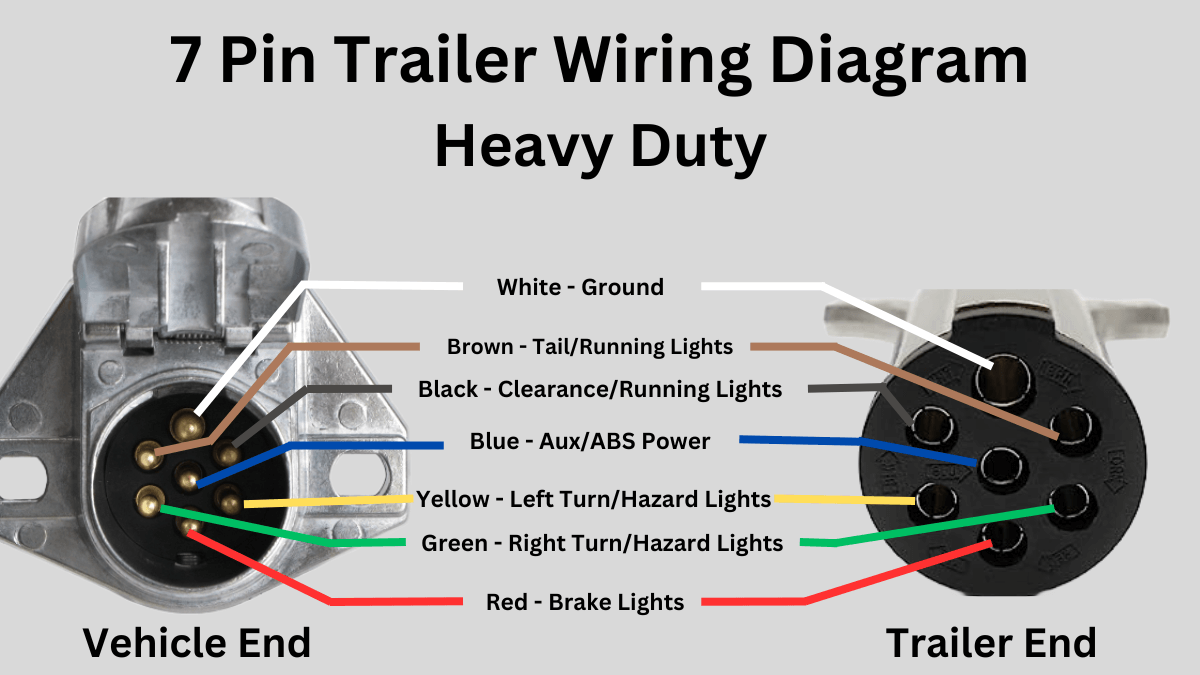

How To Connect Your 7 Pin Trailer Wiring Easily Diagram Included (offroadofficial.com)

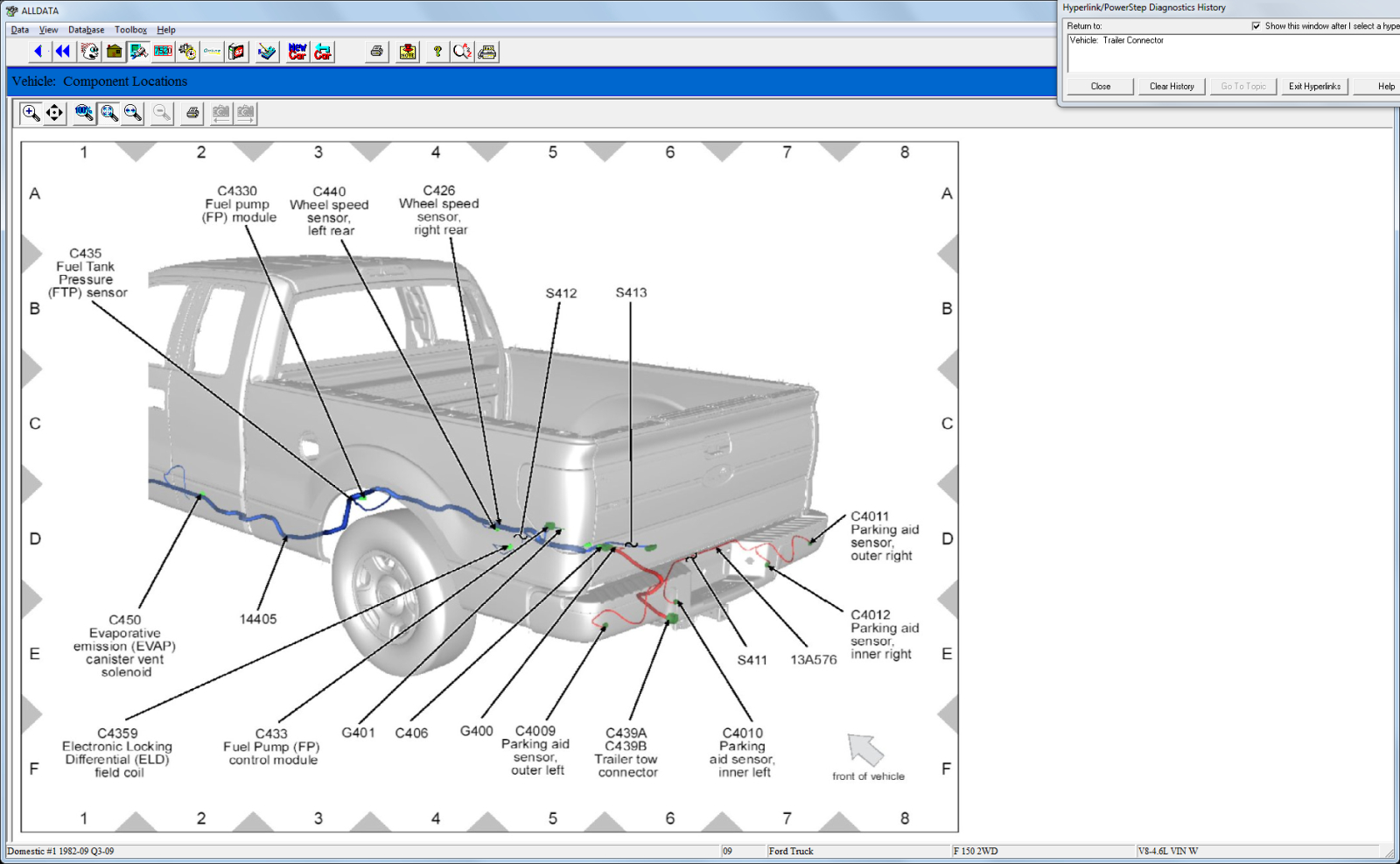

Ford F 250 Trailer Plug Wiring Diagram 7 Pin Wiring Diagrams Hubs (2020cadillac.com)
