When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A 6 pin trailer wiring diagram is a handy tool for ensuring that your trailer lights and brakes are working correctly. With the right diagram, you can easily connect your trailer to your vehicle and hit the road with confidence.
Whether you’re hauling a boat, RV, or utility trailer, a 6 pin wiring diagram will show you how to connect your trailer lights, brakes, and other electrical components to your vehicle. This diagram is especially useful for those who are new to towing and may not be familiar with the wiring process.

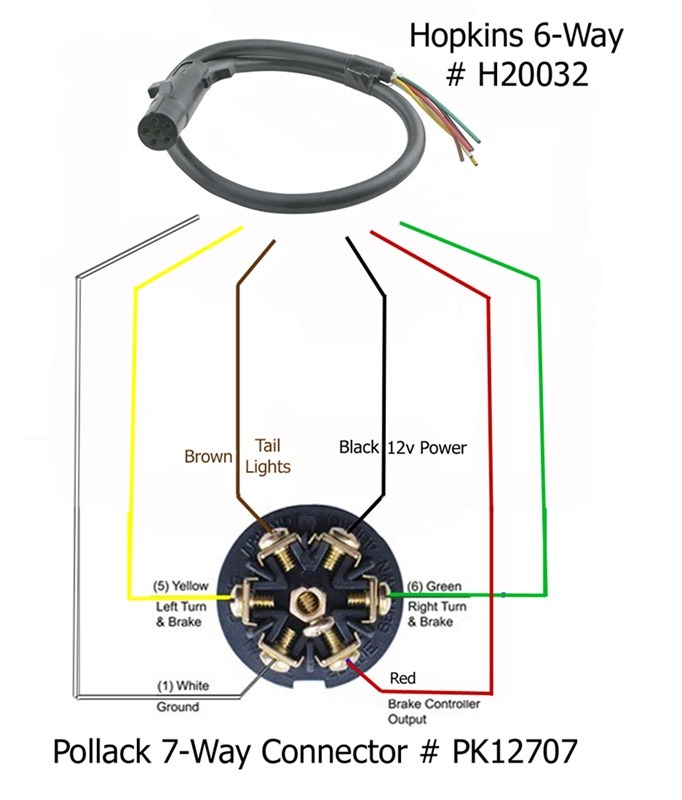

6 Pin To 7 Pin Trailer Wiring Diagram Keep Going And Going And Wiring (wiringapps.blogspot.com)

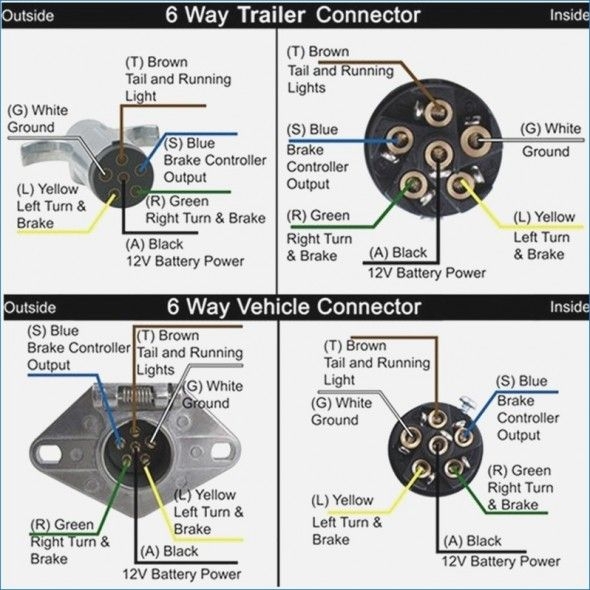

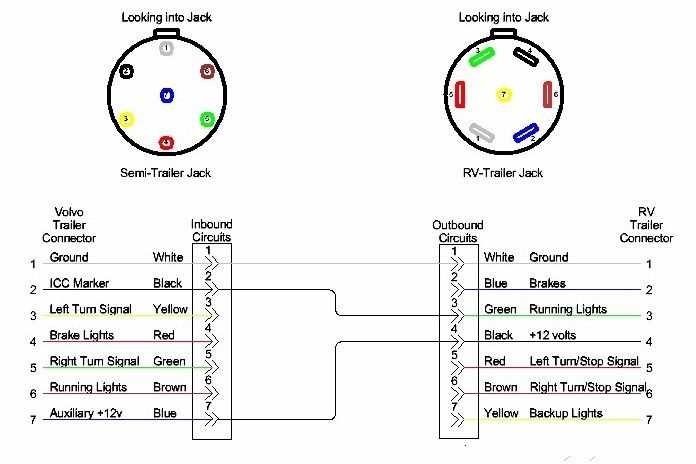

Typically, a 6 pin trailer wiring diagram will include color-coded wires that correspond to specific functions, such as brake lights, turn signals, and ground connections. By following the diagram carefully, you can ensure that each wire is connected correctly and that your trailer is safe to tow.

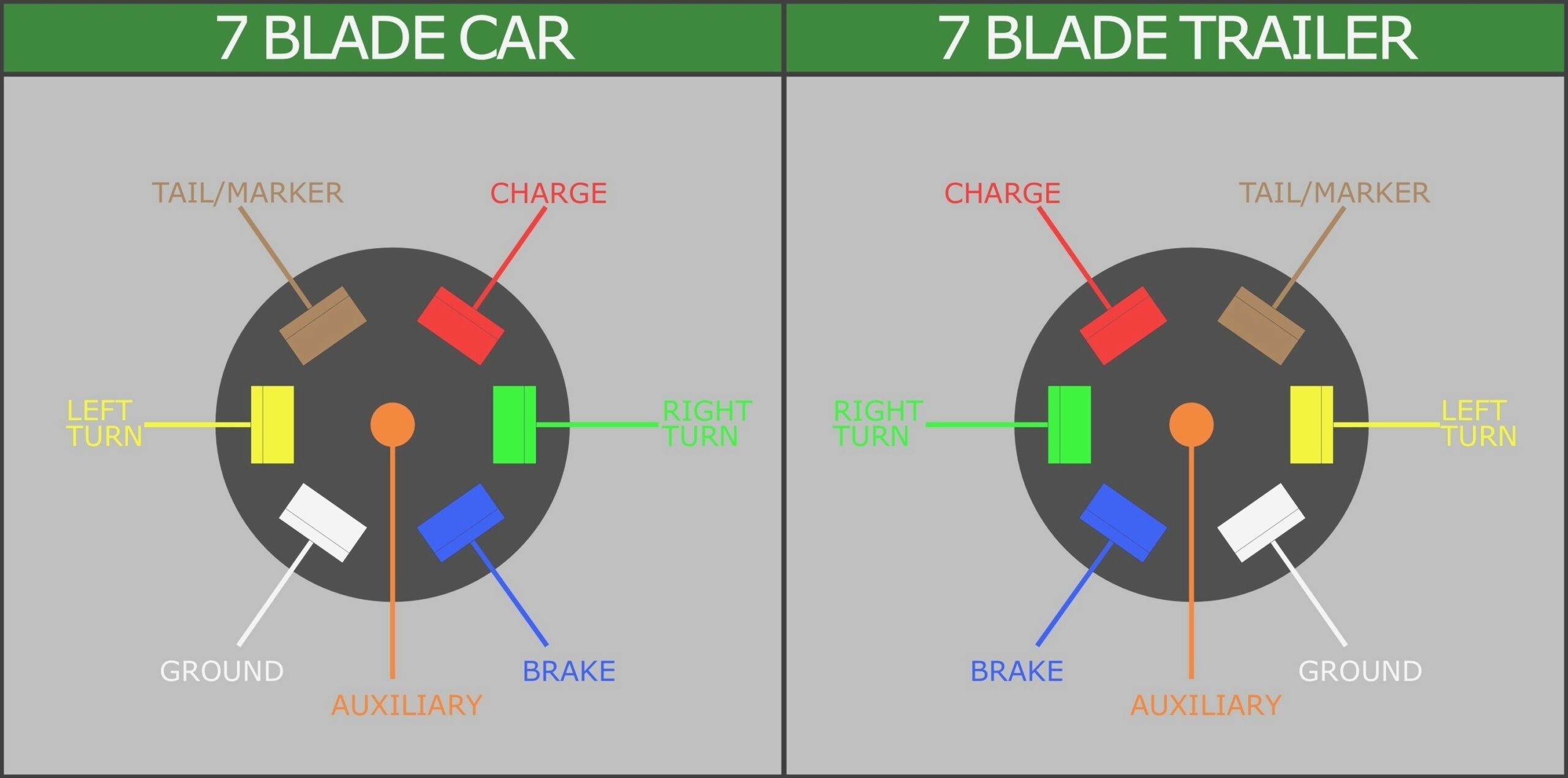

It’s important to note that not all trailers will have a 6 pin wiring system. Some trailers may have a 4 pin or 7 pin system, depending on their size and electrical needs. However, for those with a 6 pin system, having a wiring diagram on hand can make the installation process much easier.
In conclusion, a 6 pin trailer wiring diagram is a valuable resource for anyone who tows trailers regularly. By following the diagram closely and double-checking your connections, you can ensure that your trailer lights and brakes are functioning properly. Whether you’re a seasoned pro or a newbie to towing, having a wiring diagram on hand can help make the process smoother and safer for everyone on the road.
