When it comes to wiring a three-way switch, it can be a bit confusing for those who are not familiar with electrical work. However, with the right diagram and understanding of the process, it can be a simple task to accomplish. A three-way switch is used to control a light or group of lights from two different locations.
Essentially, a three-way switch allows you to turn a light on or off from two different switches. This is commonly used in stairways, hallways, and large rooms where multiple switches are needed for convenience. Understanding the wiring diagram is crucial in order to ensure the switches function properly.

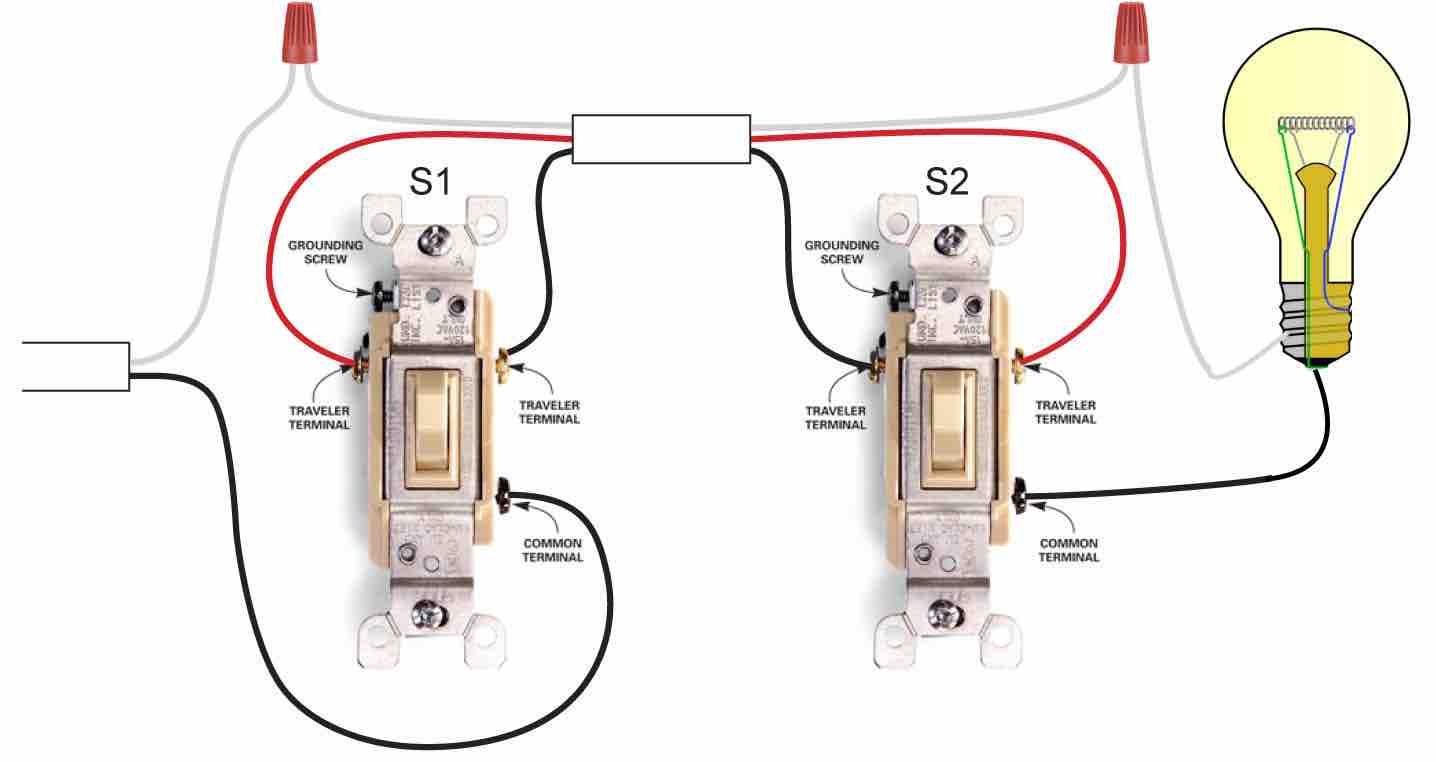

Video On How To Wire A Three Way Switch Electrical Switch Wiring (2020cadillac.com)

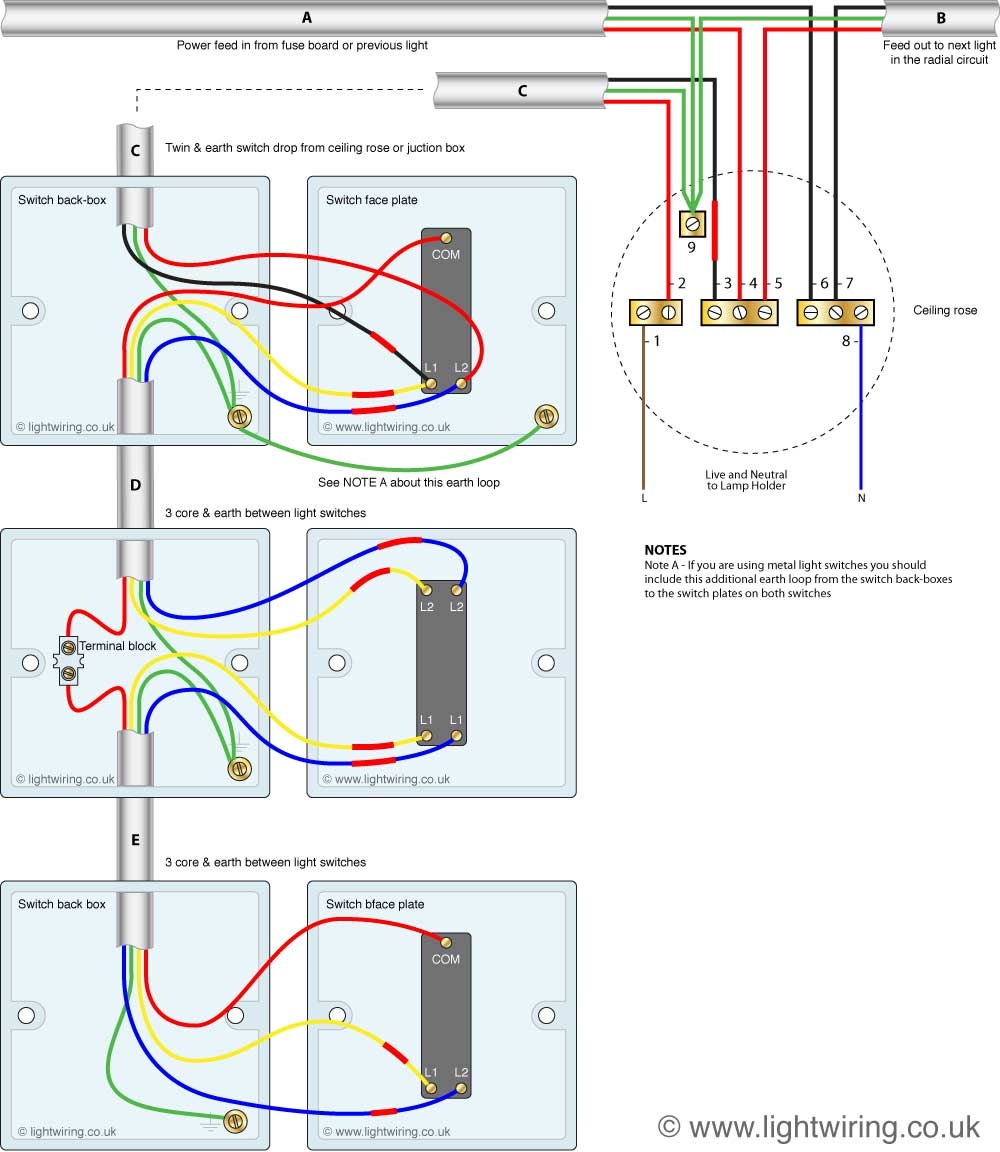

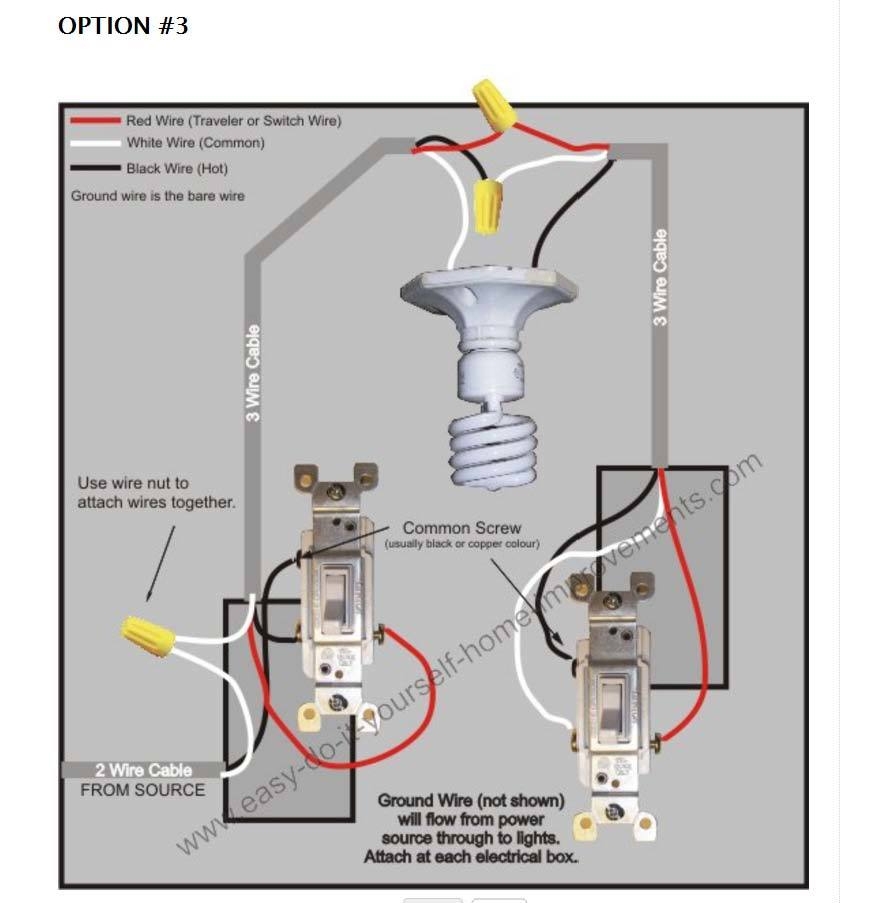

Three Way Wiring Diagram

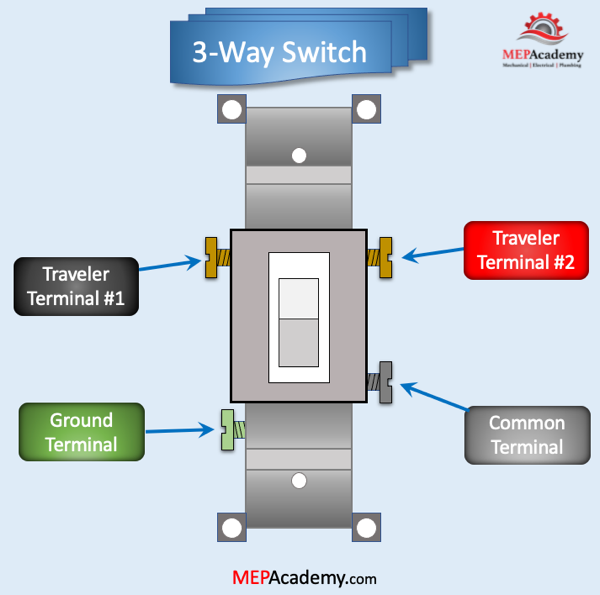

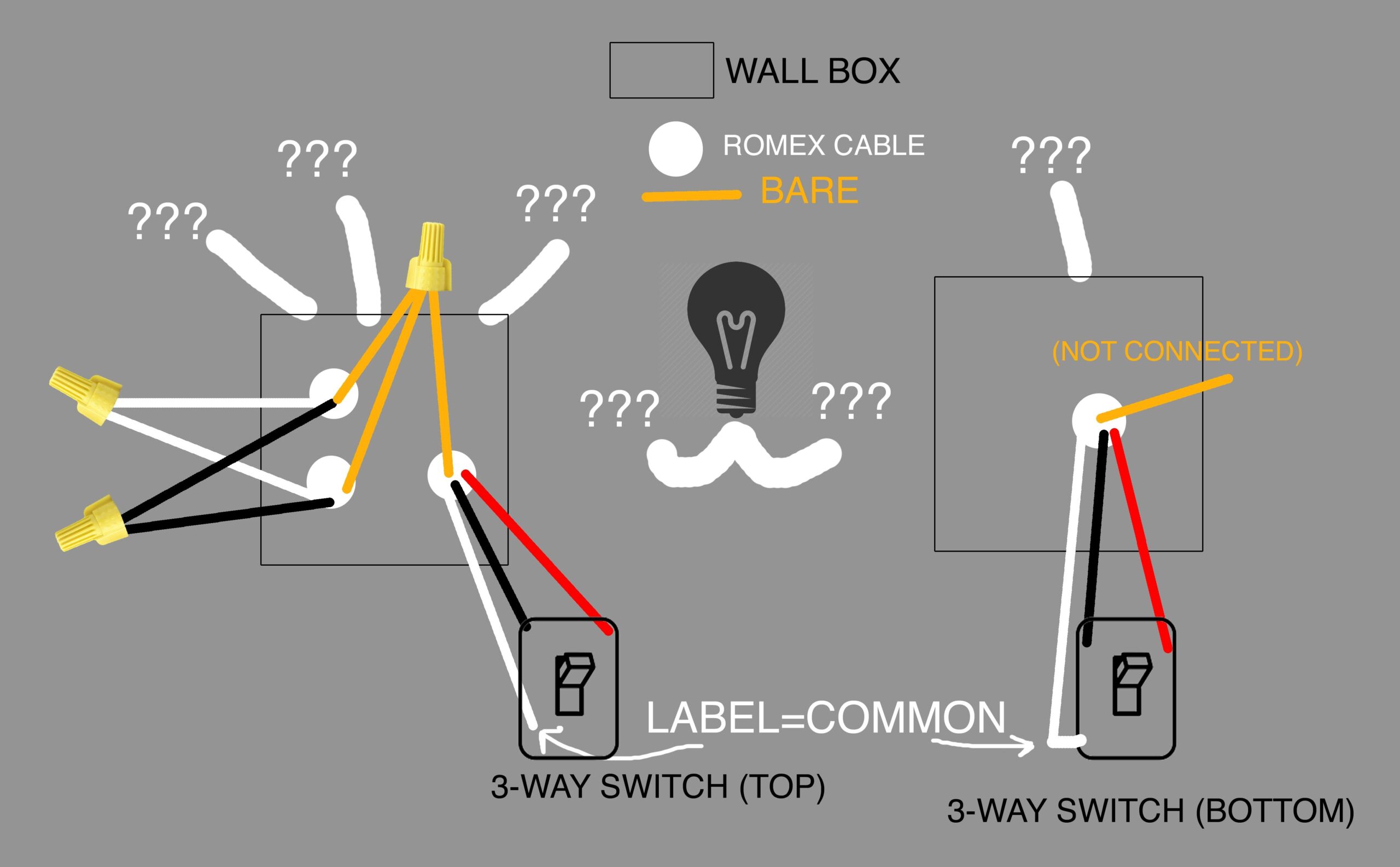

The wiring diagram for a three-way switch involves three terminals – one common terminal and two traveler terminals. The common terminal is usually labeled as “COM” and is where the power source is connected. The traveler terminals are labeled as “T1” and “T2” and are where the switches are connected.

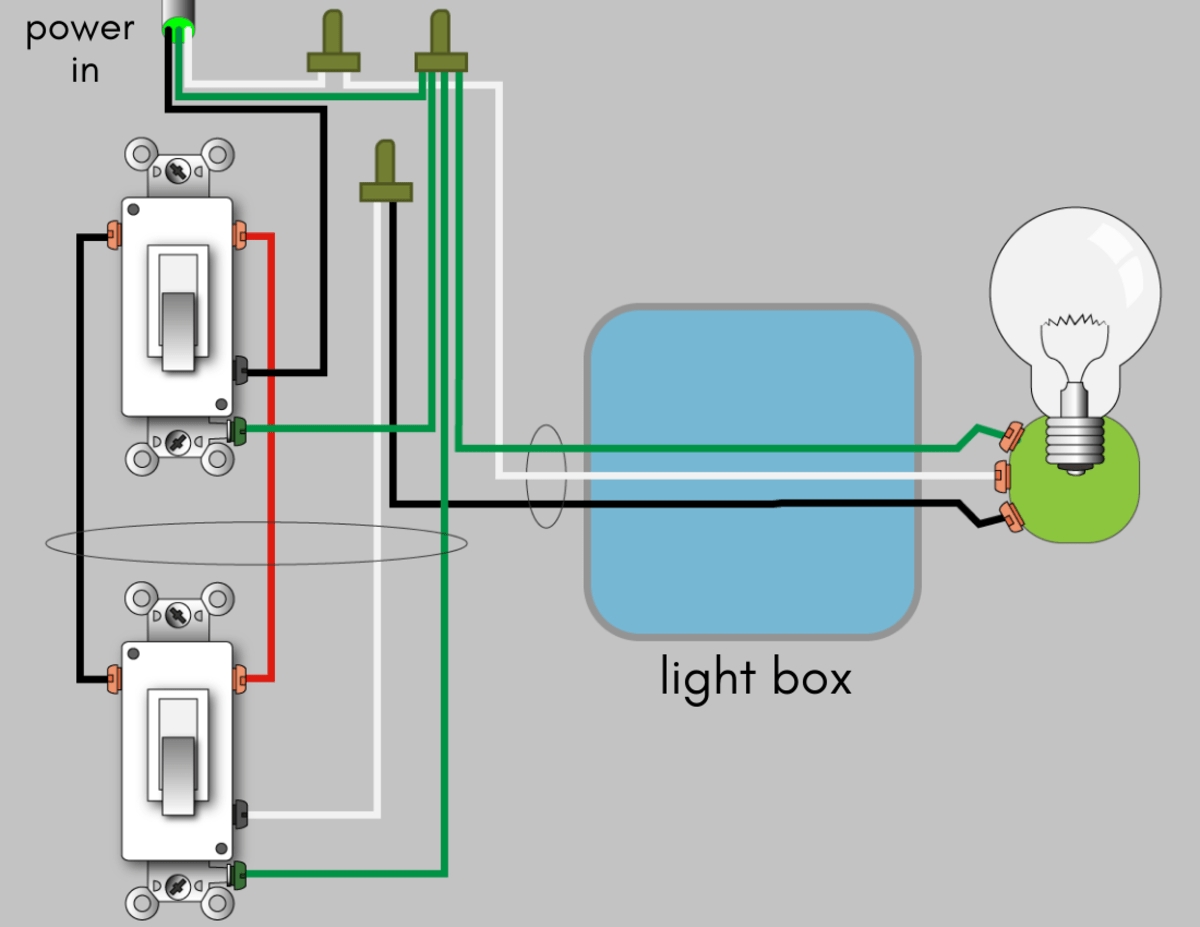

To wire a three-way switch, the power source is connected to the common terminal. The travelers are then connected to the other two terminals on each switch. It is important to ensure the connections are secure and the wires are properly insulated to prevent any electrical hazards.

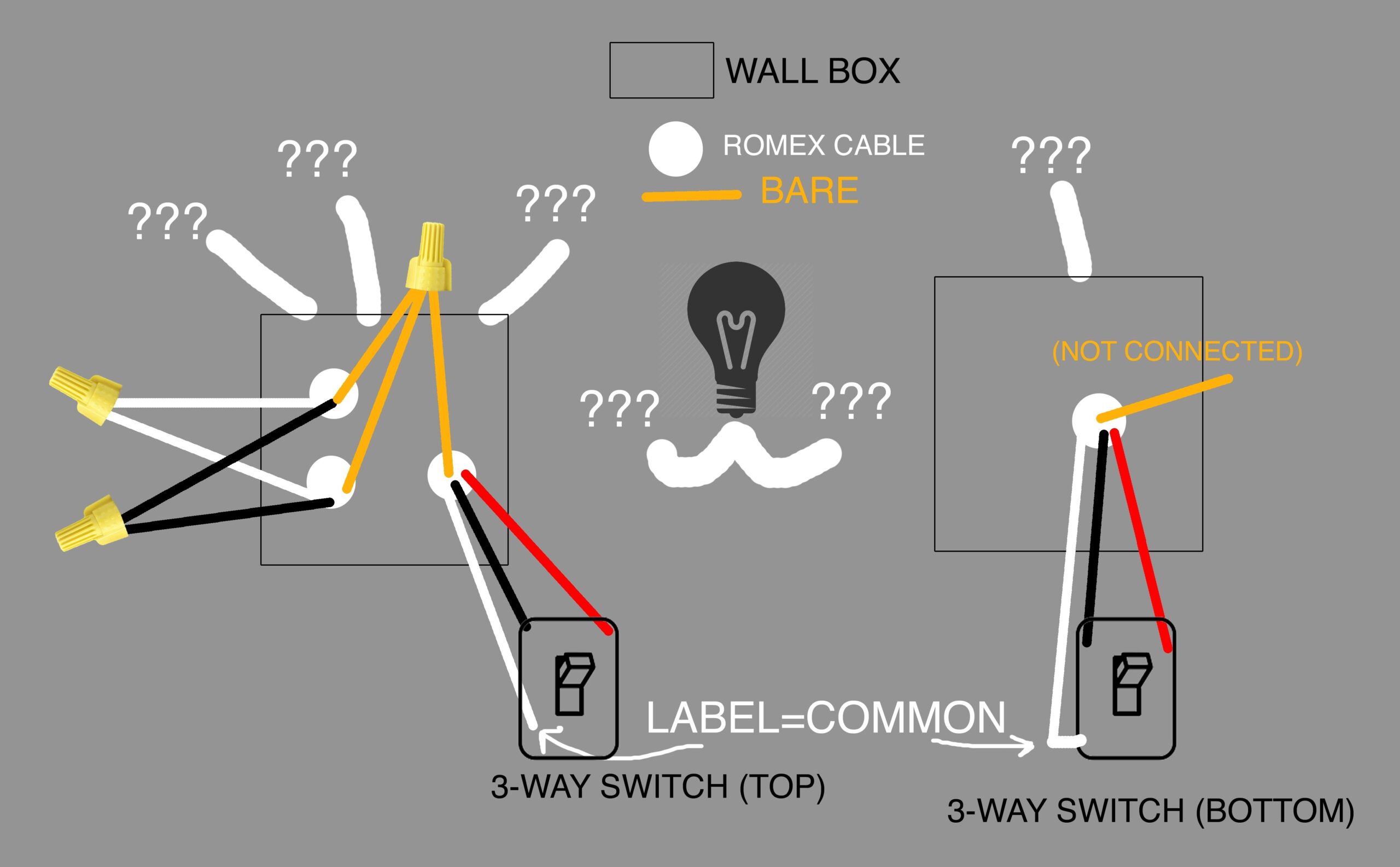

When wiring a three-way switch, it is important to follow the diagram carefully to avoid any mistakes. If the switches are not working properly, double-check the connections and make sure they are correct. It may be helpful to use a voltage tester to ensure the power is off before making any connections.
Overall, understanding the wiring diagram for a three-way switch is essential for proper installation. With the right tools and knowledge, anyone can successfully wire a three-way switch in their home. If you are unsure or uncomfortable with electrical work, it is always best to consult a professional electrician to ensure the job is done safely and correctly.
In conclusion, a three-way wiring diagram is a valuable tool for those looking to install or troubleshoot a three-way switch. By following the diagram and taking proper precautions, anyone can successfully wire a three-way switch in their home. Remember to always prioritize safety when working with electricity.
