When it comes to wiring a three-way switch, it can seem like a daunting task for those who are not familiar with electrical work. However, with the right tools and knowledge, it can be a straightforward process. A three-way switch is used to control a light fixture from two different locations, such as at the top and bottom of a staircase or on either side of a room. Understanding the wiring diagram is key to successfully installing a three-way switch.
Before starting the wiring process, it is important to turn off the power to the circuit at the breaker box to prevent any accidents. It is also recommended to use a voltage tester to ensure that the power is off before proceeding. Additionally, gather all the necessary tools and materials, such as wire strippers, screwdrivers, and electrical tape, to make the installation process smoother.

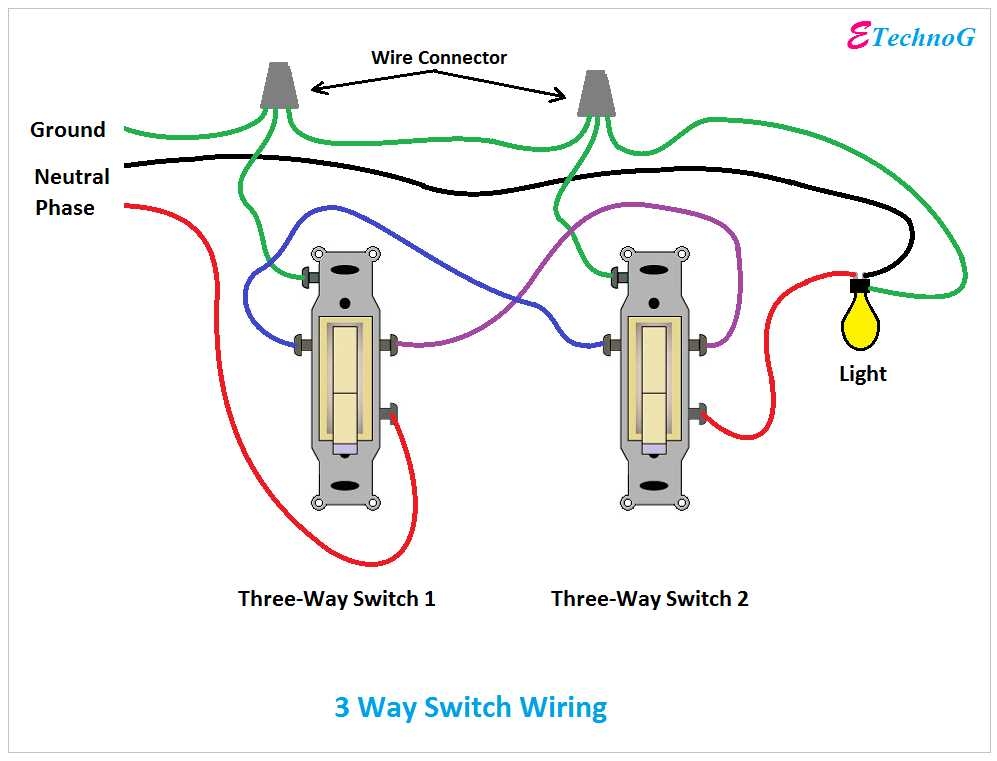

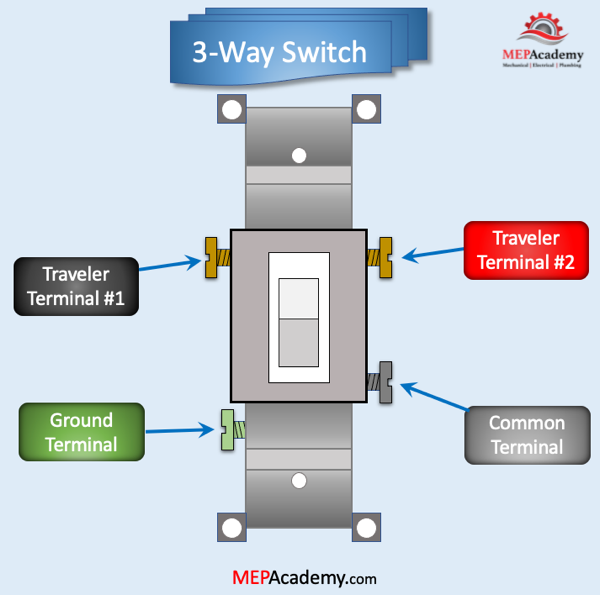

Three Way Switch Explained (wiringfixgetapterje.z13.web.core.windows…)

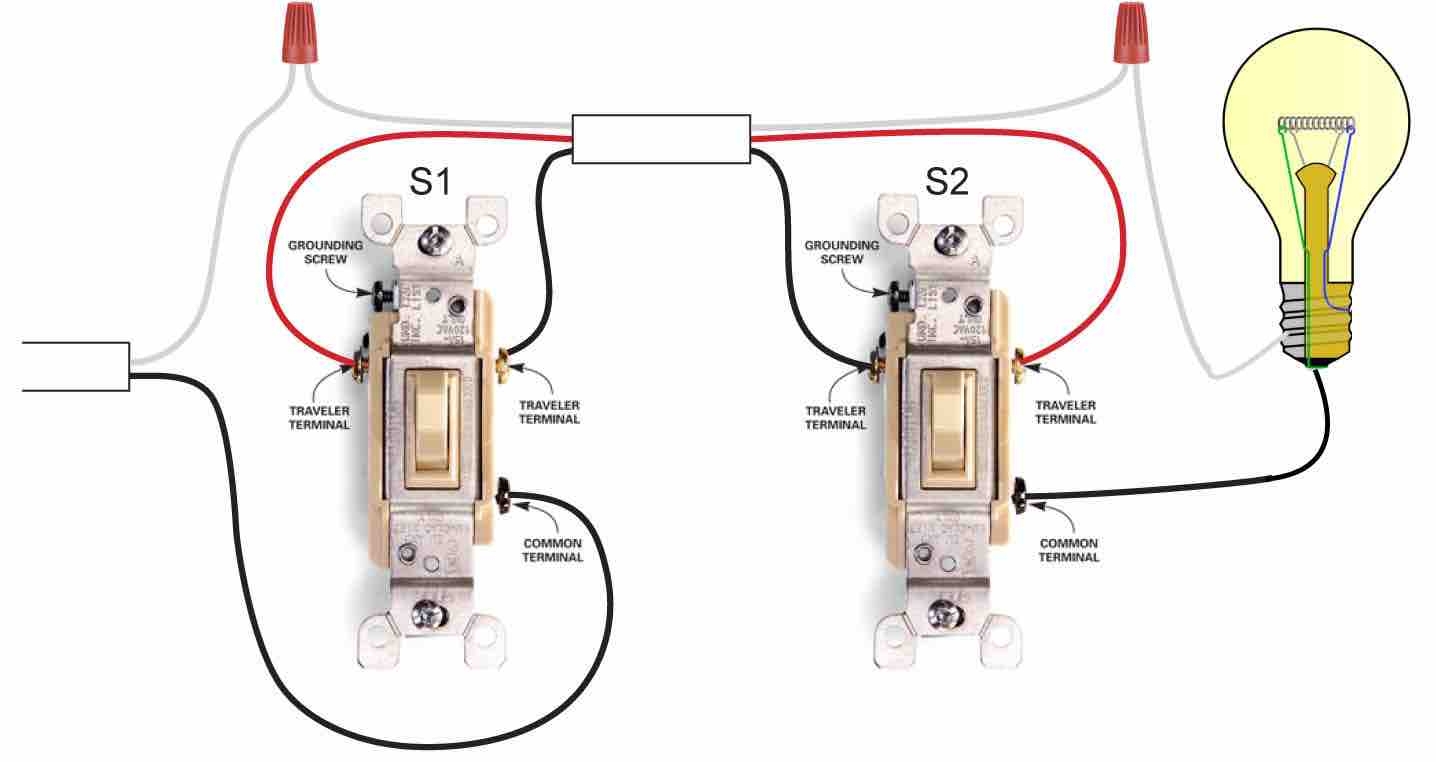

One common way to wire a three-way switch is using a 12/2 cable to connect the two switches. The black wire is used to carry the power from the main electrical panel to the first switch, while the white wire is used as a neutral conductor. The red wire is then used to connect the two switches, allowing for the control of the light fixture from both locations. It is important to follow the wiring diagram carefully to ensure that the connections are made correctly.
Another method for wiring a three-way switch is using a 12/3 cable, which includes an extra wire compared to the 12/2 cable. This extra wire, typically colored black, is used as a traveler wire to connect the two switches. The black wire carries the power, the white wire is the neutral conductor, and the red wire is the traveler wire. By following the wiring diagram and making the appropriate connections, the switches can effectively control the light fixture from multiple locations.
In conclusion, understanding the wiring diagram for a three-way switch is essential for a successful installation. By following the proper steps and using the right tools, anyone can tackle this electrical project with confidence. Remember to always prioritize safety and consult a professional if needed. With the right knowledge and preparation, wiring a three-way switch can be a rewarding DIY project.
