When it comes to upgrading your vehicle’s ignition system, the MSD 6A is a popular choice among automotive enthusiasts. The MSD 6A ignition box provides multiple spark discharge for improved combustion, resulting in better performance and fuel efficiency. However, installing the MSD 6A requires a proper wiring setup to ensure it functions correctly.
Before you start the installation process, it’s essential to have a clear understanding of the wiring diagram for the MSD 6A. This will help you connect the ignition box to your vehicle’s electrical system correctly and prevent any potential issues down the line. Below, we’ll outline the basic wiring setup for the MSD 6A to guide you through the installation process.
Msd Distributor Wiring Diagram Easy Wiring (easywiring.info)
Wiring Instructions
The first step in wiring the MSD 6A is to locate the ignition box near the battery or firewall for easy access. Next, you’ll need to connect the positive and negative terminals of the ignition box to the corresponding terminals on your vehicle’s battery. This provides power to the MSD 6A and ensures it operates correctly.

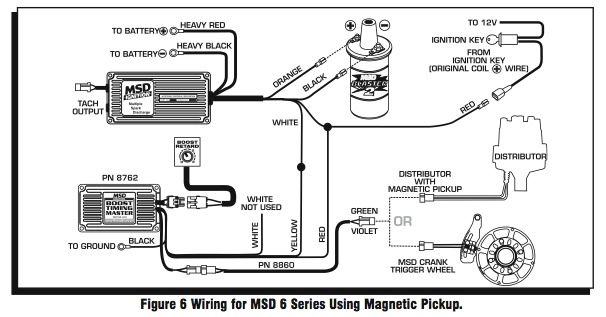

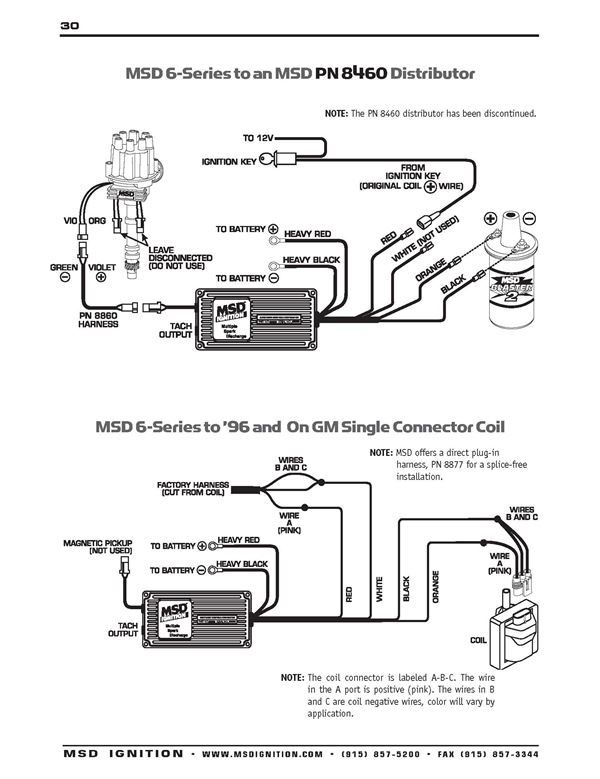

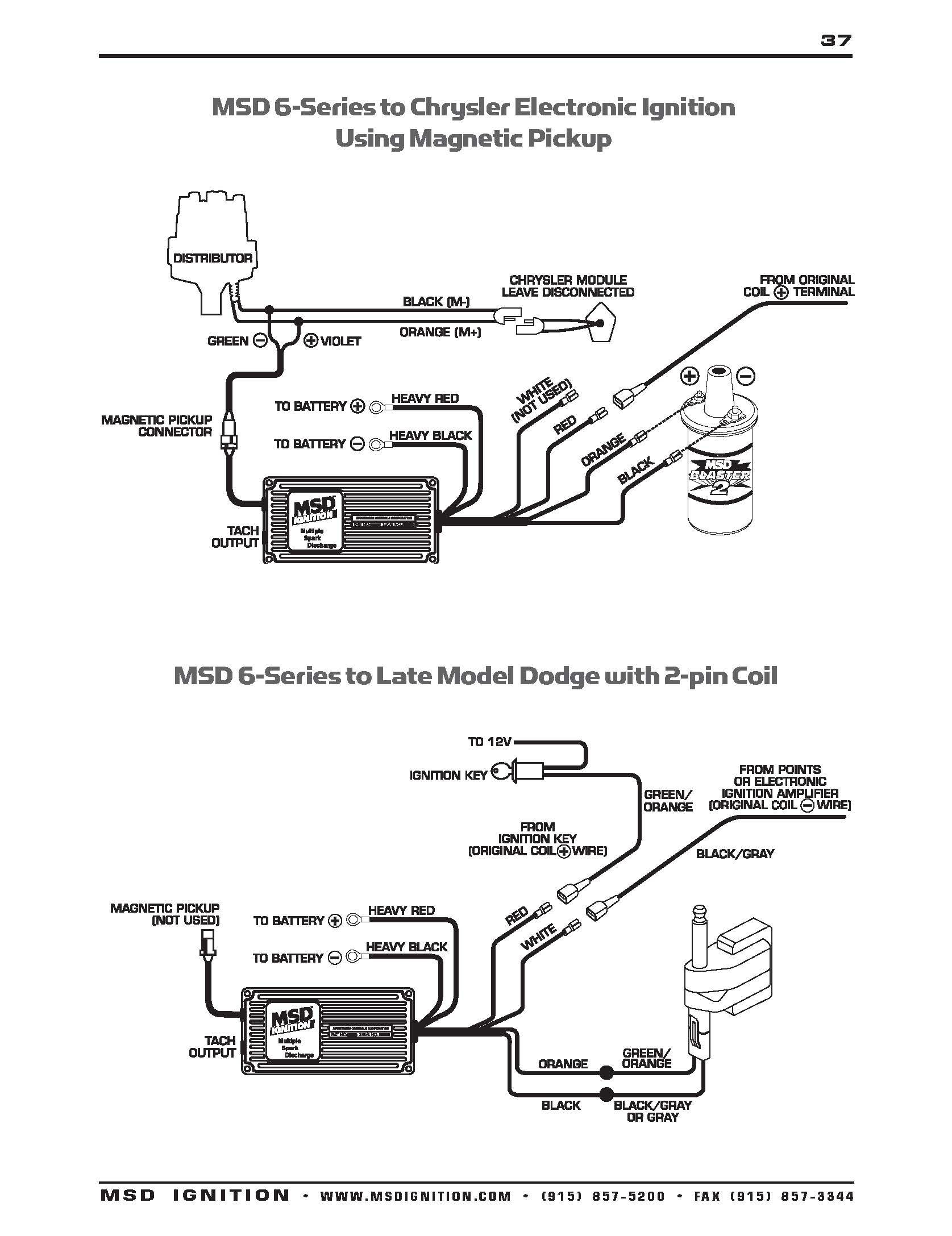

After connecting the power source, you’ll need to wire the ignition box to the distributor. This involves connecting the heavy red wire from the MSD 6A to the coil positive terminal, the heavy black wire to the coil negative terminal, and the white wire to the points or electronic ignition pickup in the distributor.
Additionally, you’ll need to connect the small red wire from the MSD 6A to the ignition switch’s on position, and the small black wire to the chassis ground. Finally, make sure to secure all connections with proper terminals and insulate them with electrical tape to prevent any short circuits.
Once you’ve completed the wiring setup for the MSD 6A, double-check all connections to ensure they are secure and properly insulated. It’s also recommended to test the ignition system before driving your vehicle to verify that the MSD 6A is functioning correctly. With the proper wiring setup, your vehicle will benefit from improved ignition performance and efficiency with the MSD 6A.
In conclusion, understanding the wiring diagram for the MSD 6A is crucial for a successful installation. By following the wiring instructions provided and ensuring all connections are secure, you can upgrade your vehicle’s ignition system with confidence. Enjoy the enhanced performance and efficiency that the MSD 6A ignition box provides!
