When it comes to installing a ceiling fan, it’s important to understand the wiring diagram to ensure it is done correctly. Hunter ceiling fans are known for their quality and durability, making them a popular choice for many homeowners. By following the wiring diagram provided by Hunter, you can easily install your ceiling fan and enjoy its cooling benefits.
Before you begin the installation process, make sure to turn off the power to the circuit where you will be working. It’s also a good idea to have some basic electrical tools on hand, such as wire strippers, wire nuts, and a voltage tester. Once you have gathered your tools and turned off the power, you can begin following the Hunter ceiling fan wiring diagram.

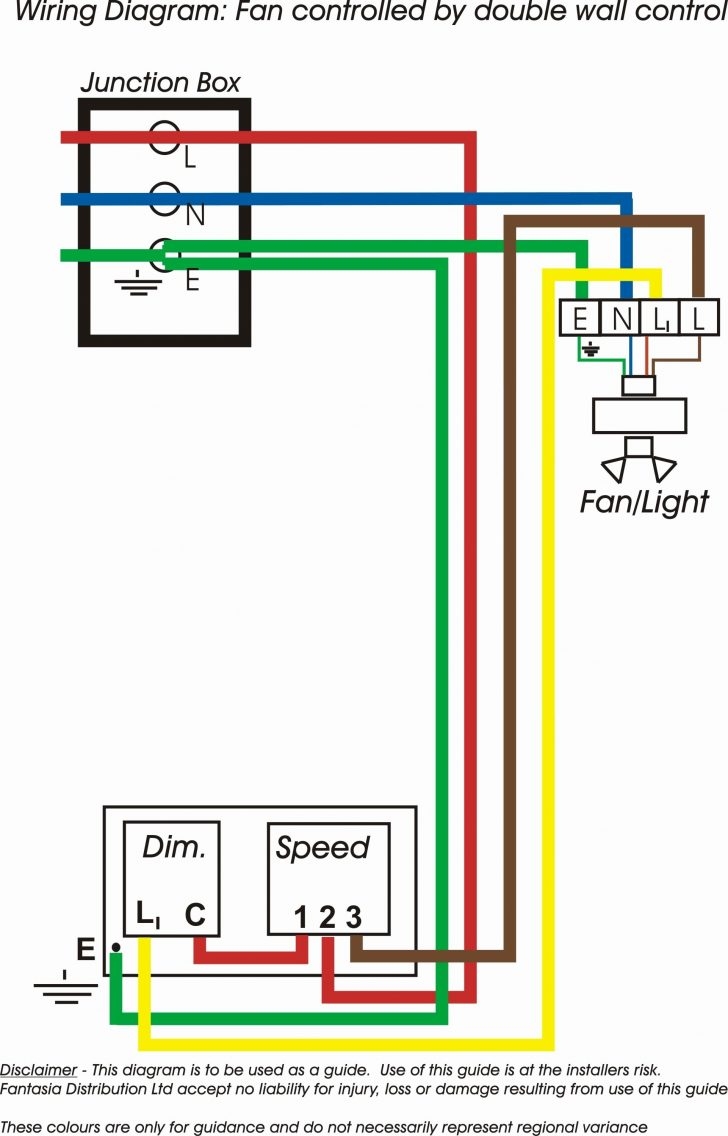

Ceiling Fan Light Internal Wiring Schematic Wiring Diagram Ceiling (2020cadillac.com)

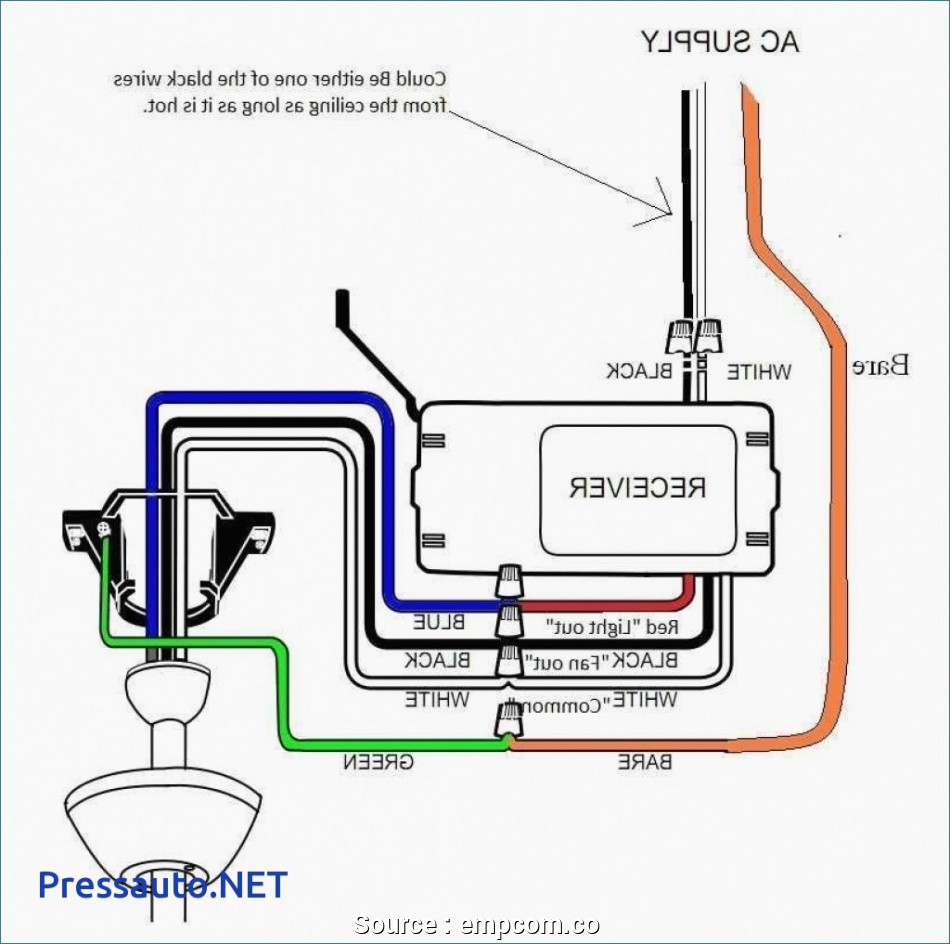

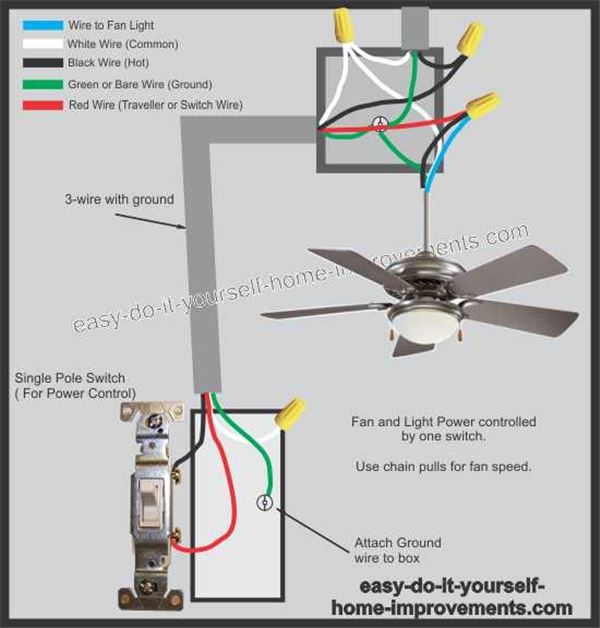

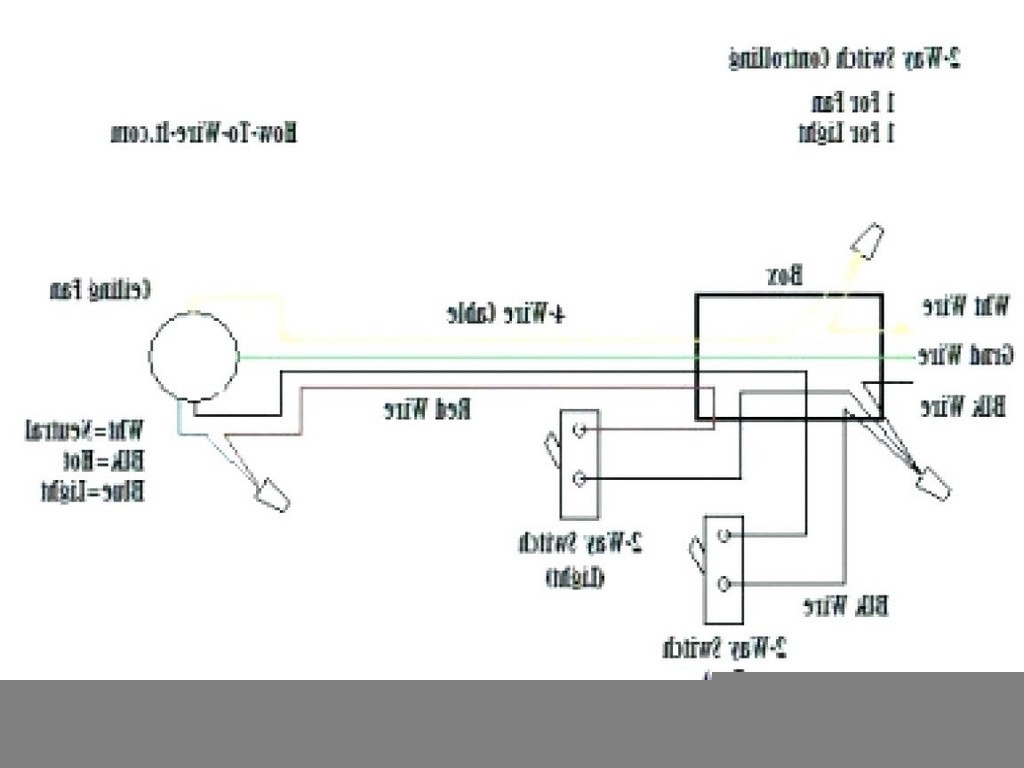

First, identify the wires coming from your ceiling fan. There will typically be a black wire, a white wire, a green wire (or a bare copper wire), and sometimes a blue wire for the light kit. The black wire is the hot wire, the white wire is the neutral wire, the green wire is the ground wire, and the blue wire is for the light kit.
Next, match the wires from the ceiling fan to the corresponding wires in your ceiling. Connect the black wire from the fan to the black wire from the ceiling, the white wire from the fan to the white wire from the ceiling, and the green (or bare copper) wire from the fan to the ground wire from the ceiling. If your fan has a light kit, connect the blue wire from the fan to the blue wire from the ceiling.
Once all the wires are connected, secure them with wire nuts and tuck them neatly into the ceiling electrical box. Finally, attach the fan blades and turn the power back on to test your newly installed Hunter ceiling fan. Following the wiring diagram provided by Hunter will ensure a safe and successful installation.
In conclusion, understanding the Hunter ceiling fan wiring diagram is crucial for a successful installation. By following the steps outlined in the diagram and using the proper tools, you can enjoy the cooling benefits of your new ceiling fan in no time. Remember to always prioritize safety when working with electrical wiring and consult a professional if you are unsure about any step in the installation process.
