Four Pin Trailer Wiring Diagram

When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. One of the most common trailer wiring setups is the four pin configuration, which is used for trailers with basic lighting systems. Understanding how to wire a trailer with a four pin connector can help ensure that your lights work properly and you stay safe on the road.

Whether you are hauling a small utility trailer or a boat trailer, having the right wiring setup is crucial. The four pin trailer wiring diagram is a simple and straightforward way to connect your trailer lights to your vehicle’s electrical system. By following the diagram, you can easily wire your trailer for brake lights, turn signals, and running lights.

Wiring Diagram For Trailer Lights 7 Pin Wiring Diagram (www.autowiringdiagram.net)

The four pin trailer wiring diagram consists of four wires: white, brown, yellow, and green. The white wire is the ground wire, which connects the trailer’s frame to the vehicle’s frame. The brown wire is for the tail lights, the yellow wire is for the left turn signal and brake light, and the green wire is for the right turn signal and brake light.

To wire your trailer using the four pin setup, start by connecting the white wire to the trailer frame. Next, connect the brown wire to the tail light circuit, the yellow wire to the left turn signal circuit, and the green wire to the right turn signal circuit. Make sure to use the appropriate connectors and secure all connections with electrical tape or heat shrink tubing.

Once you have wired your trailer according to the diagram, test the lights to ensure they are working properly. Have someone help you by standing outside the vehicle and checking that all lights are functioning correctly. If any lights are not working, double check your connections and make any necessary adjustments.

By following the four pin trailer wiring diagram, you can ensure that your trailer lights are properly connected and functioning. This will not only keep you safe on the road, but it will also help other drivers see your trailer and anticipate your movements. Remember to check your trailer lights regularly to ensure they are in proper working condition before hitting the road.

Download and Print Four Pin Trailer Wiring Diagram Listed below

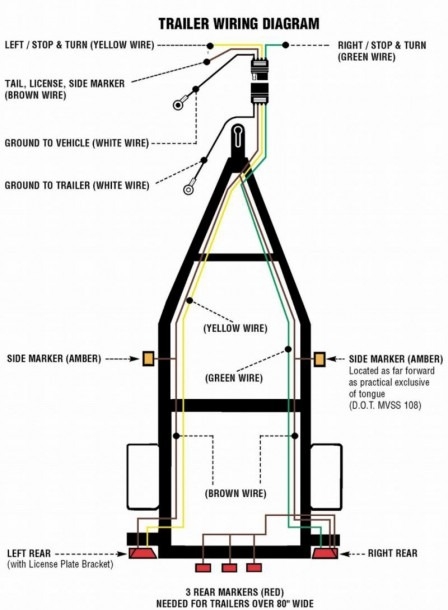

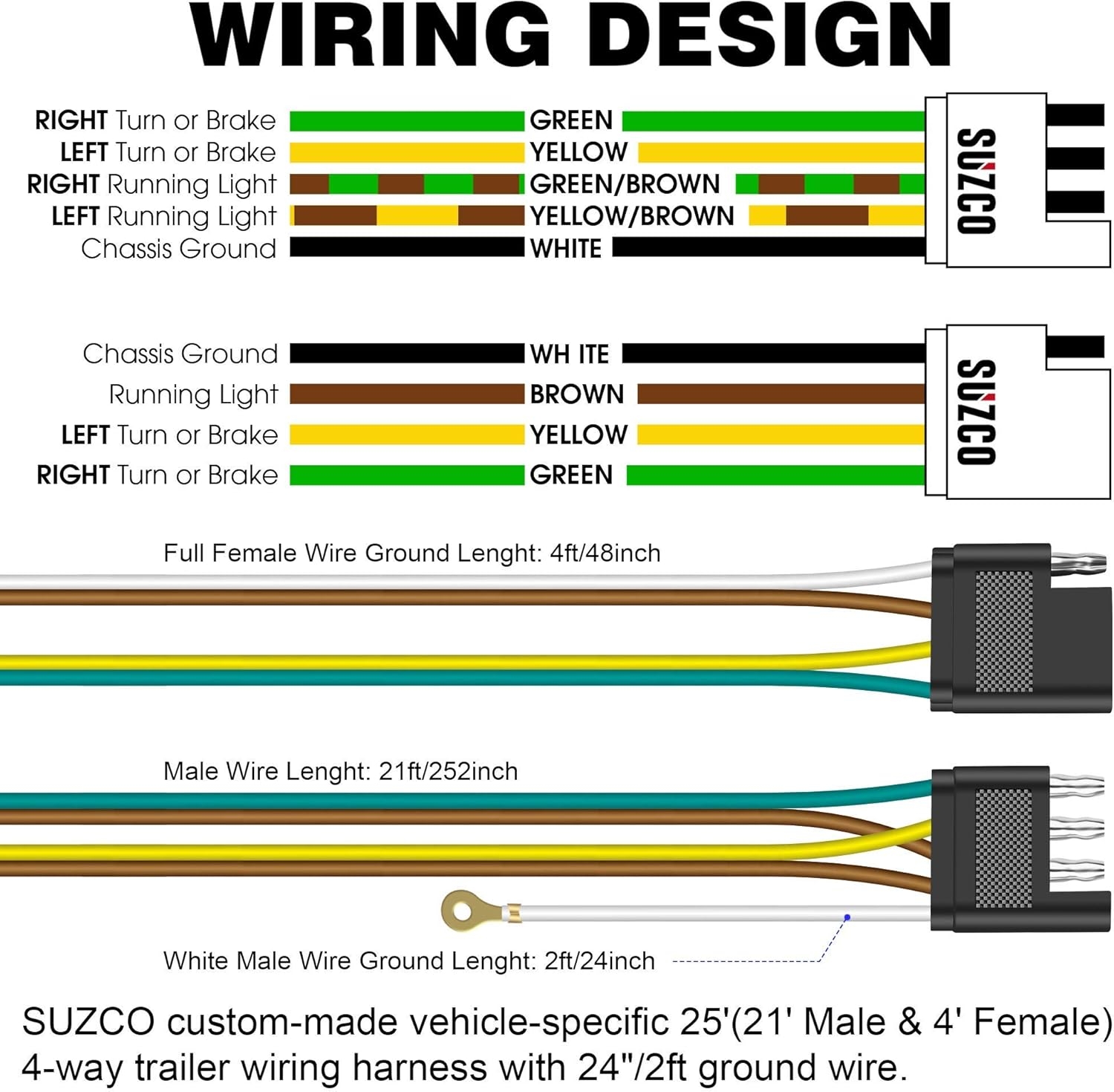

Wiring Diagram For 12 Pin Flat Trailer Plug Wiring Diagram (wiringdiagram.2bitboer.com)

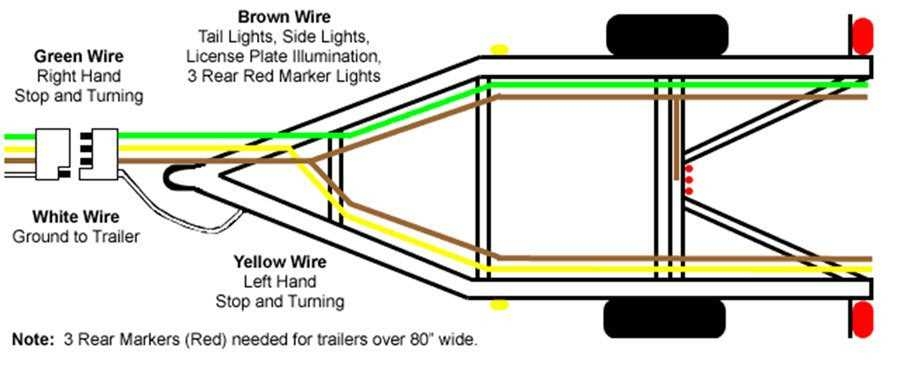

Step By Step Guide To Wiring A Four Pole Trailer Diagram Included (wiringall.com)

Boat Trailer Wiring Diagram (www.mikrora.com)

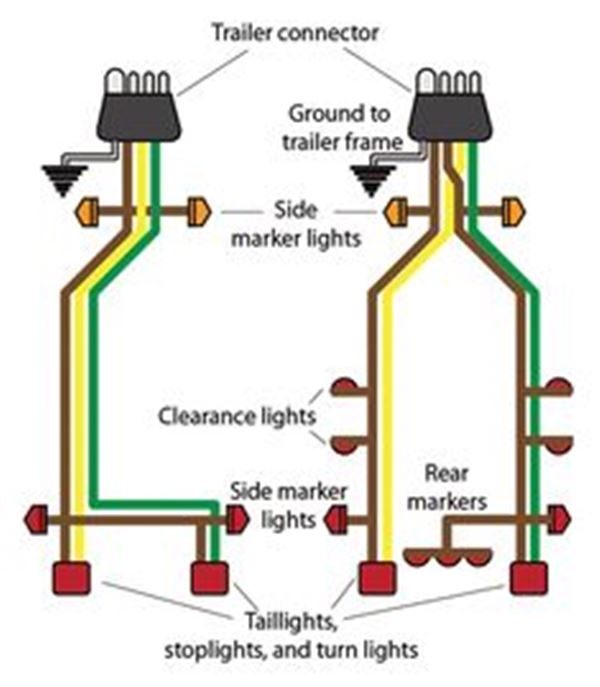

4 Pin Trailer Plug Wiring Diagram (stewart-switch.com)
