An extension cord is a handy tool that allows you to extend the reach of your electrical devices. However, it is important to understand how to properly wire an extension cord in order to prevent electrical hazards and ensure safety.
Before attempting to wire an extension cord, it is essential to familiarize yourself with the wiring diagram. This diagram will show you the proper way to connect the wires and ensure that the cord is wired correctly.
How To Read An Extension Cord Wiring Diagram Moo Wiring (moowiring.com)
Wiring Instructions
When wiring an extension cord, it is important to follow these instructions:
1. Cut the cord to the desired length, making sure to leave enough room to work with the wires.

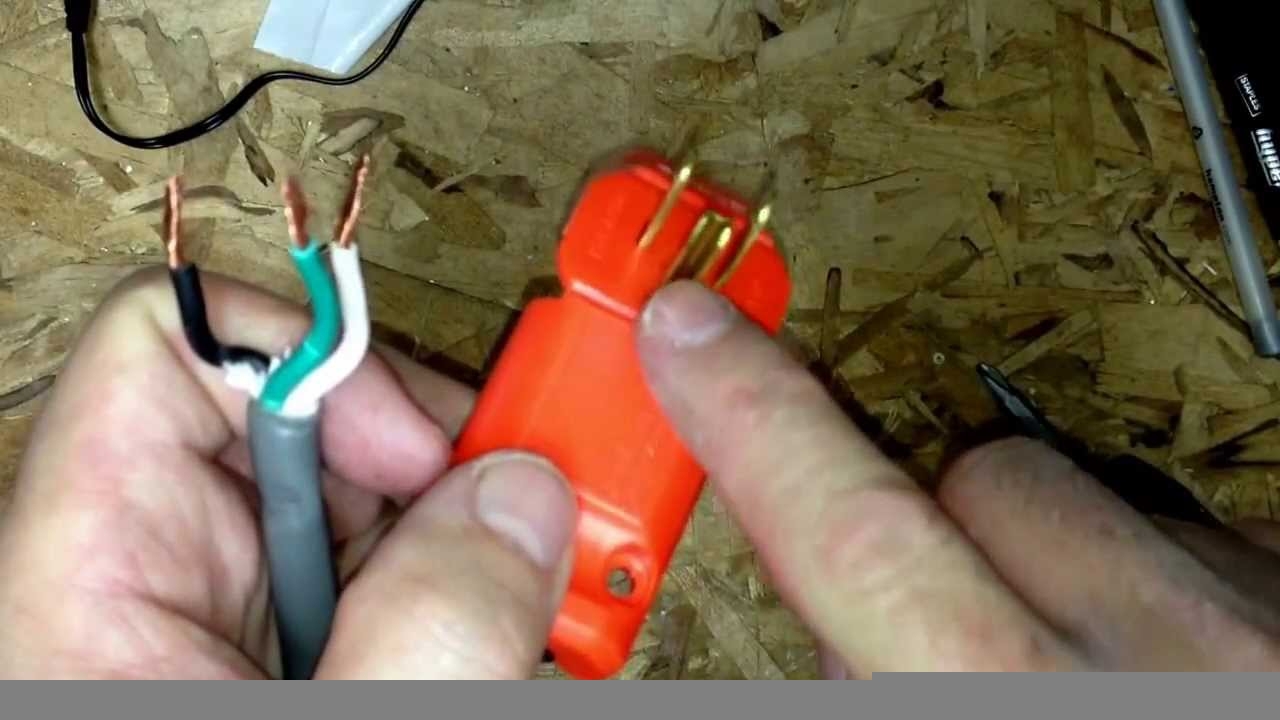

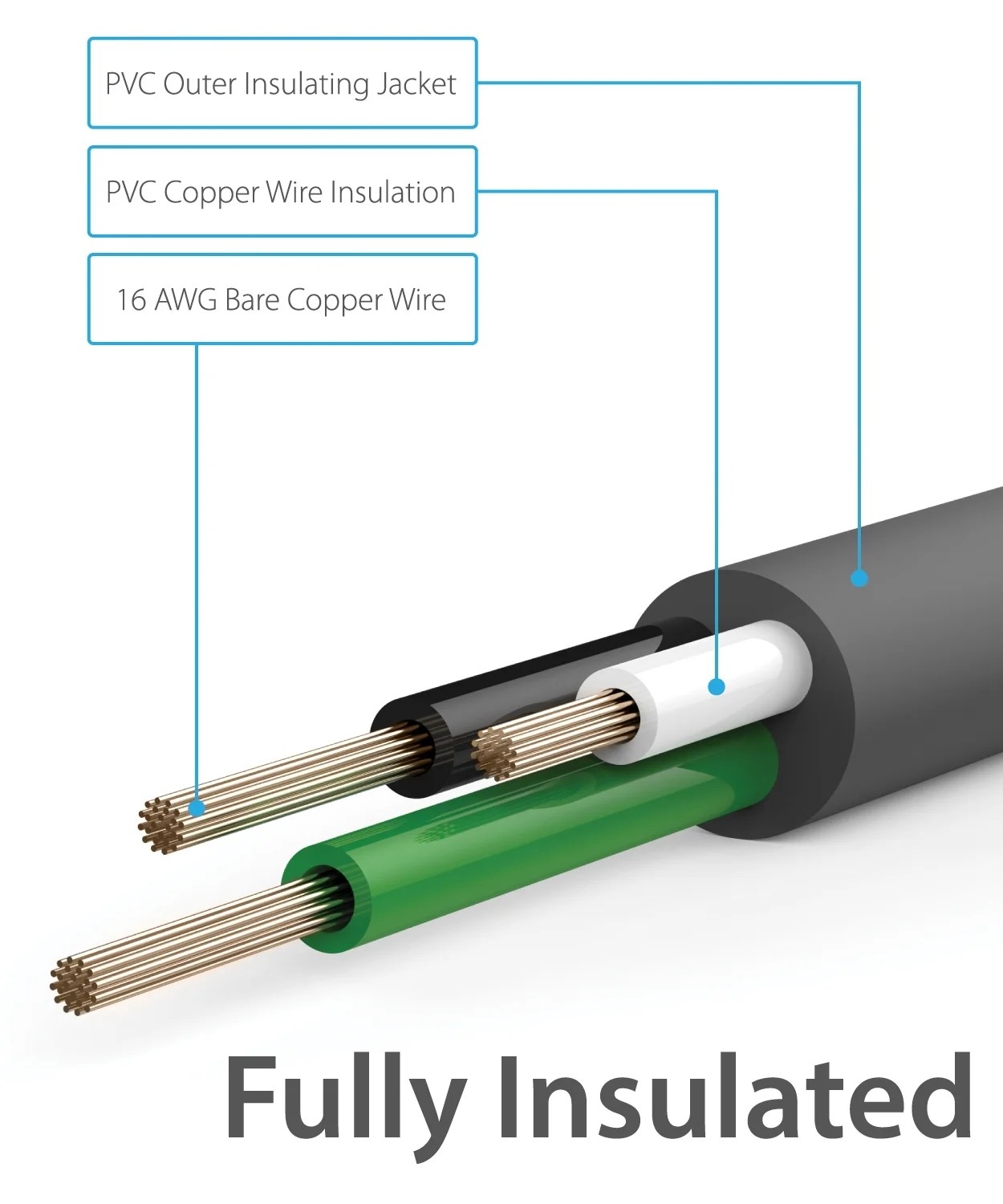

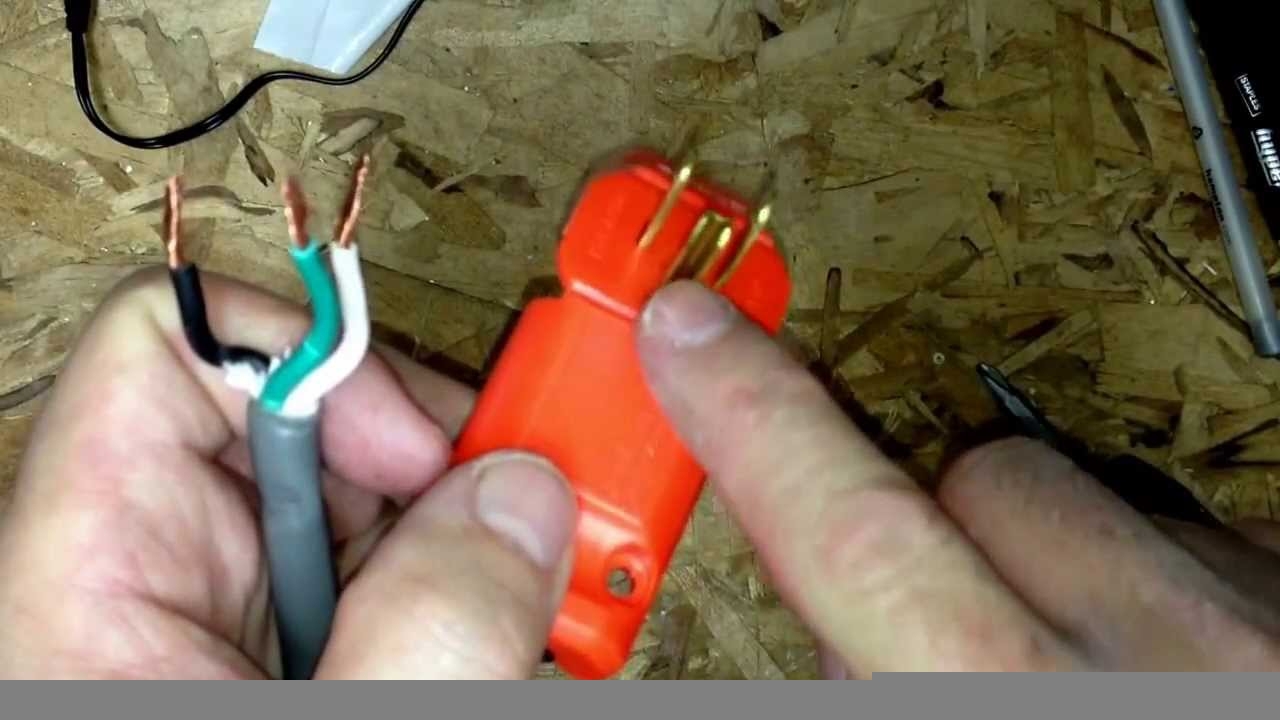

2. Strip the insulation from the ends of the cord to expose the wires. You will typically find three wires inside the cord: a black wire (hot), a white wire (neutral), and a green wire (ground).

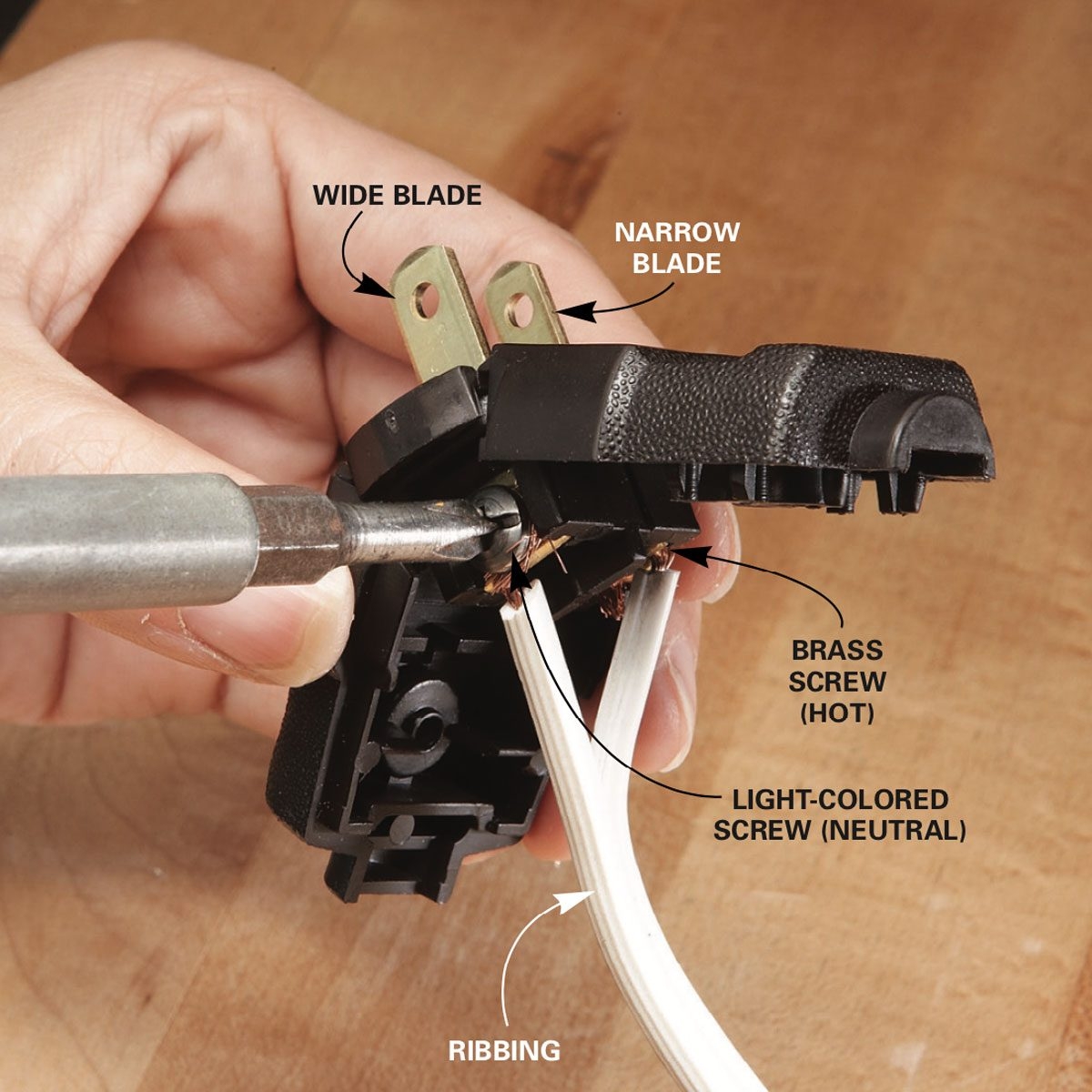

3. Connect the wires to the corresponding terminals on the plug. The black wire should be connected to the brass terminal, the white wire to the silver terminal, and the green wire to the green terminal.
4. Secure the wires in place by tightening the terminal screws. Make sure that there are no loose wires or exposed copper showing.
5. Once the wires are securely connected, carefully insert the plug into the housing and tighten the screws to secure it in place.
By following these instructions and referring to the wiring diagram, you can safely wire an extension cord for use with your electrical devices.
In conclusion, understanding how to properly wire an extension cord is essential for ensuring safety and preventing electrical hazards. By following the wiring diagram and instructions provided, you can effectively wire an extension cord for use with your electrical devices. Remember to always prioritize safety when working with electricity.
