When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. The 7 way trailer connector is a common type of wiring used for trailers with multiple functions, such as brakes, turn signals, and lights. Understanding how to wire a 7 way trailer connector can ensure that your trailer operates correctly and safely while on the road.
Properly wiring a 7 way trailer connector requires a bit of knowledge and attention to detail. By following a wiring diagram specific to the 7 way connector, you can easily connect the wires to the correct terminals and ensure that each function of your trailer is working properly.

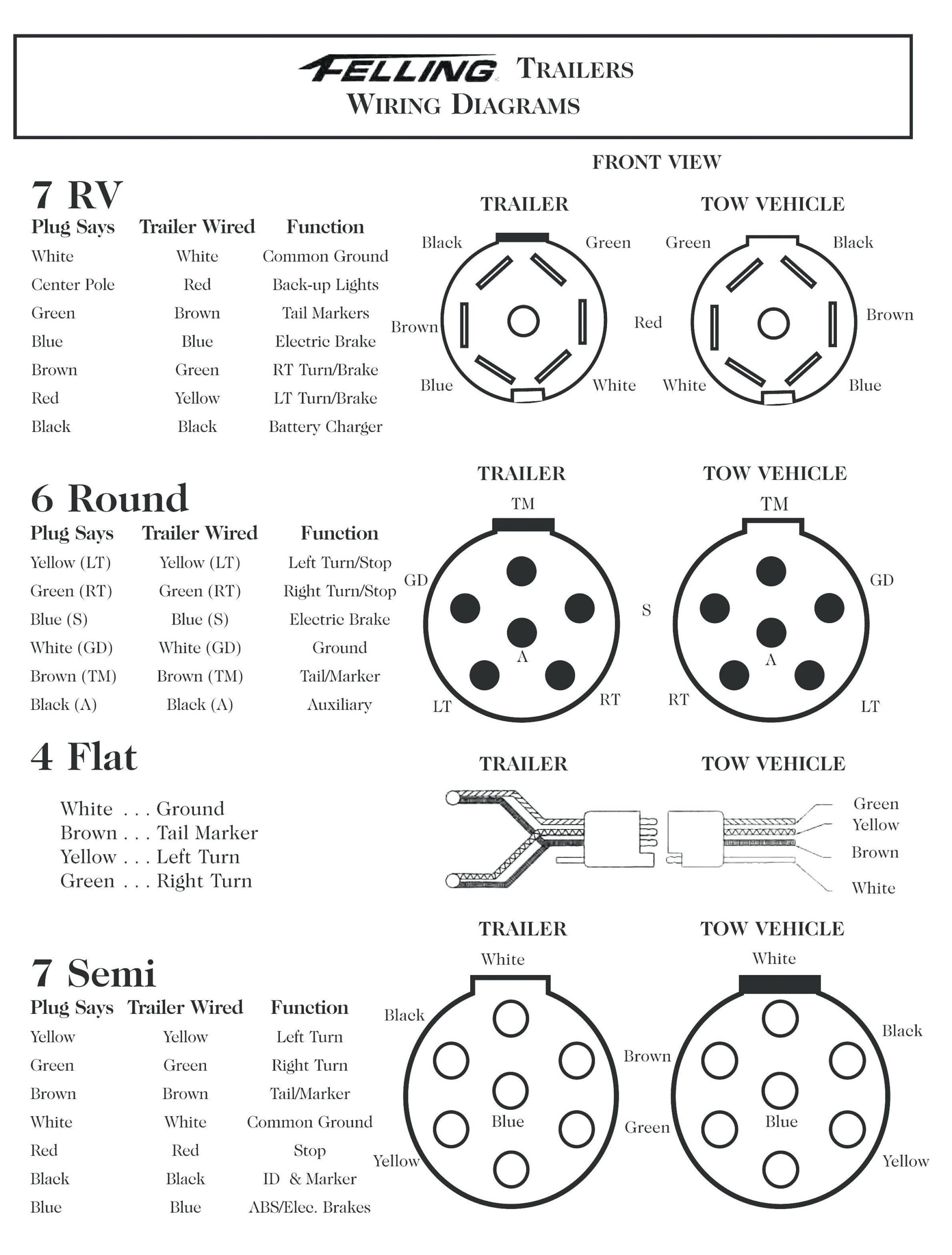

7 Pin Trailer Connector Diagram Wiring Diagrams Towing Centres Uk Ltd (bzarrescom.blogspot.com)

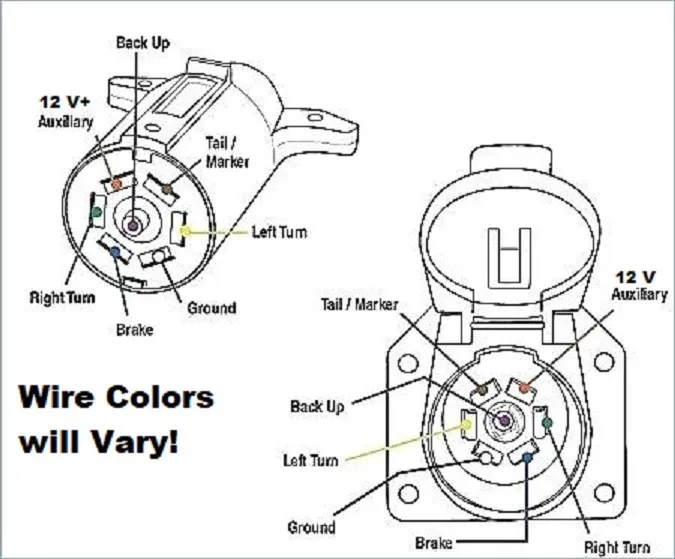

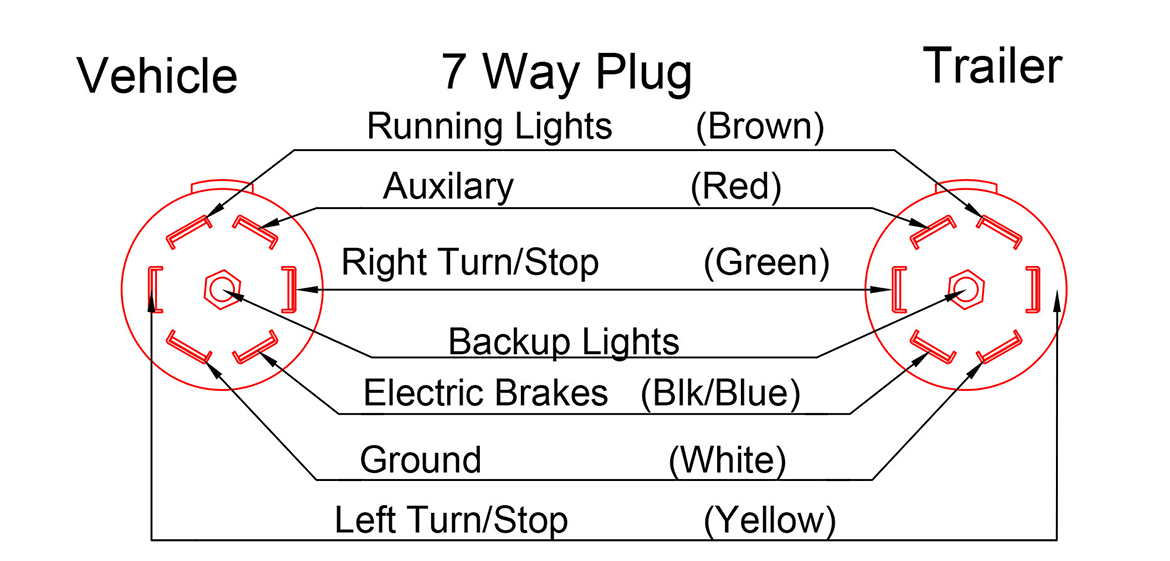

Starting with the ground wire, which is typically white, connect it to the terminal labeled “Ground” on the 7 way connector. Next, connect the brown wire to the terminal labeled “Tail Lights” for the trailer’s running lights. The yellow wire is for the left turn signal and should be connected to the terminal marked “Left Turn.” The green wire is for the right turn signal and should be connected to the terminal labeled “Right Turn.”
The blue wire is for electric brakes and should be connected to the terminal labeled “Electric Brakes.” The black wire is for the 12V power supply and should be connected to the terminal marked “12V Power.” Finally, the purple wire is for the backup lights and should be connected to the terminal labeled “Reverse Lights.” By following this wiring diagram, you can ensure that all functions of your trailer are properly connected and working as they should.
Once you have correctly wired the 7 way trailer connector, be sure to test each function to ensure everything is working properly. Check the brakes, turn signals, running lights, and backup lights to make sure they are all functioning as they should. If you encounter any issues, double-check the wiring and connections to ensure everything is properly connected.
In conclusion, understanding how to wire a 7 way trailer connector is essential for safe towing. By following a wiring diagram and connecting each wire to the correct terminal on the connector, you can ensure that your trailer operates correctly and safely while on the road. Proper wiring and testing are key to ensuring a successful towing experience with your trailer.
