When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. The 7 pin trailer plug wiring diagram USA is a standard configuration used for most trailers in the United States. Understanding how to wire a 7 pin trailer plug will allow you to tow your trailer with ease and peace of mind.
The 7 pin trailer plug wiring diagram USA consists of seven pins, each serving a different purpose. These pins include ground, tail lights, left turn signal, right turn signal, brake lights, electric brakes, and backup lights. By correctly wiring each pin, you can ensure that your trailer’s lights and brakes work properly while towing.

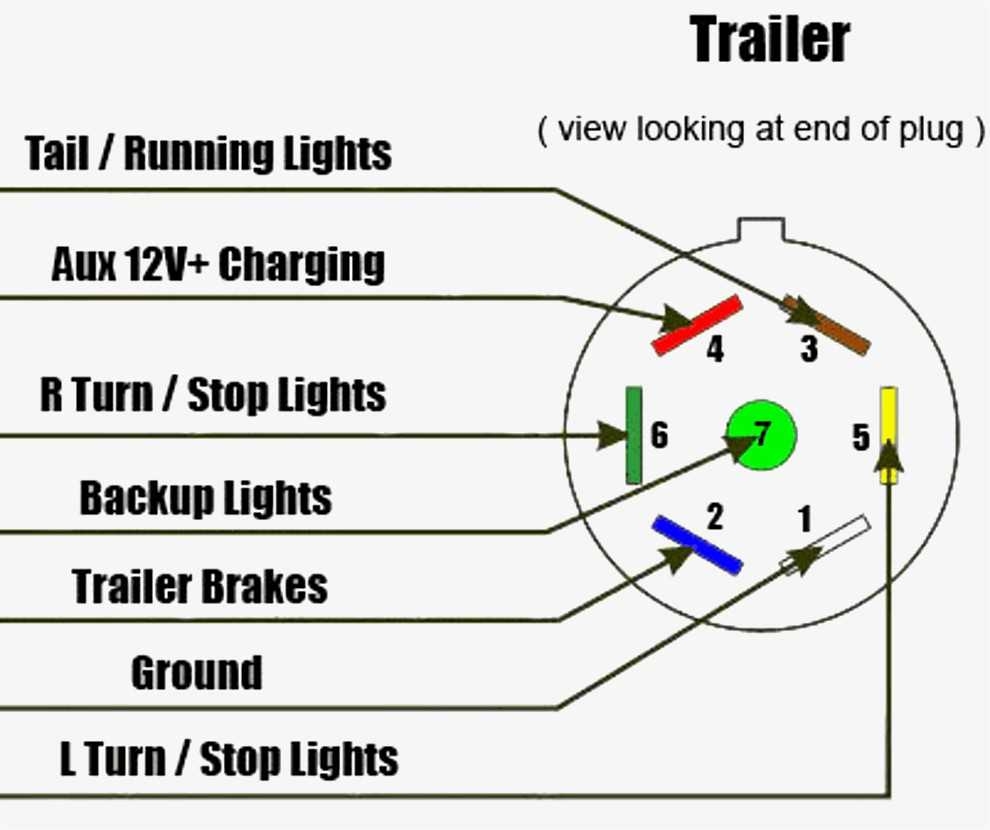

How To Wire A 7 Pin Plug For Your Trailer Step By Step Diagram Guide (techschematic.com)

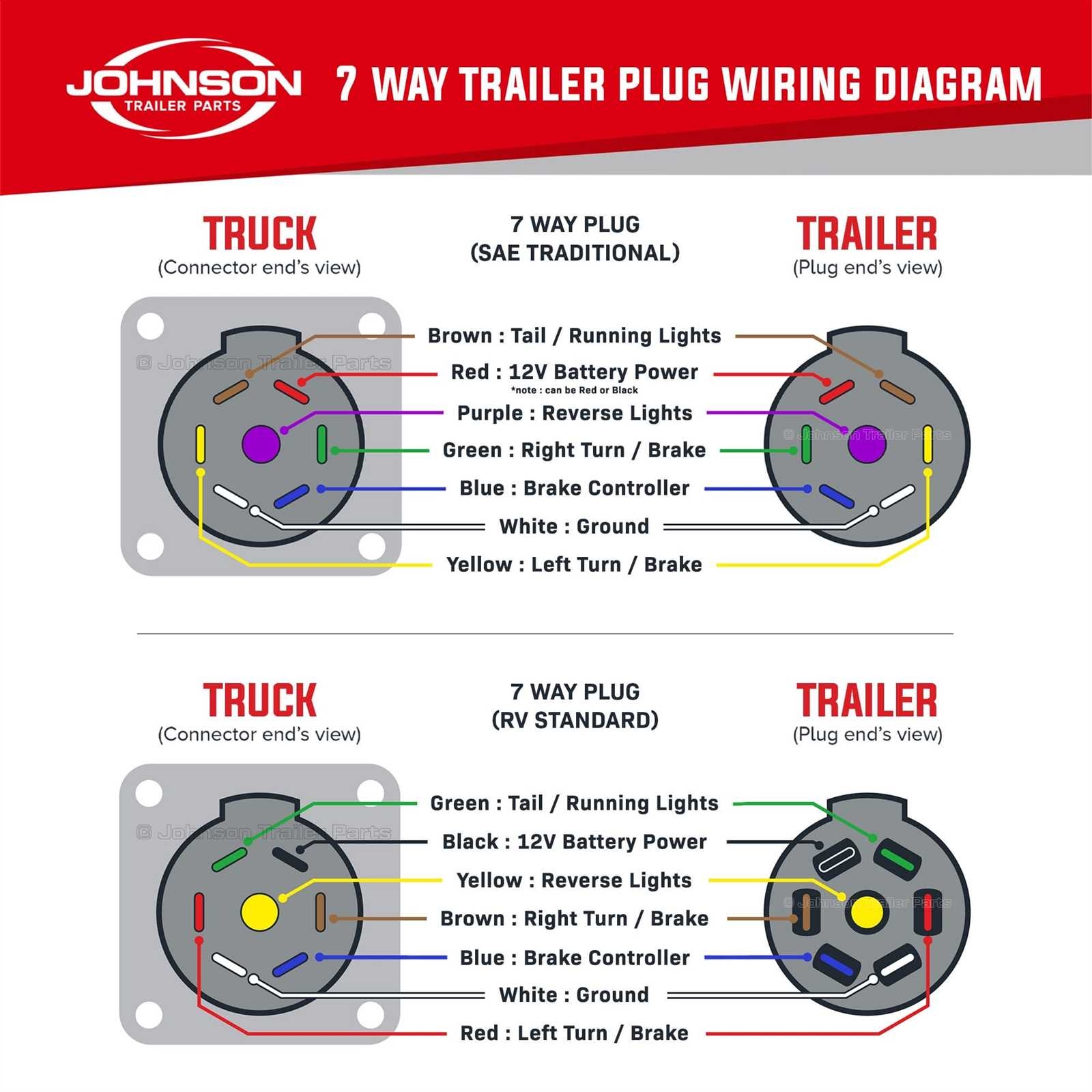

When wiring a 7 pin trailer plug, it is important to follow the color-coding for each wire. The ground wire is typically white, while the tail lights are brown, left turn signal is yellow, right turn signal is green, brake lights are red, electric brakes are blue, and backup lights are black. By matching the wires to their corresponding pins on the plug, you can easily wire your trailer for towing.
To wire a 7 pin trailer plug, start by stripping the insulation off the ends of each wire. Then, insert the wires into the appropriate pins on the plug, making sure to secure them in place. Once all the wires are connected, use a multi-meter to test the connections and ensure that everything is wired correctly. Finally, secure the plug to the trailer using screws or mounting brackets.
Overall, understanding the 7 pin trailer plug wiring diagram USA is crucial for safe and efficient towing. By following the proper wiring procedures and color-coding, you can ensure that your trailer’s lights and brakes function properly while on the road. With the right tools and knowledge, you can easily wire your trailer for hassle-free towing adventures.
In conclusion, the 7 pin trailer plug wiring diagram USA is a standard configuration used for most trailers in the United States. By following the proper wiring procedures and color-coding, you can ensure that your trailer’s lights and brakes work efficiently while towing. With the right tools and knowledge, you can easily wire your trailer for safe and hassle-free towing experiences.
