When it comes to towing a trailer, having the proper wiring is crucial for safety and functionality. One of the most common types of trailer wiring is the 7 pin plug. This plug is typically used for larger trailers and RVs, providing connections for essential functions such as brake lights, turn signals, and power for accessories.
Understanding how to wire a 7 pin plug is essential for anyone who tows trailers regularly. By following a wiring diagram, you can ensure that your trailer is properly connected to your vehicle, allowing for safe and reliable towing.
How To Wire A 7 Pin Plug For Your Trailer Step By Step Diagram Guide (techschematic.com)

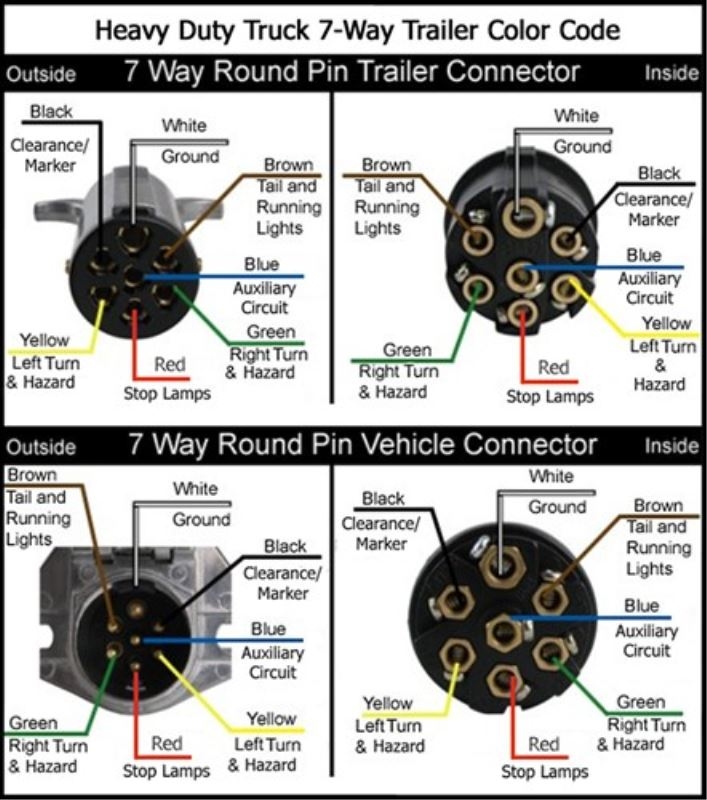

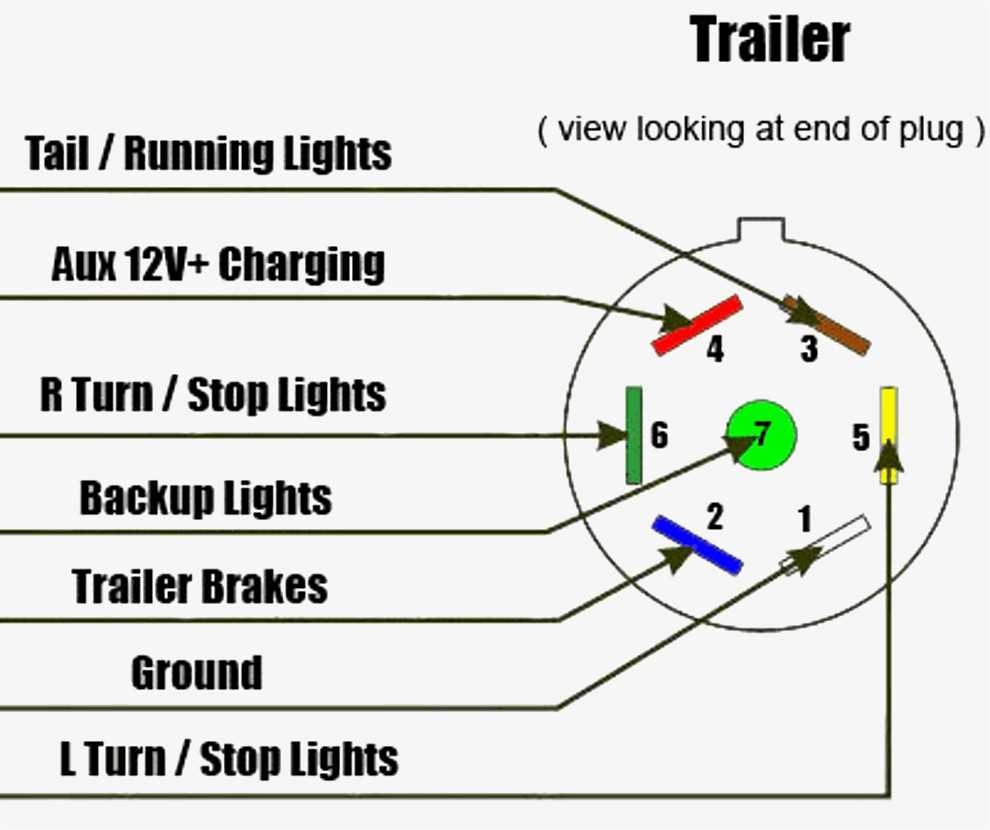

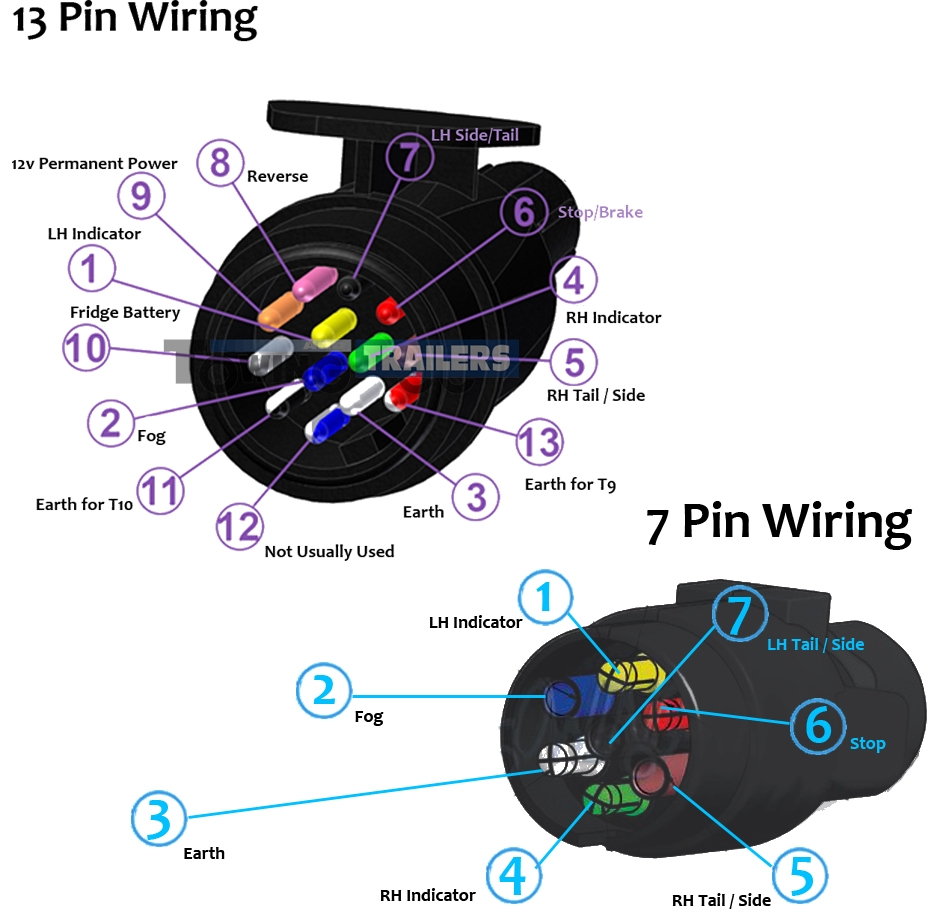

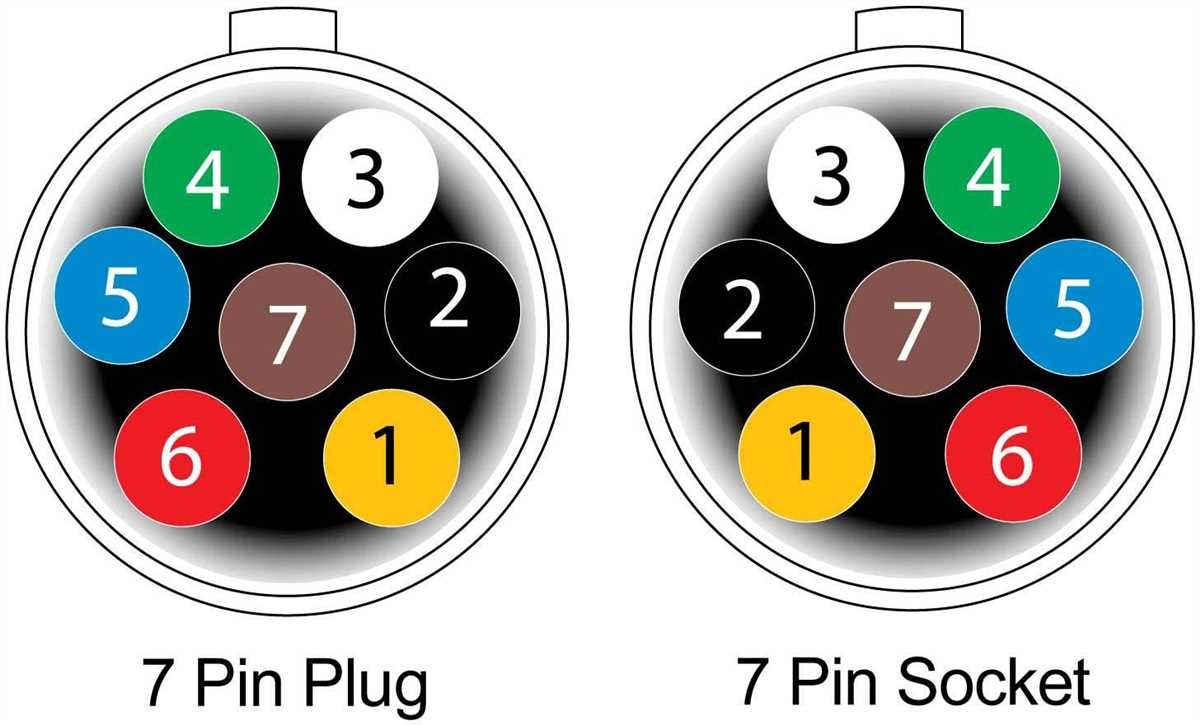

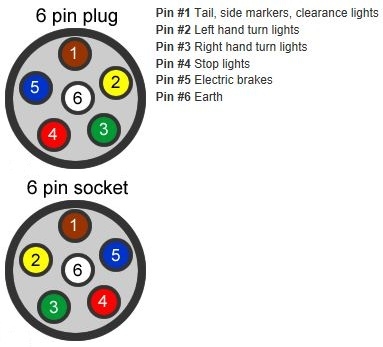

Here is a basic 7 pin plug wiring diagram:
1. Ground wire – White
2. Tail/running lights – Brown
3. Left turn signal – Yellow
4. Brake lights – Red
5. Right turn signal – Green
6. Backup lights – Black
7. 12V power – Blue
By following this diagram and connecting each wire to the corresponding pin on the plug, you can ensure that your trailer lights and accessories function properly. It is important to double-check your connections and test your trailer lights before hitting the road to ensure everything is working correctly.
Proper wiring of your trailer plug is not only important for your safety but also for the safety of others on the road. By following a 7 pin plug wiring diagram and ensuring that your connections are secure, you can tow your trailer with confidence and peace of mind.
Whether you are towing a boat, camper, or utility trailer, having the proper wiring is essential. By understanding how to wire a 7 pin plug and following a wiring diagram, you can ensure that your trailer is safely and properly connected to your vehicle, allowing for a smooth towing experience.
Next time you need to wire a 7 pin plug for your trailer, refer back to this diagram to ensure that your connections are correct. With the right wiring and a little bit of know-how, you’ll be ready to hit the road with your trailer in tow.
