3 Way Wiring Switch Diagram

When it comes to electrical wiring, understanding how a 3-way switch works is essential. A 3-way switch allows you to control a light fixture from two different locations. This is commonly used in stairways, hallways, and large rooms where one switch may not be enough. By following a 3-way wiring switch diagram, you can easily install this type of switch in your home.

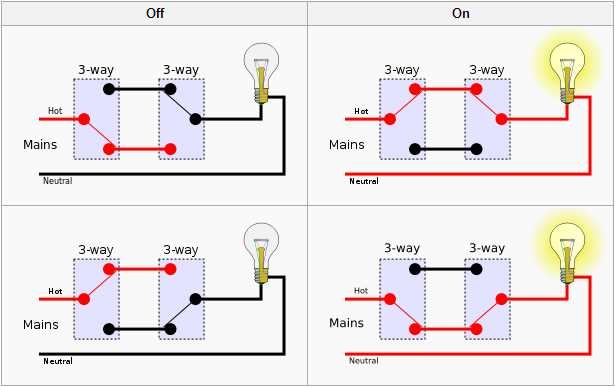

Before diving into the diagram, it’s important to understand the basic concept of a 3-way switch. Unlike a traditional single-pole switch that has on and off positions, a 3-way switch has three terminals that are used to control the flow of electricity. The traveler wires connect the two switches together, allowing you to turn the light on or off from either location.

3 Way Switch Wiring Diagram Multiple Lights Power At Light (wiringdiagramall.blogspot.com)

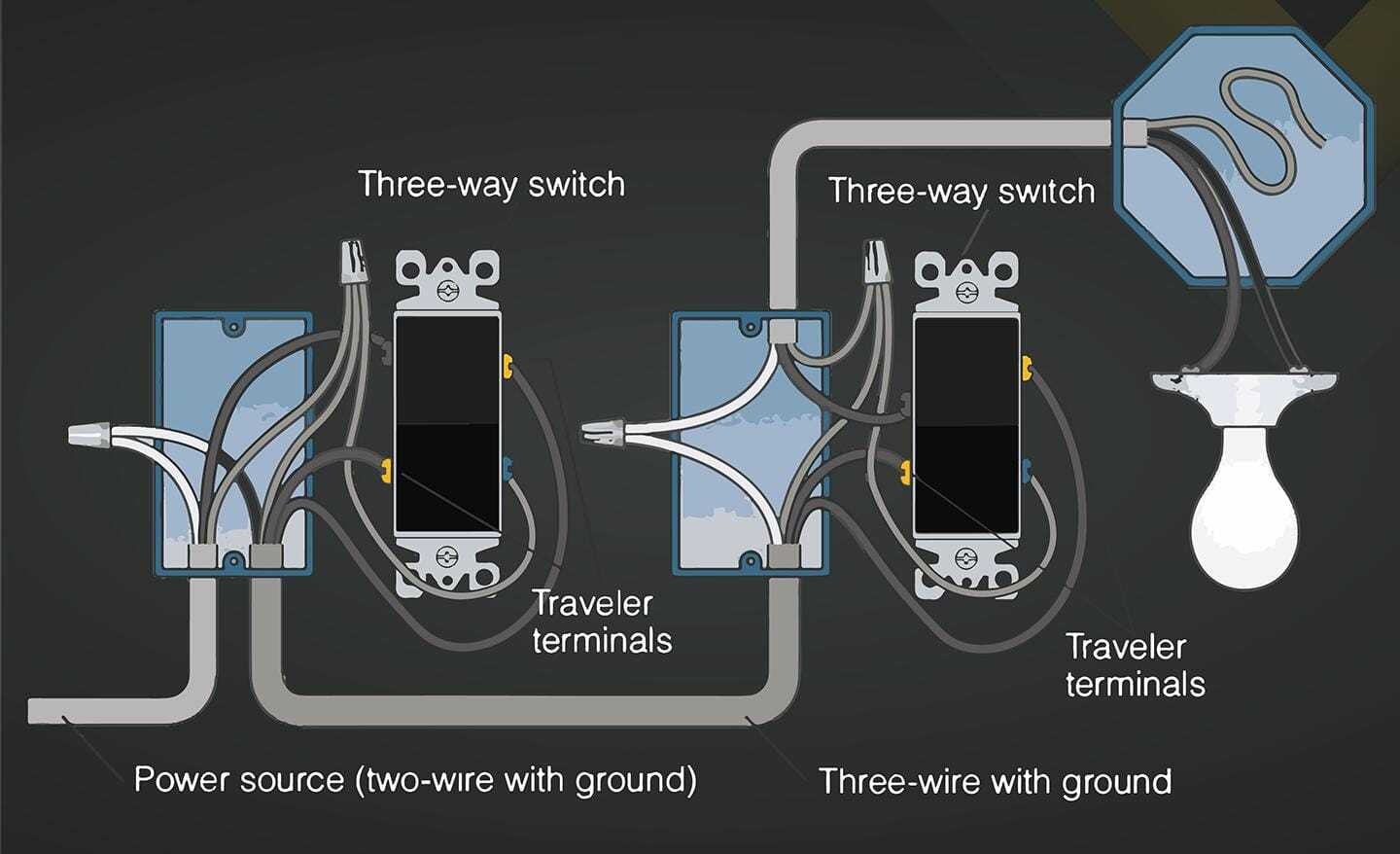

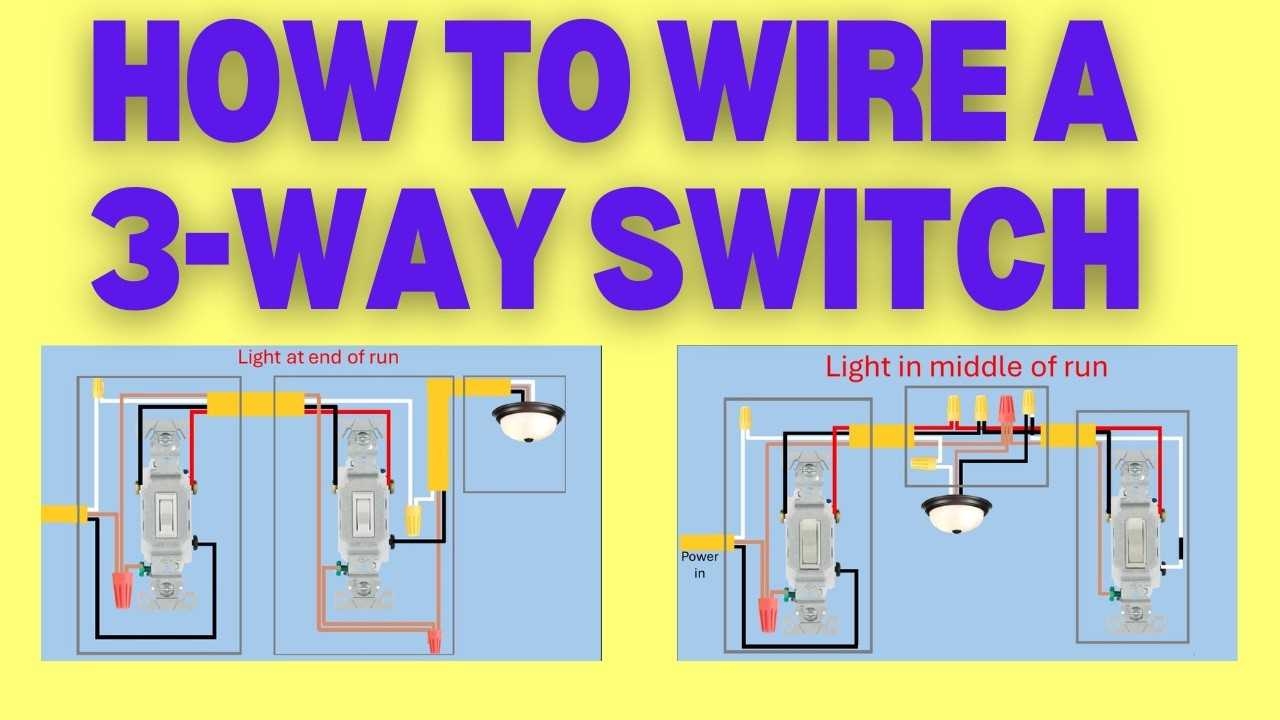

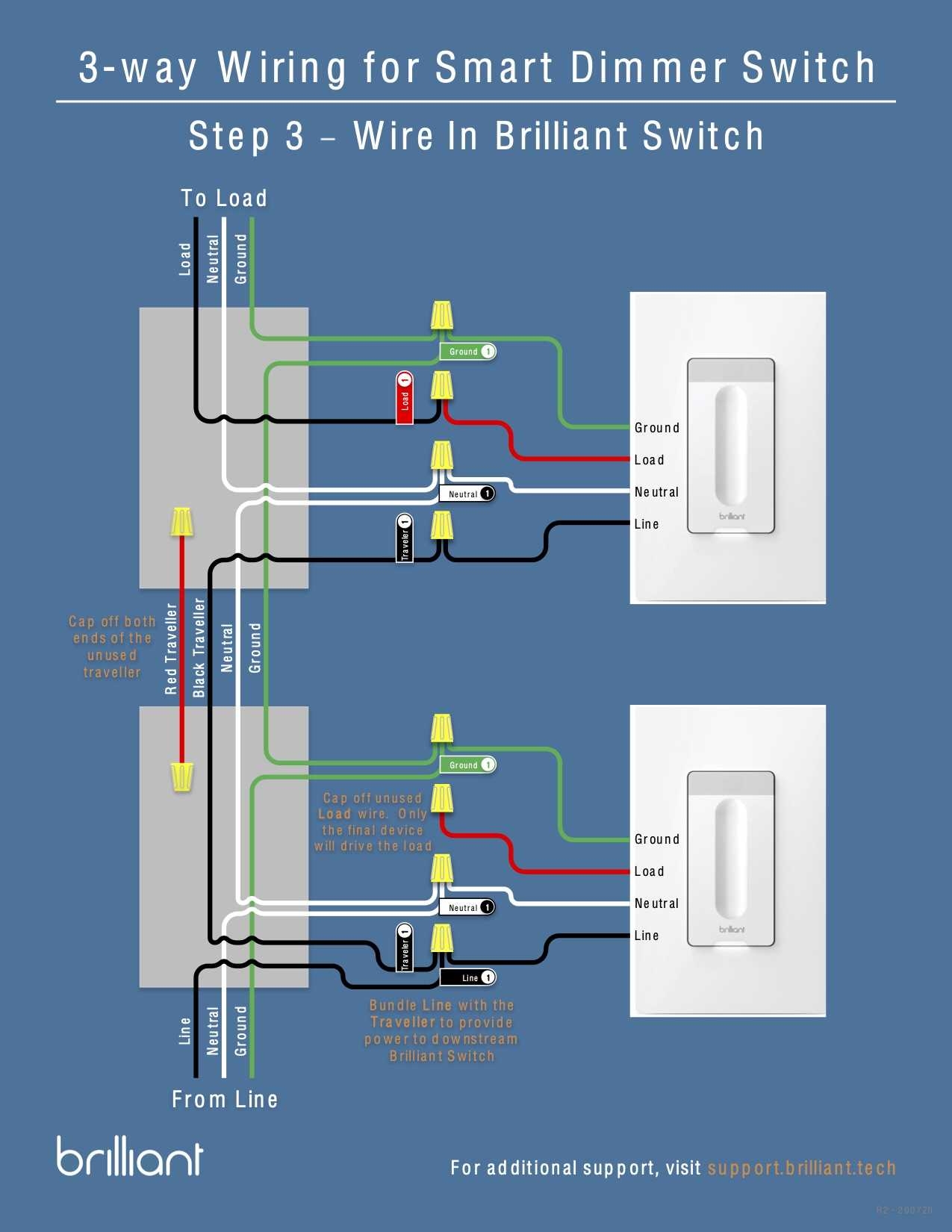

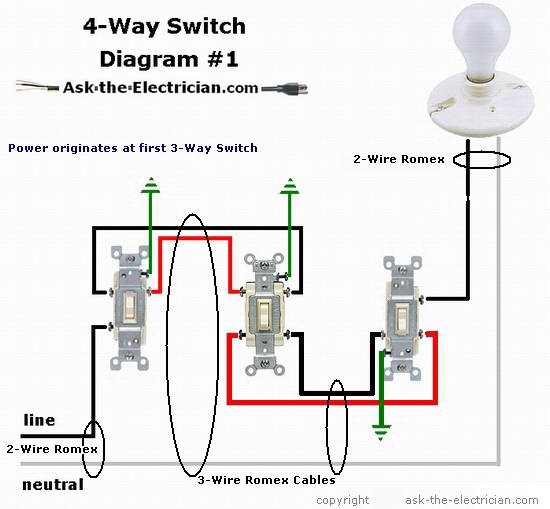

Here is a simple 3-way wiring switch diagram to help you visualize how the connections should be made. Start by identifying the two switches and the light fixture. The diagram will show you which wires should be connected to each terminal on the switches. Remember to turn off the power before working on any electrical wiring to prevent accidents.

Begin by connecting the hot wire from the power source to the common terminal of the first switch. Then, connect the traveler wires to the other two terminals on the first switch. Next, run another set of traveler wires between the two switches, connecting them to the corresponding terminals. Finally, connect the traveler wires from the second switch to the light fixture, completing the circuit.

Once you have successfully wired the 3-way switches according to the diagram, you can test the setup by flipping the switches and observing the light fixture. If everything is connected correctly, you should be able to control the light from both switches. If the light does not turn on, double-check your connections and make sure everything is secure.

In conclusion, understanding a 3-way wiring switch diagram is essential for installing a 3-way switch in your home. By following the diagram and making the correct connections, you can easily control a light fixture from multiple locations. Remember to always exercise caution when working with electrical wiring and consult a professional if you are unsure about any step.
